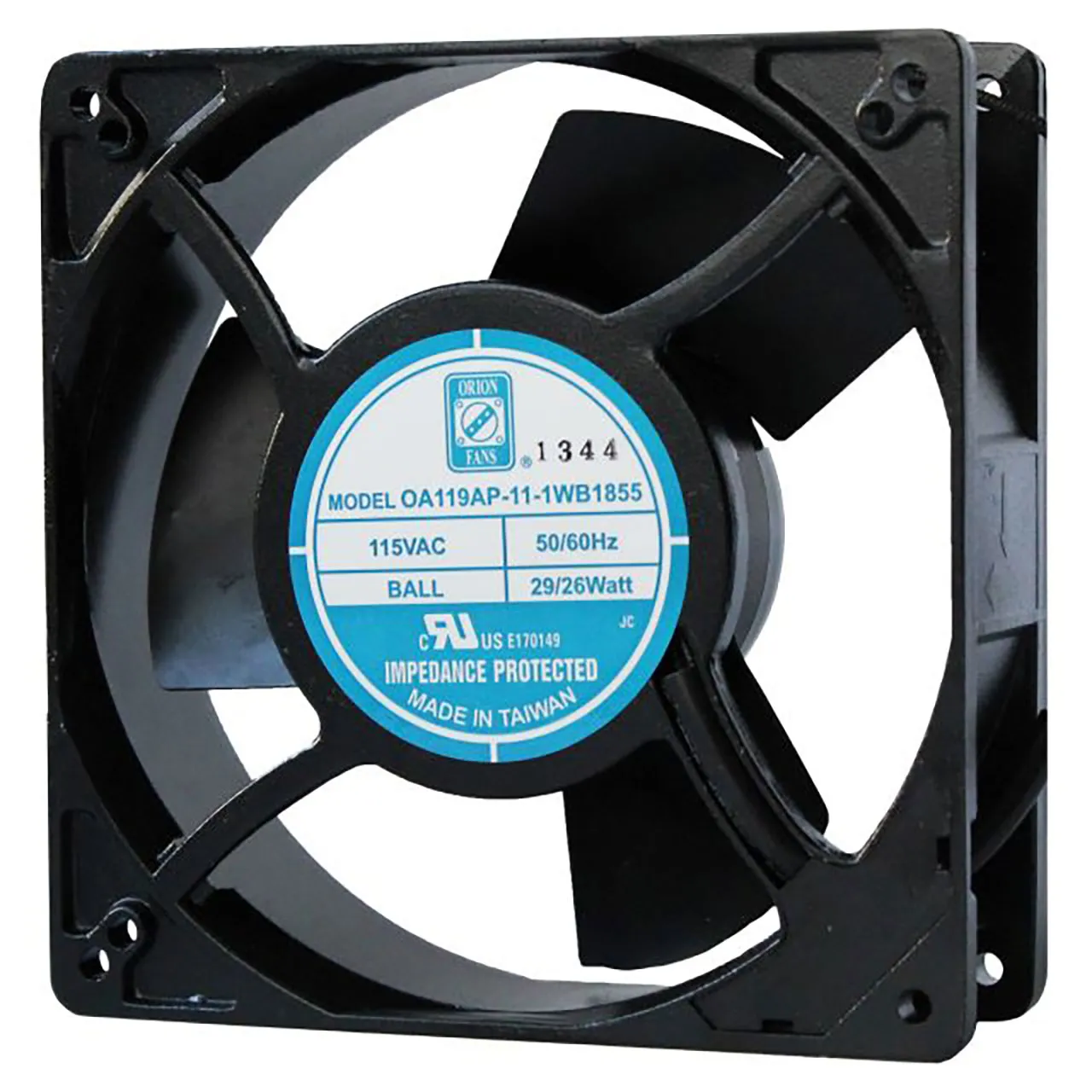

127 mm x 127 mm x 38 mm Tube Axial Fan 115 VAC Dual Ball Bearing 105CFM 42dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 127 mm
  • Width: 127 mm
  • Depth: 38 mm
  • Air Flow (CFM): 105
  • Bearing: Dual Ball
  • Current Rating: 173 mA
  • Power Rating: 20 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 42
  • Termination: Terminals
  • Product Type: 127mm x 127mm AC Fan
  • Speed: 2400 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.25 in.
  • Additional Features: Aluminum Frame, Plastic Impeller
  • Motor Drive Type: Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 2400 rpm.

,
