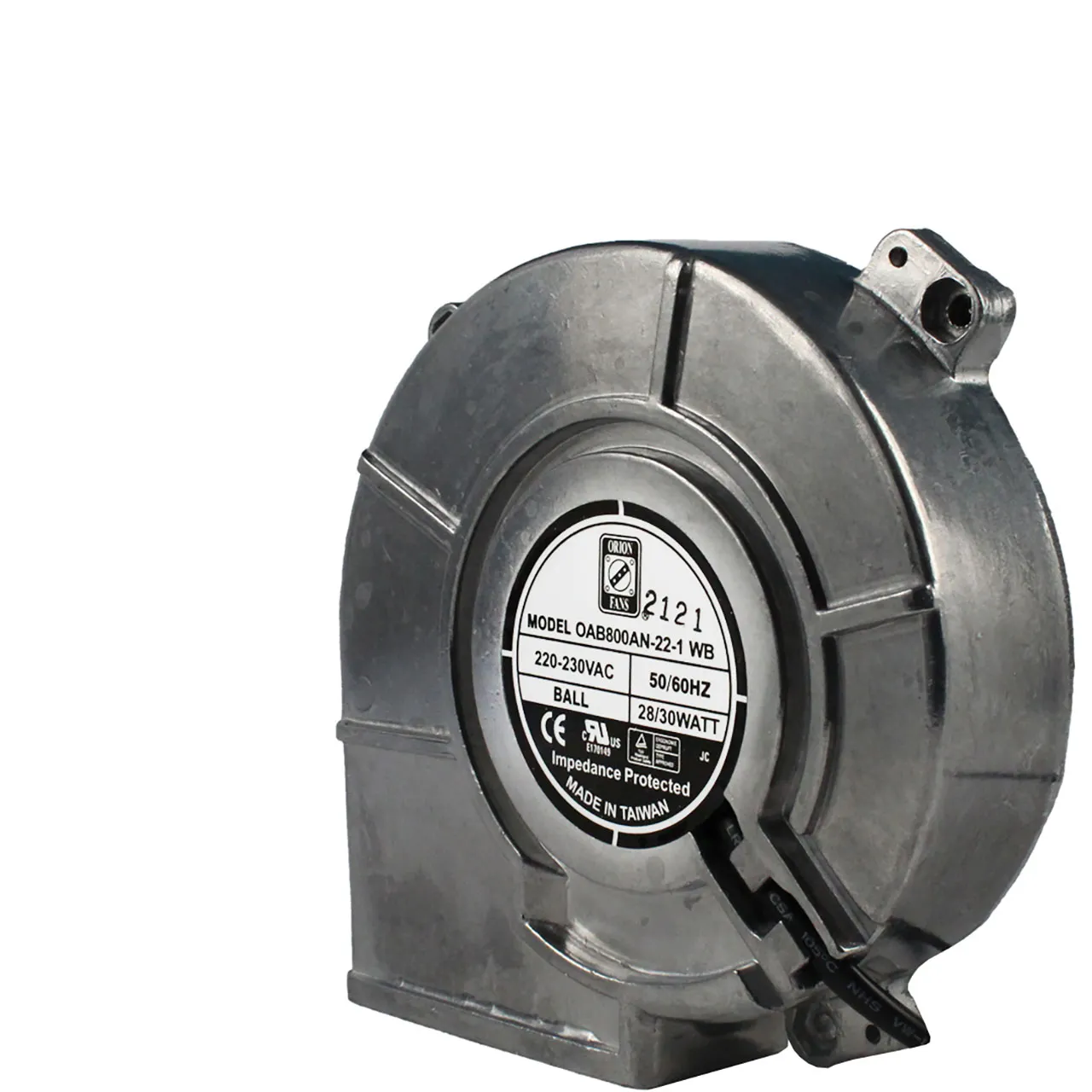

125mm x 126mm x 39mm Blower Fan 220 VAC Dual Ball Bearing 22CFM 39dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$32.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$32.950	-	-
10+	$30.950	2.00	6.07%
50+	$28.950	4.00	12.14%

Features

Voltage Rating: 220 VAC
Height: 126mm
Width: 125mm
Depth: 39mm
Air Flow (CFM): 22
Bearing: Dual Ball
Current Rating: 55 mA
Power Rating: 12 W
Agency Approvals: UL, CUL, TUV, CE
Noise (dBA): 39
Termination: 12" Wires
Product Type: 126mm x 125mm Blower Fan
Speed: 2100 rpm
Maximum Pressure: 0.35 in.
Additional Features: Aluminum Die Cast Shell, UL94V-0 Impeller
Motor Drive Type: Shaded Pole, Inner Rotor, Single Phase, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the blower fan is designed to operate up to 2100 rpm.
