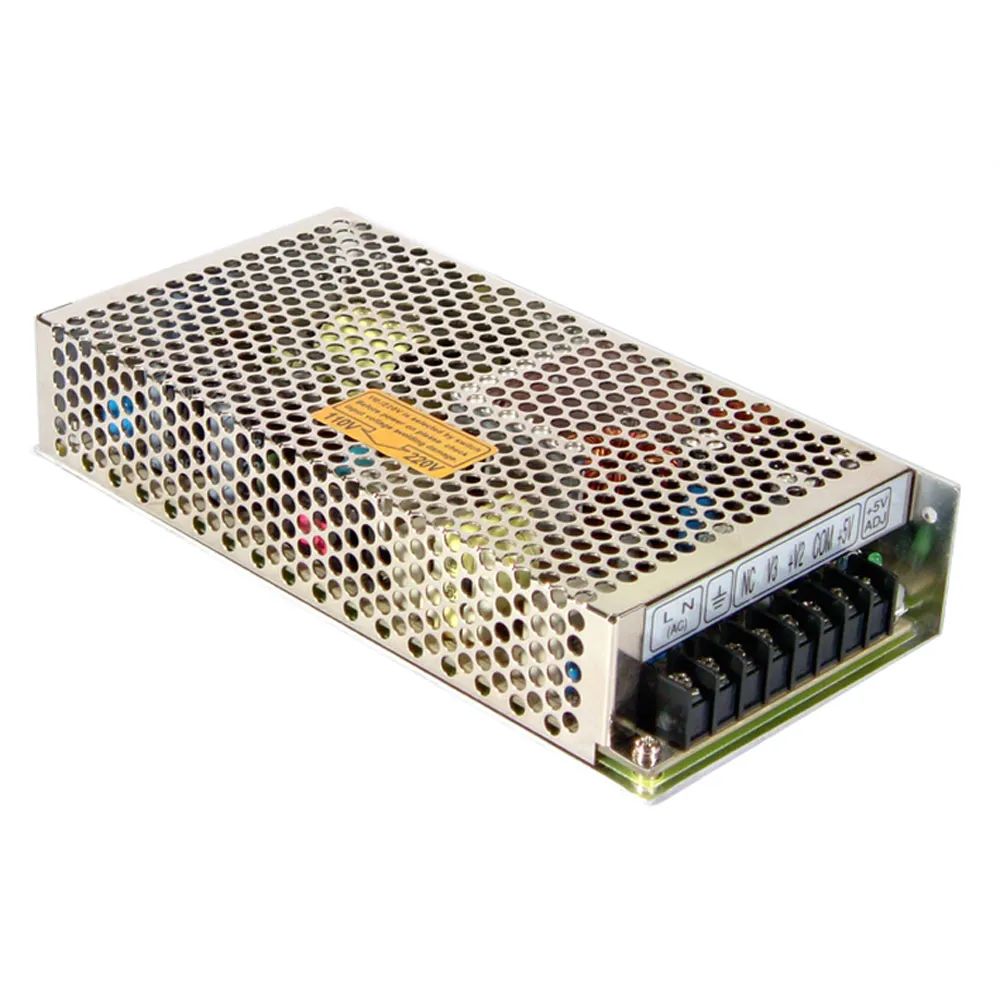

125W Dual Output Regulated Switching Power Supply


Channel 1: 24 Volts @ 4.6 Amps
Channel 2: 5 Volts @ 3 Amps

Features:

  • Input voltage range: 88-132VAC/176-264VAC switch-selectable @ 47-63Hz, or 248-373VDC
  • Efficiency: 83%
  • Protections: Short circuit / Overload / Over voltage
  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 seconds
  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 5G vibration test
  • Size: 7.8"L x 3.9"W x 1.5"H
  • Weight: 1.5 lbs.

    • Product Identification

    Type:Switch Selectable SMPS
    Product Type:AC to DC Power Supply
    Manufacturer Series:RID-125

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Multiple Output
    Color:Silver
    Height:1.5 in.
    Width:3.9 in.
    Length:7.8 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:88 VAC to 132 VAC, 176 VAC to 264 VAC
    Maximum Input Current:3 A

    Output

    Number of Outputs:2
    Output Voltage (Channel 2):5 VDC
    Output Current (Channel 2):3 A
    Additional Output Voltages (VDC):5
    Output Voltage (Channel 1):24 VDC
    Output Connector Type:Screw Terminal Block
    Output Voltage:24 VDC
    Output Current (Channel 1):4.6 A
    Output Current:4.60 A

    Features

    Minimum Isolation Voltage:3000V
    Power Rating:125.4 W
    ,
