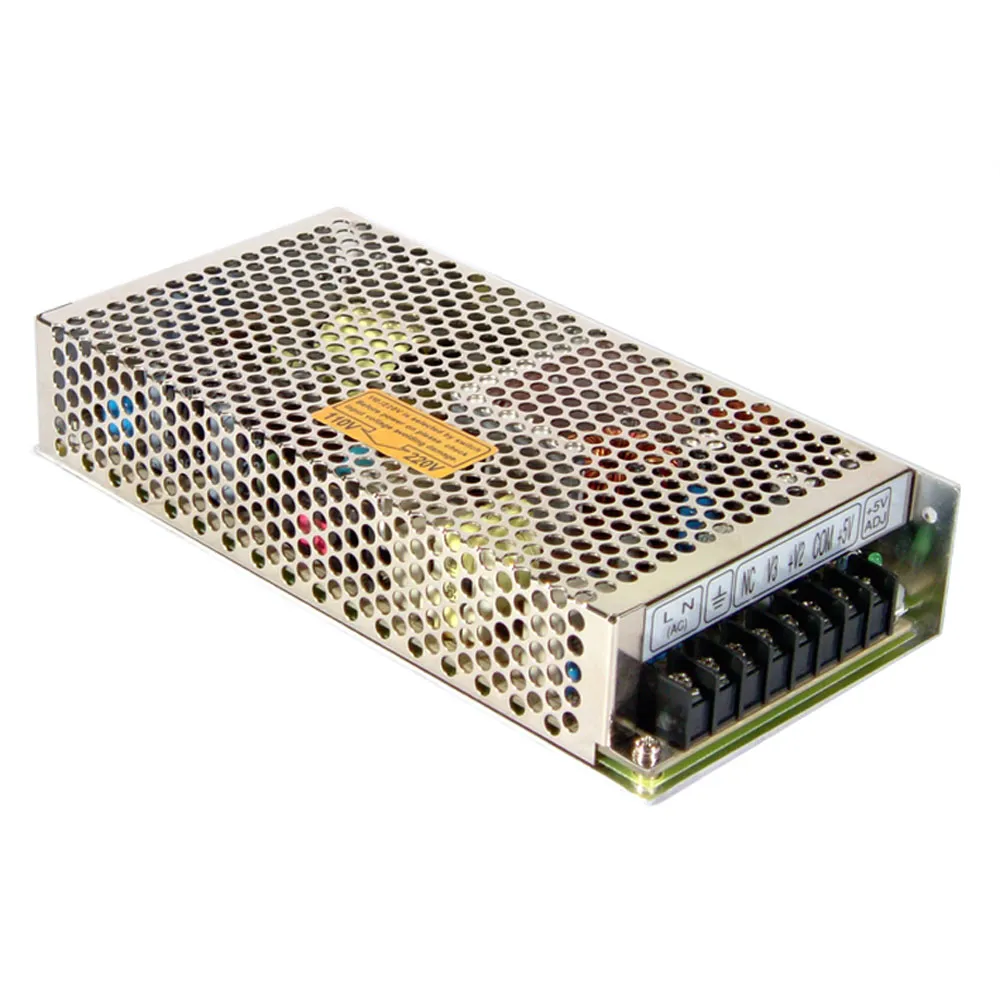

125W Dual Output Regulated Switching Power Supply

Channel 1: 12 Volts @ 9.2 Amps
Channel 2: 5 Volts @ 3 Amps

Features:

  • Input voltage range: 88-132VAC/176-264VAC switch-selectable @ 47-63Hz, or 248-373VDC
  • Efficiency: 80%
  • Protections: Short circuit / Overload / Over voltage
  • AC input range selectable by switch
  • Withstand 300VAC surge input for 5 seconds
  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 5G vibration test
  • Size: 7.8"L x 3.9"W x 1.5"H
  • Weight: 1.5 lbs.

Product Identification

Type:Switch Selectable SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:RID-125

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 132 VAC, 176 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:2
Output Voltage (Channel 2):5 VDC
Output Current (Channel 2):3 A
Output Voltage (Channel 1):12 VDC
Additional Output Voltages (VDC):5
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):9.20 A
Output Current:9.20 A

Features

Minimum Isolation Voltage:3000V
Power Rating:125.4 W
,
