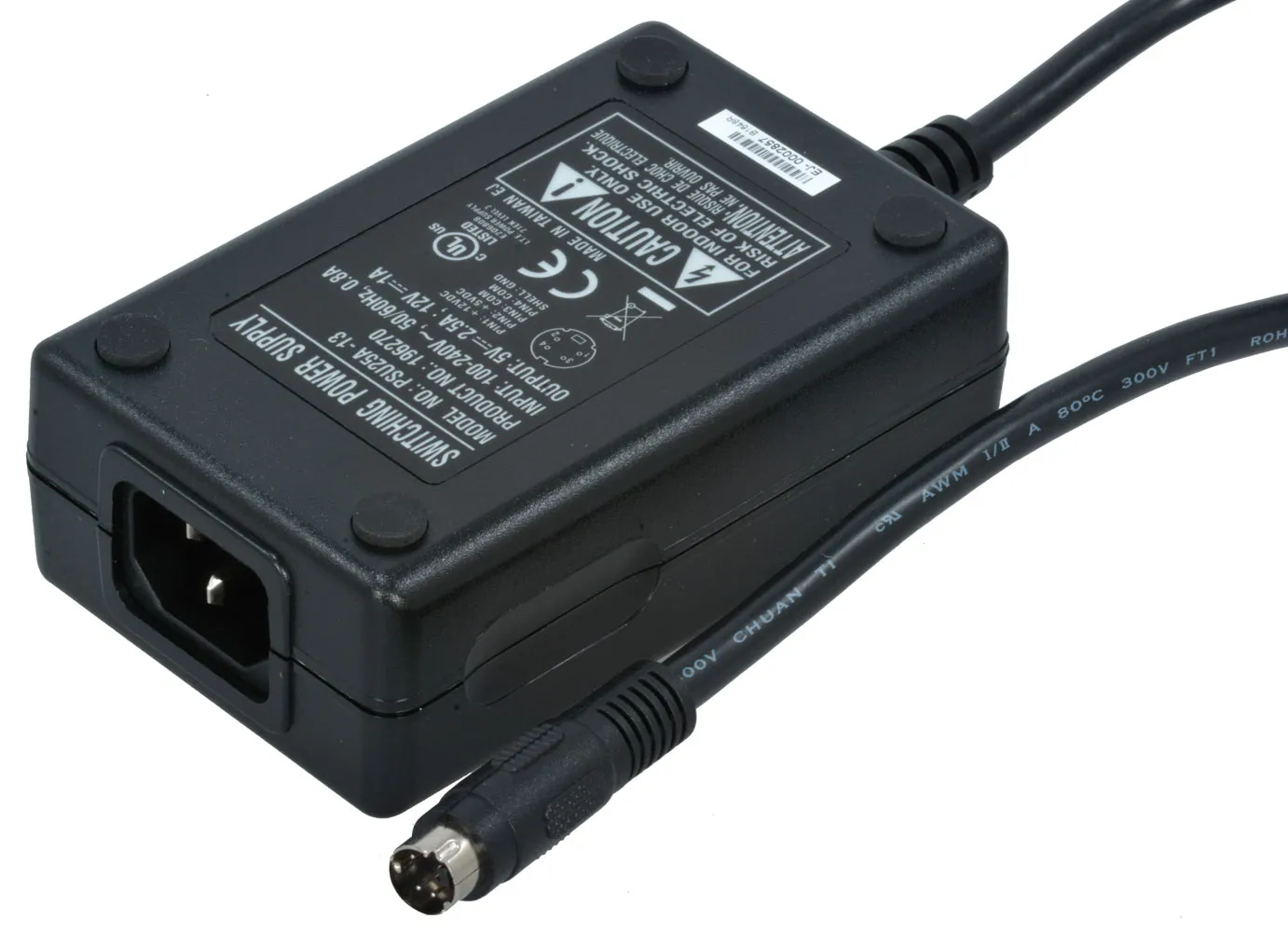

3-Wire AC Input Regulated AC-to-DC Switching Dual Output Table-Top Power Supply

Channel 1: 5 Volts @ 2.5 Amps
Channel 2: 12 Volts @ 1 Amp

Features:

  • Output connector: 4-pin Mini DIN male
  • Input: 100-240VAC @ 47-63Hz
  • Size: 4.2"L x 2.6"W x 1.4"H
  • Weight: 1.2 lbs.
  • Case color: Black
  • DC output cord length: 6 feet
  • AC input cord length: 4 feet
  • Agency approvals: UL/CUL/CE
  • Energy Efficiency: Level 3

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:ReliaPro

    Compliance

    Agency Approvals: CE, CUL, UL

    Dimensions & Appearance

    Style:Desktop
    Height:1.4 in.
    Width:2.6 in.
    Length:4.2 in.

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:40°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:100 VAC to 240 VAC
    Maximum Input Current:0.8 A

    Output

    Number of Outputs:2
    Output Connector Diameters:DIN-4 Male
    Output Connector Type:DIN-4 Male
    Additional Output Voltages (VDC):12 VDC
    Output Voltage:5 VDC
    Output Current:2.50 A

    Features

    Polarity:N/A
    AC Power Cord:Included
    Minimum Isolation Voltage:4242V
    Efficiency:65%
    Power Rating:25 W
    ,
