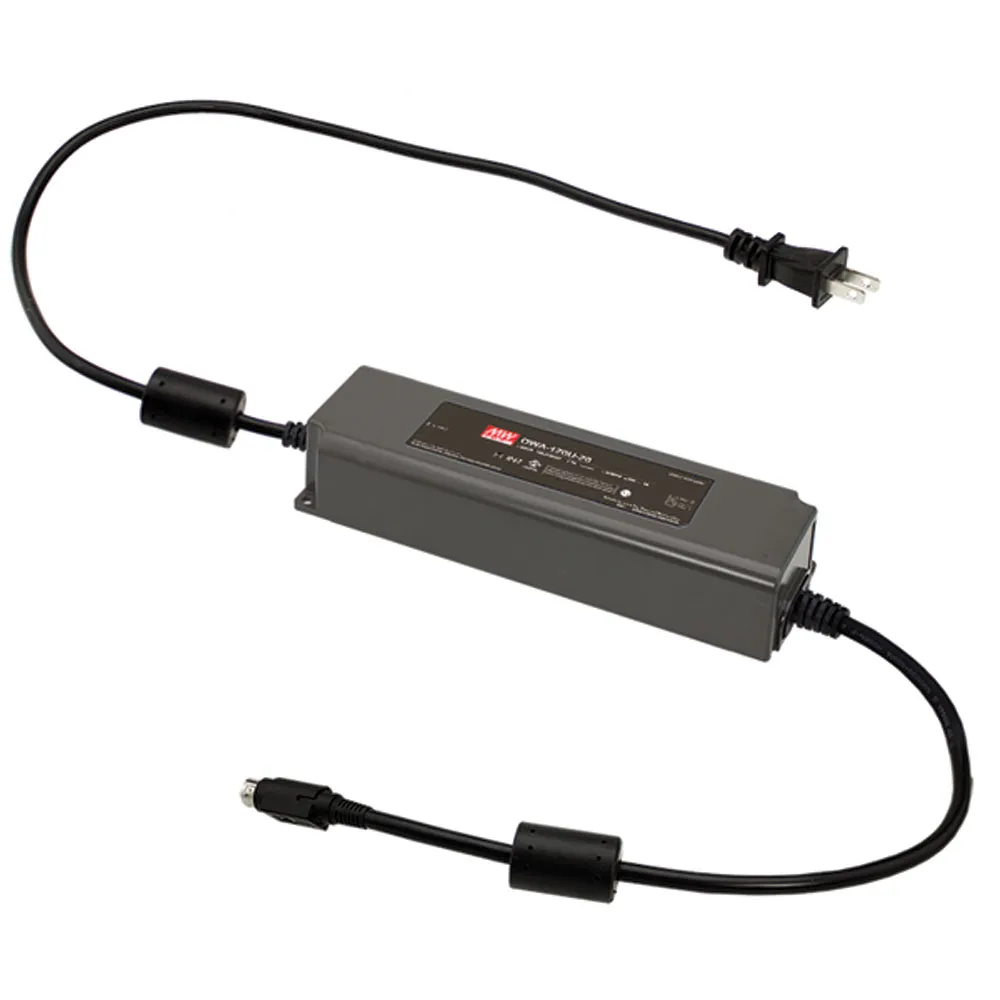

124.2W 2.3A 54V Single Output Waterproof Switching Power Supply

Specifications

  • Output Power (W): 124.2
  • DC Voltage (V): 54
  • Rated Current (A): 2.3
  • Ripple & Noise (mV p-p): 350
  • Efficiency: 91%
  • Line Regulation (%): ±0.5
  • Load Regulation (%): ±0.5
  • Size (L x W x H) inches: 7.48 x 2.40 x 1.45
  • America type, 90 - 264VAC
  • Universal AC input/Full range
  • Suitable for dry, damp, wet locations
  • Built in PFC function
  • Protections: short circuit, over voltage, overload, over temperature
  • Cooling by free air convention
  • 5 years warranty

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:OWA-120

    Compliance

    Agency Approvals: CUL, FCC, UL

    Dimensions & Appearance

    Style:Desktop
    Color:Black
    Height:1.48 in.
    Width:2.48 in.
    Length:7.52 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:1.3 A

    Output

    Number of Outputs:1
    Output Connector Diameters:DIN-4 Male
    Output Connector Type:DIN-4 Male
    Output Voltage (Channel 1):54 VDC
    Output Current (Channel 1):2.30 A
    Output Voltage:54 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:2.30 A

    Features

    Minimum Isolation Voltage:3750V
    Polarity:N/A
    Product Note:Level VI
    AC Power Cord:Included
    IP Rating:IP67
    Efficiency:89.5%
    Power Rating:124.2 W
    ,
