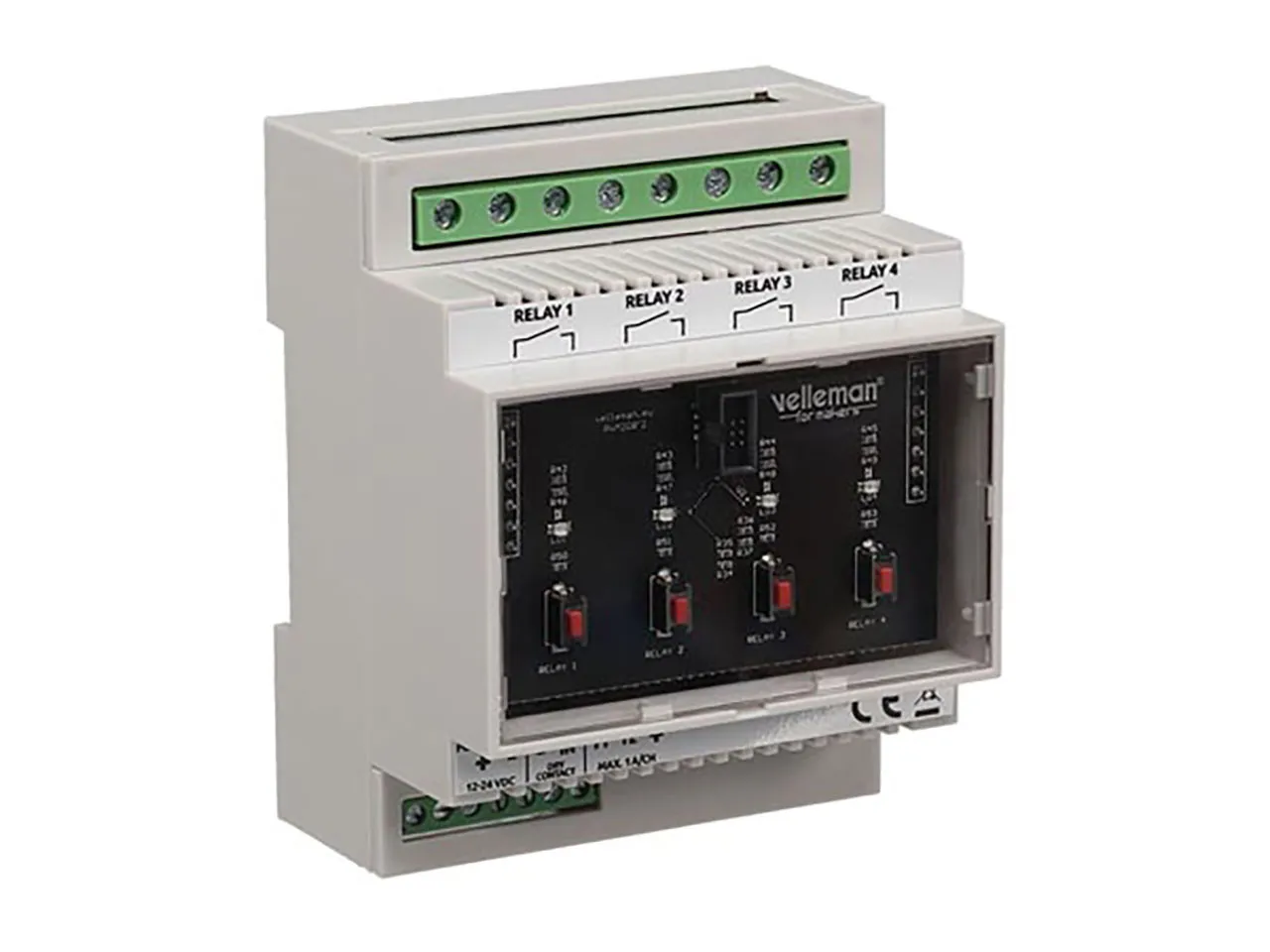

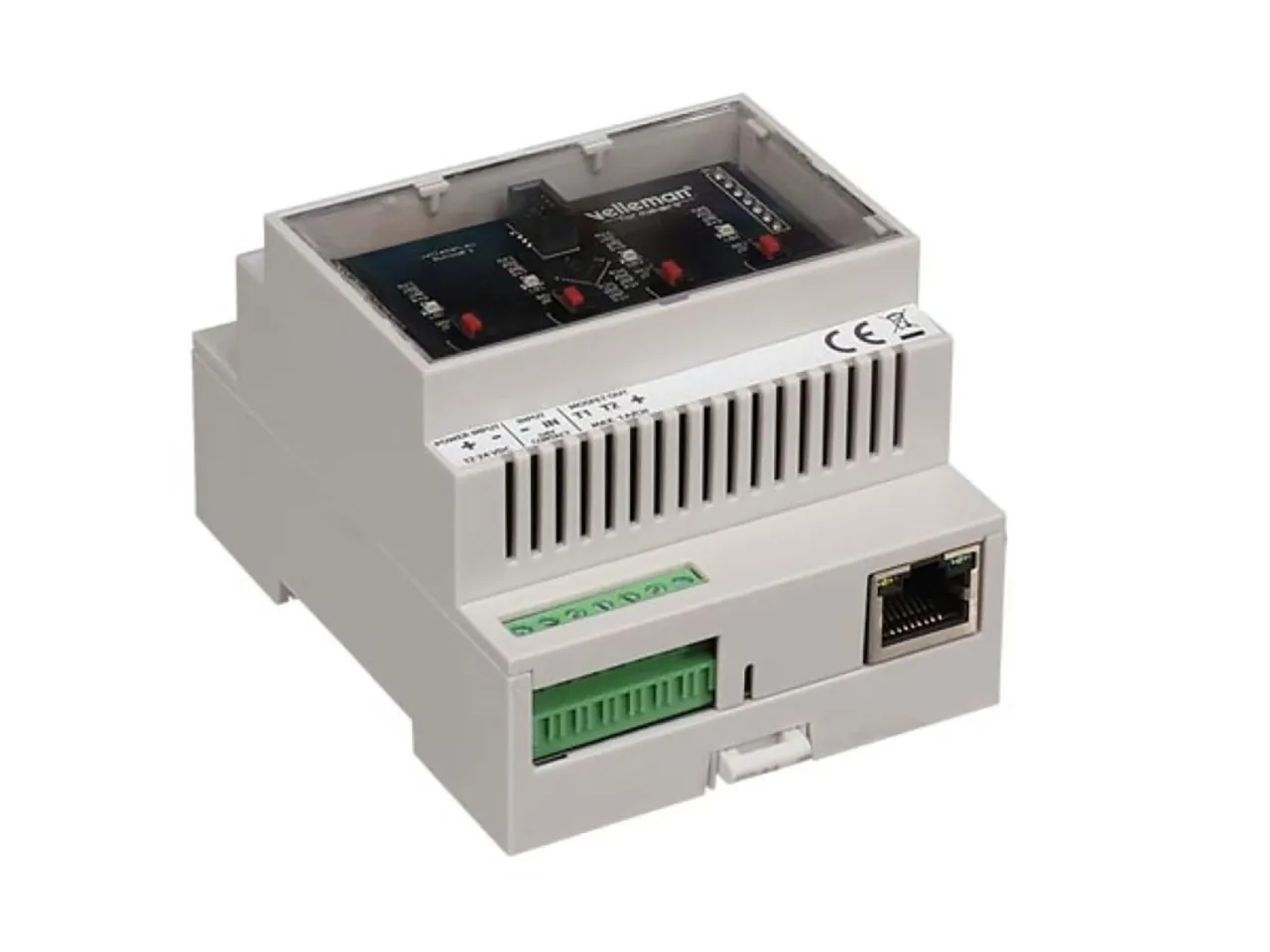

12-24 VDC Din Rail WLAN Relay Card 16A @ 230V

Features

• control up to 4+2 devices / appliances remotely from any location worldwide
• on / off / pulse (500 ms - 60 s), timer (1 - 720 min) & scheduler function per channel
• controllable by using a free app for your smartphone
• DIN rail chassis for industrial mounting
• expandable with a special 8 relays slave module
• e-mail notifications possible

Overview

This new DIN rail WLAN relay card combines the strength of four robust relays that you can control via smartphone.

Specifications

• power supply: 12-24 VDC (min 12 W)
• 4 relay contacts: 16 A @ 230 V~ (peak)
• 2 transistor outputs: 1 A @ 12-24 VDC
• inputs: 1 digital input (open collector compatible)
• wireless standard: Wi-Fi 2.4 GHz
• dimensions (W x H x D): 72 x 90 x 58 mm
• chipset: ESPRESSIF ESP32-WROVER-I
