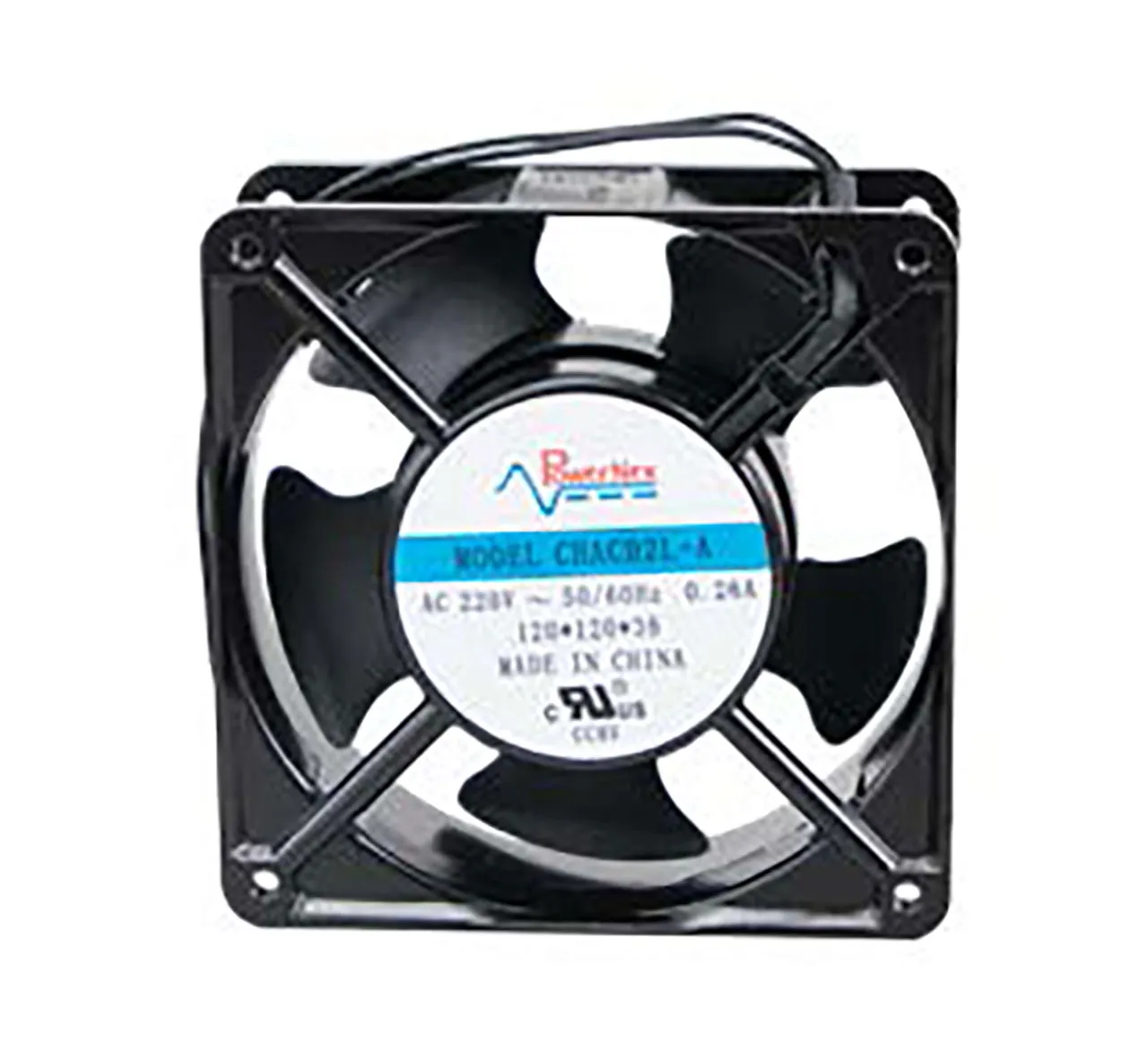

120x120x38mm Fan 220VAC Dual Ball Bearing 92 CFM 47dB 12" Wires
Features
- Wide operating environment temperature: -20°C to +70°C.
- Direct driven by AC power, no need for additional peripheral drivers
- Aluminum alloy frame, sturdy and durable structure.
Overview
120x120x38mm Fan 220VAC Dual Ball Bearing 92 CFM 47dB 12" Wires
Product Identification
Product Type:AC Fan
Additional Feature:Die Cast Aluminum Frame, Plastic Impeller, Class B Insulation
Compliance
Agency Approvals: CUL, UL
Dimensions & Appearance
Depth:38 mm
Width:120 mm
Height:120 mm
Features
Bearing:Dual Ball
Maximum Pressure:0.27 in.
Noise (dBA):47
Speed:2500 rpm
Termination:12" Wires
Voltage Rating:230 VAC
Air Flow (CFM):92
Power Rating:20 W
Current Rating:120 mA
