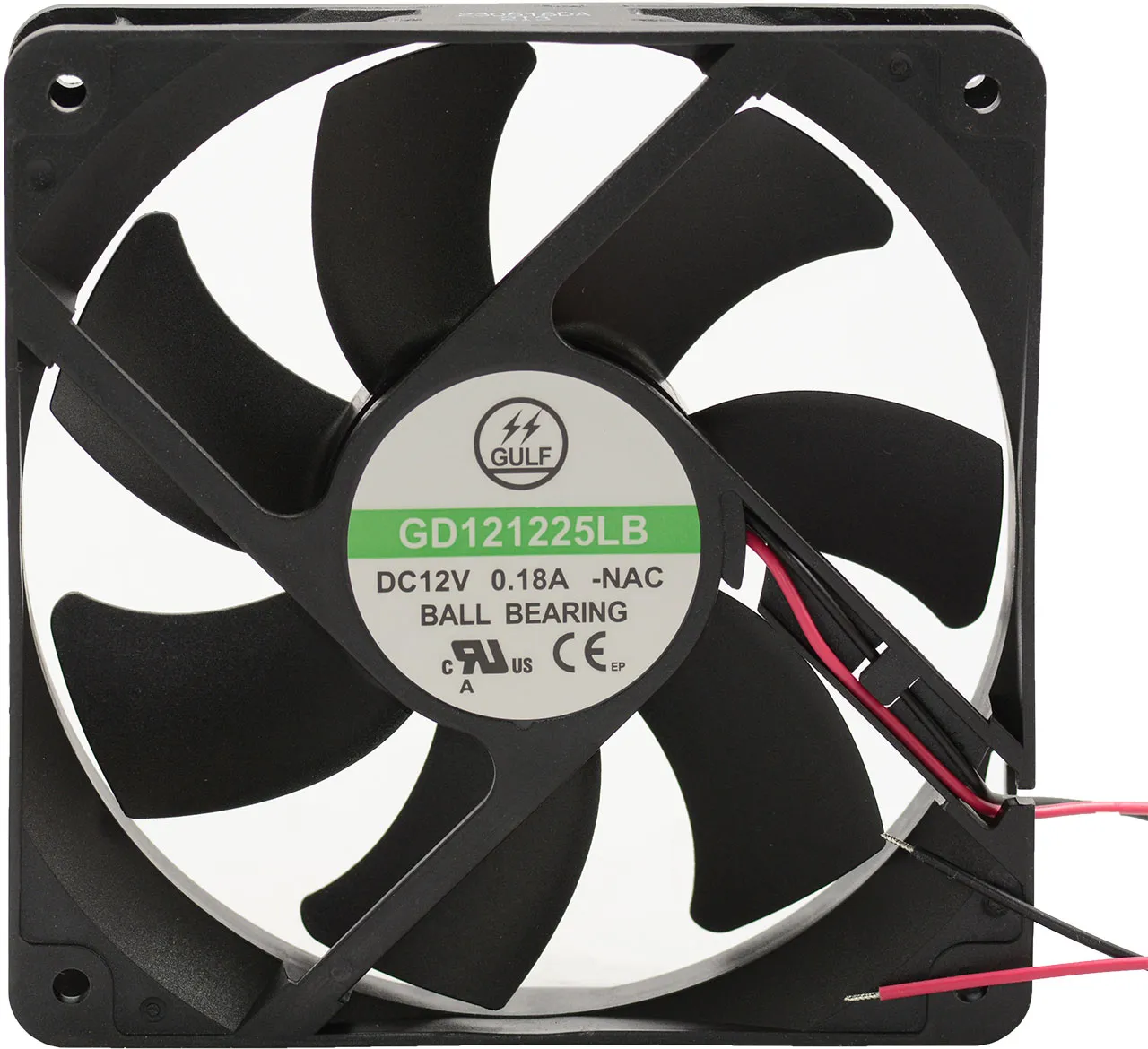

120x120x25mm Tubeaxial Fan Vapo-Bearing 75 CFM 12 VDC

Features

• Voltage - Rated: 12VDC
• Size / Dimension: Square - 120 mm L x 120 mm H
• Width: 25 mm
• Air Flow: 75 CFM (2.10 m³/min)
• Static Pressure: 0.160 in H2O (39.8 Pa)
• Bearing Type: Vapo-Bearing™
• Fan Type: Tubeaxial
• Features: Auto Restart
• Noise: 34 dB(A)
• Power (Watts): 1.9 W
• RPM: 2200 RPM
• Termination: 2 Wire Leads
• Operating Temperature: 14 to 158°F (-10 to 70°C)
• Approval Agency: CUR, TUV, UL
• Weight: 0.357 lb
• Current Rating (Amps): 0.161 A
• Voltage Range: 6 to 13.8VDC
• aterial - Blade: Polybutylene Terephthalate (PBT)

Overview

The Vapo-Bearing system of the tubeaxial fan is designed to operate up to 2200 RPM with a Polybutylene Terephthalate frame.
