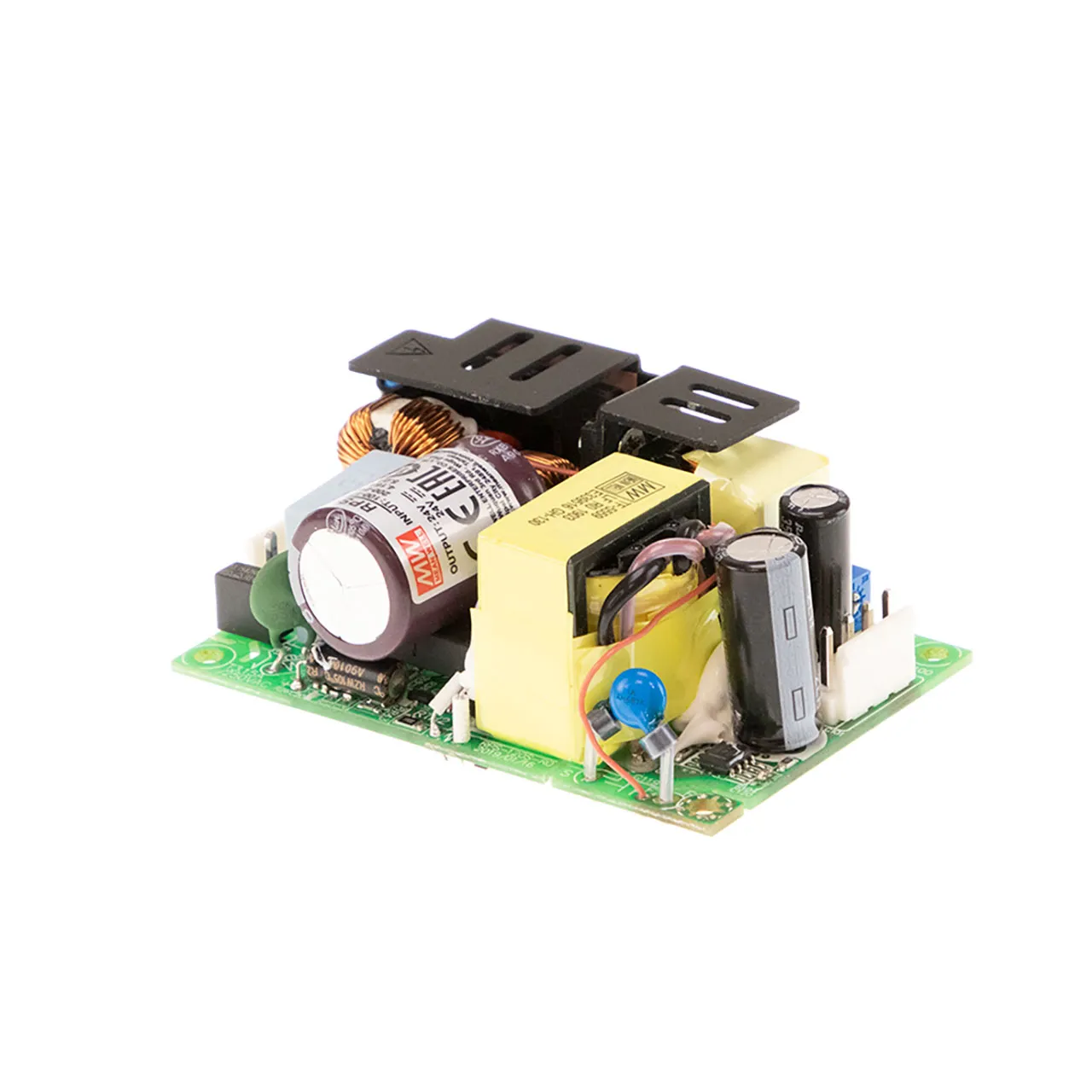

120W 48V 2.5A 3x2 Inch Reliable Green Medical Open Frame Power Supply

Features

• 3" x 2" compact size
• 120W convection, 150W peak (10 sec.)
• Medical safety approved (2xMOPP) according to ANSI.AAMI ES60601-1 and IEC/BS EN/EN60601-1
• Suitable for BF application with appropriate system consideration
• EMI for both Class I & Class II configurations
• -30°C to +85deg;C wide range operating temperature
• No load power consumption < 0.3W
• Extremely low leakage current
• Protections: Short circuit, overload, over voltage, over temperature
• Operating altitude up to 4000 meters
• 3-year warranty

Output Specifications

• DC Voltage: 48 V
• Current: 2.5 A (Covection); 3.125 A (Peak, 10 sec.)
• Rated Power: 120 W (Convection); 150 W (Peak, 10 sec.)

Overview

The RPS-120S is a 120W highly reliable green PCB type medical power supply with a high power density on a 3" x 2" footprint. It accepts 85 to 264 VAC input and offers output voltage of 48 VDC. The working efficiency is up to 93.5% and the extremely low no load power consumption is down below 0.3W. The RPS-120S is able to be used for both Class I (with FG) and Class II (no FG) system designs. The extremely low leakage current is less than 150micro;A. In addition, it conforms to the international medical regulations (2xMOPP) and EMC BS EN/EN55011, perfectly fitting all kinds of BF-rated "patient contact" medical system equipment.

Applications

• Oral irrigator
• Hemodialysis machines
• Medical monitors
• Sleep apnea devices
• Pumps machine
