120MHz 2Ch Advanced-Series Arbitrary Waveform Generator 1.25GSa/s 64Mpts

Features

• 120MHz, 2CH, Sample Rate: 1.25GSa/s, Memory Depth: 64Mpts, Vertical Resolution: 16-bits, Modulations: AM, FM, PM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM, DSB-AM. USB Host/Device, LAN, 10MHz Ext In, 10MHz Ext Out, Ext. Analog Mod In, Ext Mod/Trigger Out, Sync Out, SCPI Control, 4.3in Touchscreen TFT display
• Channels: 2Ch
• Memory Depth: 64Mpts
• Display Size: 4.3 in.
• Warranty: 3 years
• Interface: USB, LAN, 10MHz In/Out, Trigger, Mod In
• Prop65: No
• Reach: No

Overview

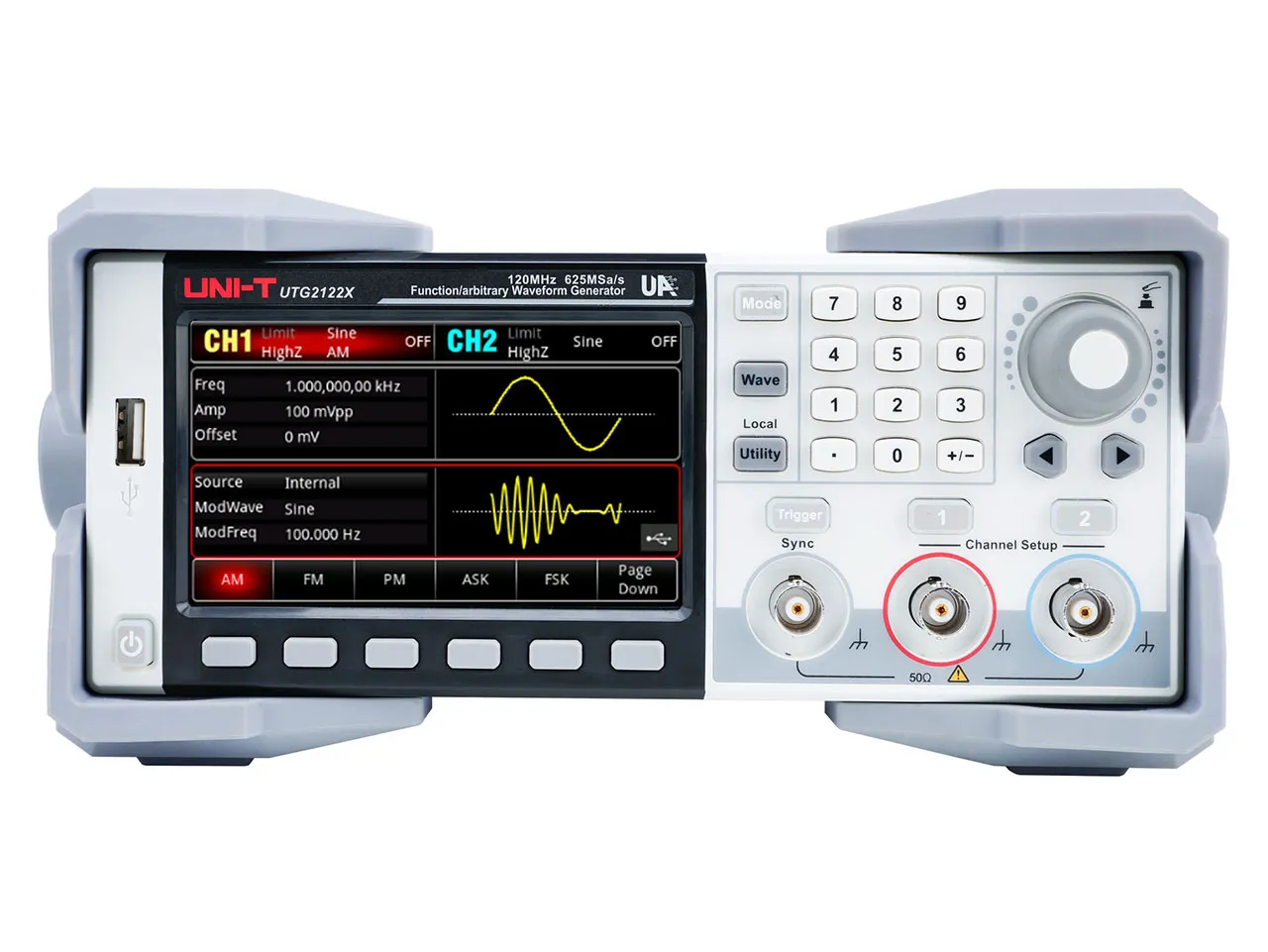

The UNI-Trend UTG2122X Advanced-Series aribtrary waveform generator is an affordable and stable 120MHz source for your test bench. It’s your gateway to meeting the demands of complex and extensive applications, both now and in the future! CE, cETLus, UKCA certfied.

Technical Specifications

• Other Accessories: BNC straight-through cable, BNC to alligator clip cable
• Accessories Universal Accessories: Power cord, USB2.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• T Screen: Yes
• Frequency: 120MHz
• Vertical Resolution: 16 Bits
• Sweep Modes: Linear, Logarithmic
• Frequency Counter: 100mHz - 200MHz
• Built In Arb: 200
• Square Pulse Hz : 50MHz
• Modulation Types: AM, FM, FSK, PM, QAM, ASK, PSK, BPSK, QPSK, OSK, PWM, SUM, DSB-AM, 3FSK, 4FSK
• Waveforms: Sine, Square, Ramp, Pulse, Harmonic, Noise, DC, Arbitrary, PRBS, Expression
• Sample Rate: 1.25GSa/s
