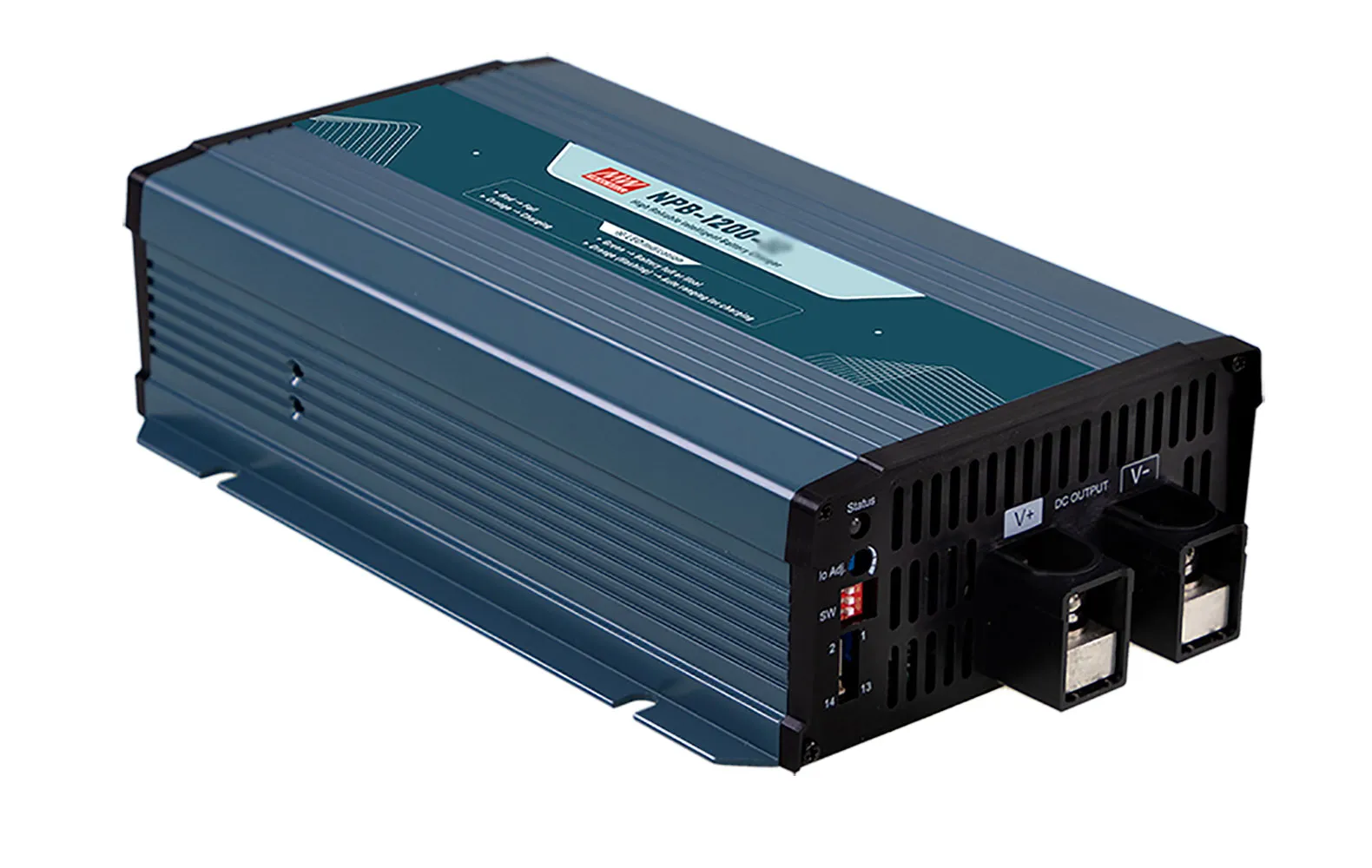

1209.6W 27.6V 36A Ultra-Wide Output Range Intelligent Battery Charger

Find out more about MEAN WELL Industrial Grade, Reliable and Durable Charger and Inverters.

Features

  • Auto-ranging with ultra-wide charging voltage (see below and datasheet for details)
  • Built-in CANBus protocol for control, setting and monitoring
  • Programmable 2/3 stage and charging curve via SBP-001 (sold separately)
  • Manual setting for 2/3 stage and four built-in charging curves via DIP switch
  • Protections: Short circuit, over voltage, over temperature, battery under voltage, battery reverse polarity (no damage)
  • Built-in PFC function
  • Charger compatible with lead-acid (flooded, Gel, AGM) and li-ion (lithium iron, lithium manganese) batteries
  • Charger OK and Battery Full signal
  • Temperature compensation function to prolong battery life (lead-acid only)
  • Remote ON-OFF control
  • Wide operating temperature: -30°C to 70°C
  • Complies with UL/EN62368-1 and EN60335-1/2-29 (dual certification)
  • 3-year warranty

Specifications

  • Boost Charge Voltage: 28.8 VDC
  • Float Charge Voltage: 27.6 VDC
  • Voltage Adjustable Range: 21 VDC to 42 VDC
  • Output Current (CC): 36 A
  • Max. Power: 1209.6 W
  • Recommended Battery Capacity: 120 AH to 420 AH
  • Input Voltage: 90 VAC to 264 VAC @ 47 Hz to 63 Hz; 12 A (115 VAC)
  • Input Connector: IEC320-C14 (recommend a 3-conductor C13 AC power cord)
  • Size: 9.84"L x 6.22"W x 2.64"H

Applications

  • AGV
  • E-bike, E-scooter, camping car, bus, special vehicles
  • Robotic lawn mower
  • Washing robot
  • Recreation craft, personal yacht or workboat
  • Surveillance system
  • Telecommunication base station
  • Radio system backup solution
  • Equipment or instruments with back-up battery

Product Identification

Product Type:Battery Charger
Additional Feature:High Reliability, Ultra-Wide Output Range, DC Fan, Adjustable Output, For SLA and Li-Ion
Manufacturer Series:NPB-1200

Compliance

Agency Approvals: CB, CE, CUL, DEKRA, EAC, EN, UKCA, UL

Dimensions & Appearance

Color:Gray
Height:2.64 in.
Width:6.22 in.
Length:9.84 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:12 A

Output

Output Connector Type:Screw Terminal Block
Output Range:21 VDC to 42 VDC
Output Voltage:27.6 VDC
Output Current:36 A

Features

PFC Function:Yes
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:93%
Power Rating:1209.6 W
,
