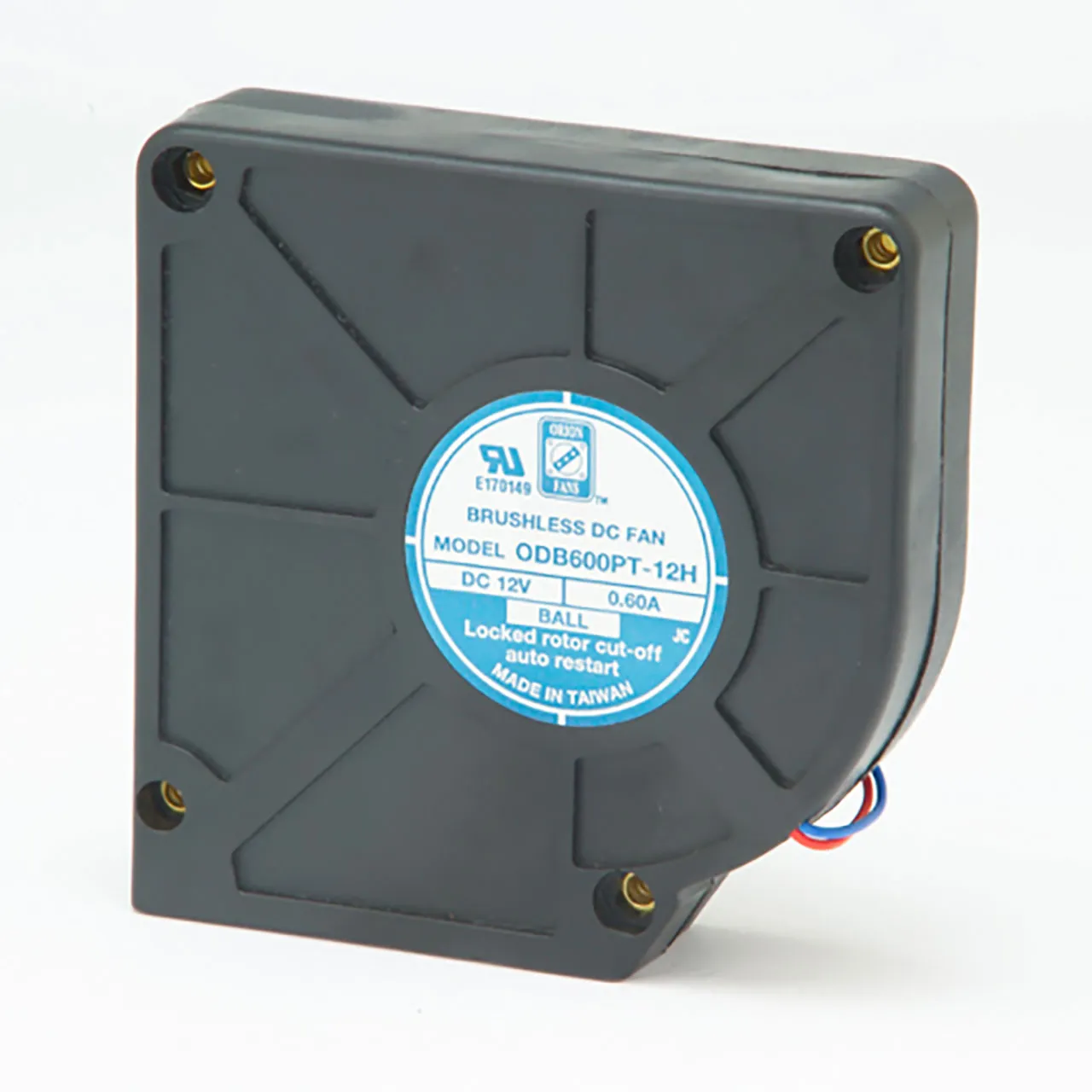

120.5 mm x 120.5 mm x 33 mm Blower Fan 12 VDC Ball Bearing 22CFM 41.8dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 120.5 mm
  • Width: 120.5 mm
  • Depth: 33 mm
  • Air Flow (CFM): 22
  • Bearing: Ball
  • Current Rating: 470 mA
  • Power Rating: 5.64 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 41.8
  • Termination: 12" Wires
  • Product Type: 120.5 mm x 120.5 mm Blower Fan
  • Speed: 2275 rpm
  • Maximum Pressure: 0.42 in.
  • Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the blower fan is designed to operate up to 2275 rpm.

,
