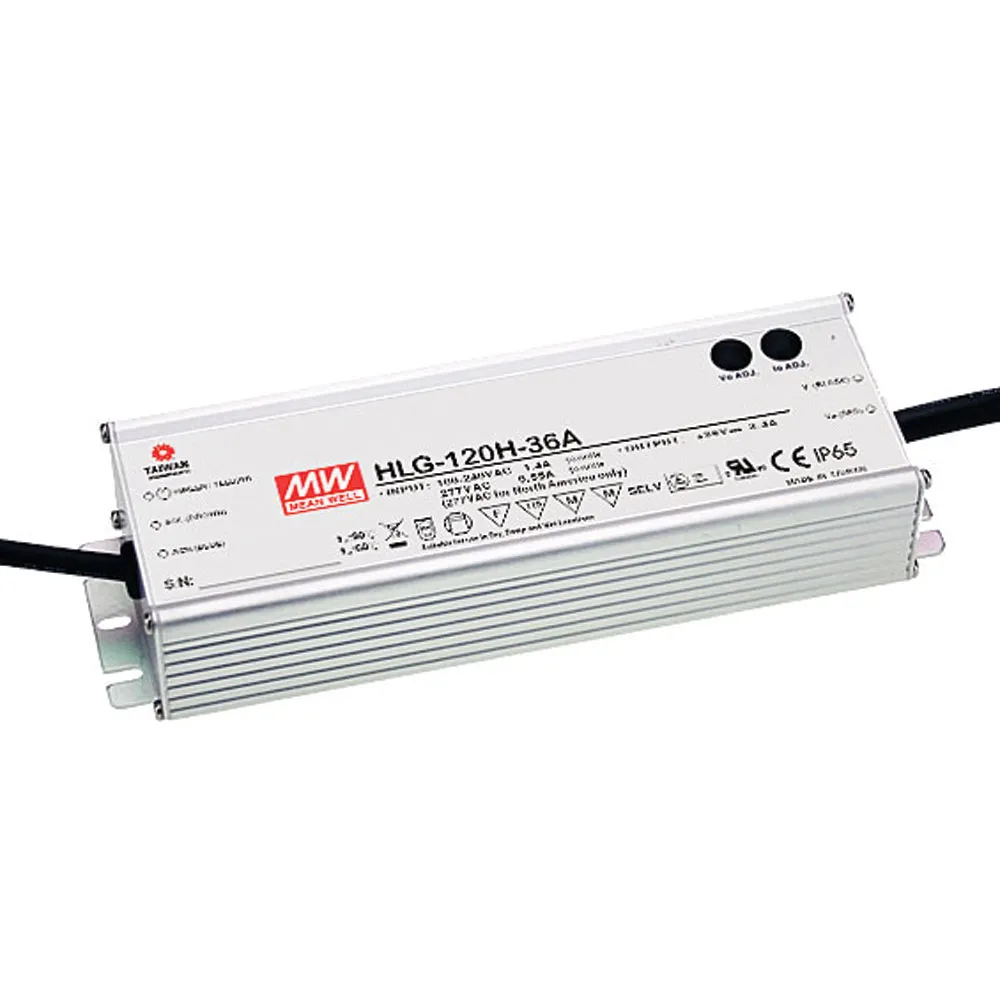

120 Watt Single Output Switching LED Power Supply

120 Watt, 36V @ 3.4A

Features

  • "A" model - Output voltage and constant current level can be adjusted through internal potentiometer
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 92%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • IP65 design for indoor or outdoor installations
  • Class 2 power unit
  • Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires
  • Suitable for LED lighting and street lighting applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • 7 years warranty

      • Overview

Product Identification

Manufacturer Series:HLG-120H
Product Type:Auto Switching SMPS

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.53 in.
Width:2.68 in.
Length:8.66 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:1.4 A

Output

Number of Outputs:1
Output Connector Type:Stripped and Tinned
Output Voltage:36 VDC
Output Range:33 VDC to 40 VDC
Output Current:3.40 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP65
Efficiency:93%
Power Rating:122.4 W
,
