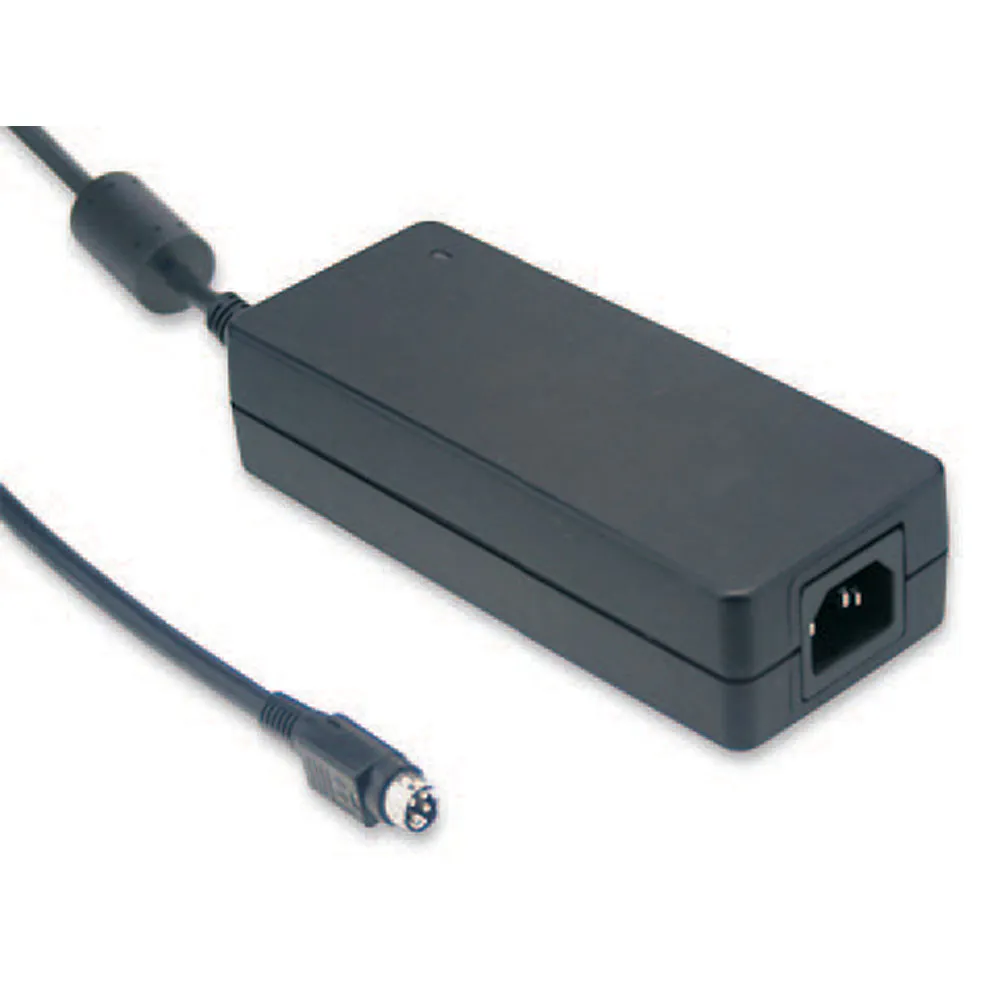

120 Watt AC-DC Power Adaptor with Charger Function

13.6 Volts @ 7.5 Amps

Features:

  • Anderson Connector
  • 2 stage charging characteristic
  • Universal AC input / Full range
  • No load power consumption<0.5W
  • 3 pole AC inlet IEC320-C14
  • Class I power ( with earth pin)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: TUV / UL / CB / FCC / CE
  • 2 years warranty
  • Built-in active PFC function, PF>0.97

Product Identification

Additional Feature:For Lead-Acid, For Li-Ion
Product Type:Battery Charger
Manufacturer Series:GC120

Compliance

Agency Approvals: BC, CB, CE, EAC, FCC, TUV, UKCA, UL

Dimensions & Appearance

Color:Black
Height:1.38 in.
Width:2.64 in.
Length:6.57 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.4 A

Output

Output Connector Type:Anderson Connector
Output Voltage:13.6 VDC
Output Current:7.50 A

Features

PFC Function:Yes
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:86.5%
Power Rating:120 W
,
