120 mm x 120 mm x 43.5 mm Louvered Slide Fan Filter Guard Kit 115 VAC Dual Ball Bearing 67CFM 46dBA Terminals | Jameco.com

Orion Fans

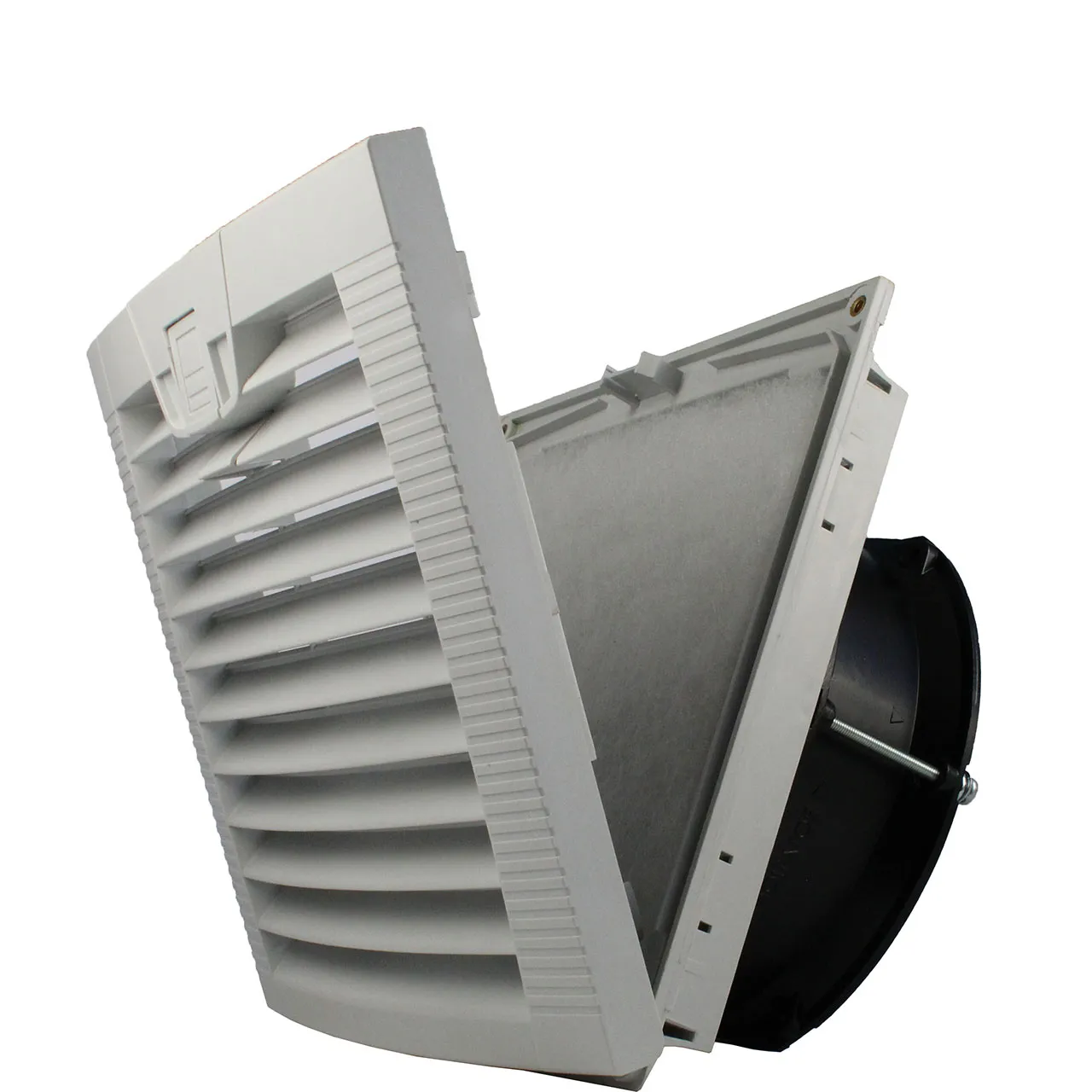

120 mm x 120 mm x 43.5 mm Louvered Slide Fan Filter Guard Kit 115 VAC Dual Ball Bearing 67CFM 46dBA Terminals

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$40.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$40.950	-	-
10+	$38.450	2.50	6.11%
50+	$35.950	5.00	12.21%

120 mm x 120 mm x 43.5 mm Tube Axial Fan 115 VAC Dual Ball Bearing 67CFM 46dBA Terminals

Features

Voltage Rating: 115 VAC
Height: 120 mm
Width: 120 mm
Depth: 43.5 mm
Air Flow (CFM): 67
Bearing: Dual Ball
Current Rating: 160 mA
Power Rating: 12 W
Agency Approvals: UL, CSA, TUV
Noise (dBA): 46
Termination: Terminals
Product Type: Louvered Filter Fan Kit with Fan Installed
Speed: 3100 rpm
IP Rating: IP55
Maximum Pressure: 0.32 in.
Additional Features: Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation, Slide Guard
Motor Drive Type: AC Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 3100 rpm.
