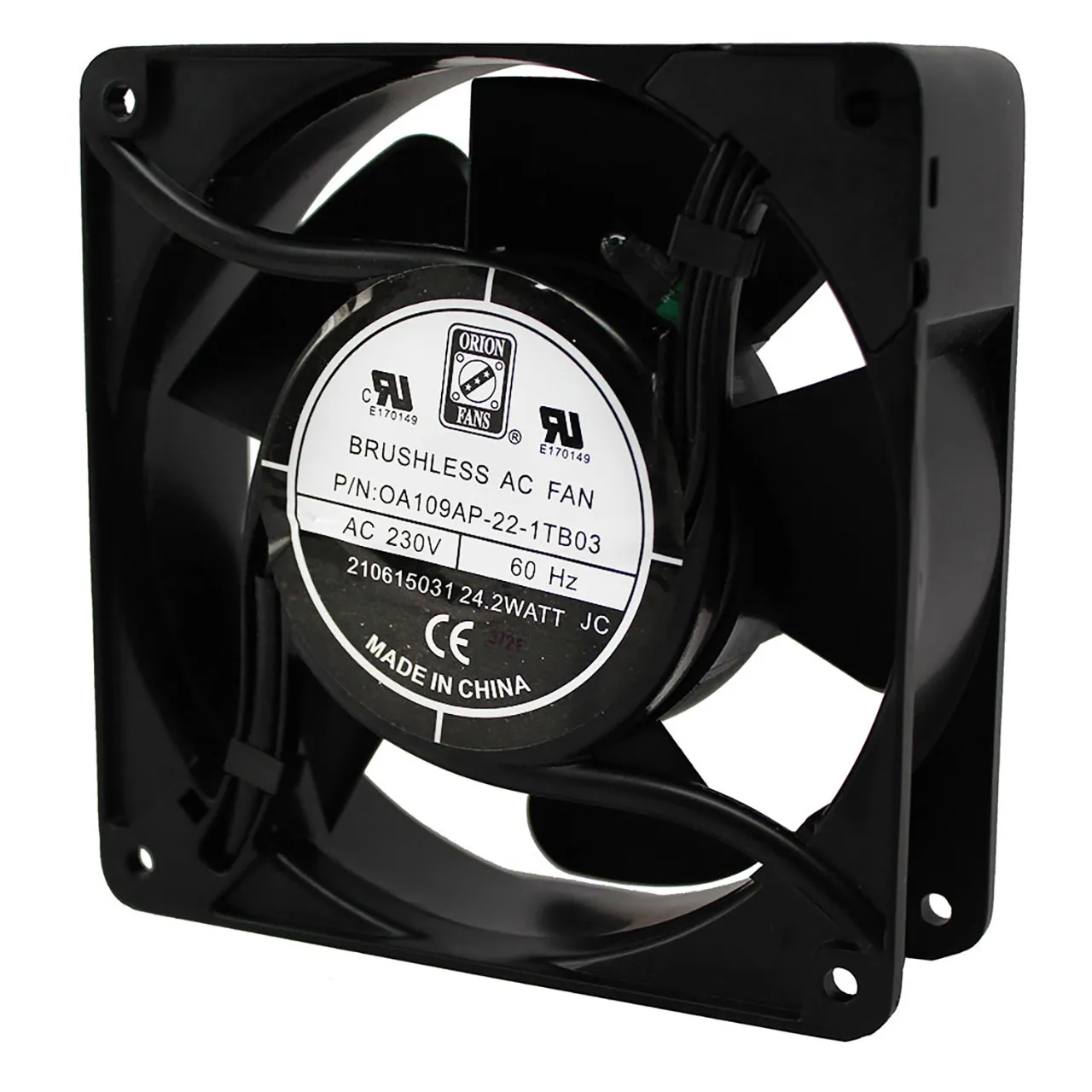

120 mm x 120 mm x 38 mm Tube Axial Fan 230 VAC Ball Bearing 97CFM 45dBA Terminals

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$28.650

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$28.650	-	-
10+	$26.850	1.80	6.28%
50+	$25.150	3.50	12.22%

Features

Voltage Rating: 230 VAC
Height: 120 mm
Width: 120 mm
Depth: 38 mm
Air Flow (CFM): 97
Bearing: Ball
Current Rating: 84 mA
Power Rating: 19.5 W
Agency Approvals: UL, CUL
Noise (dBA): 45
Termination: Terminals
Product Type: 120mm x 120mm AC Fan
Speed: 2500 rpm
Maximum Pressure: 0.19 in.
Additional Features: Hub-mounted Thermistor
Motor Drive Type: AC Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2500 rpm.
