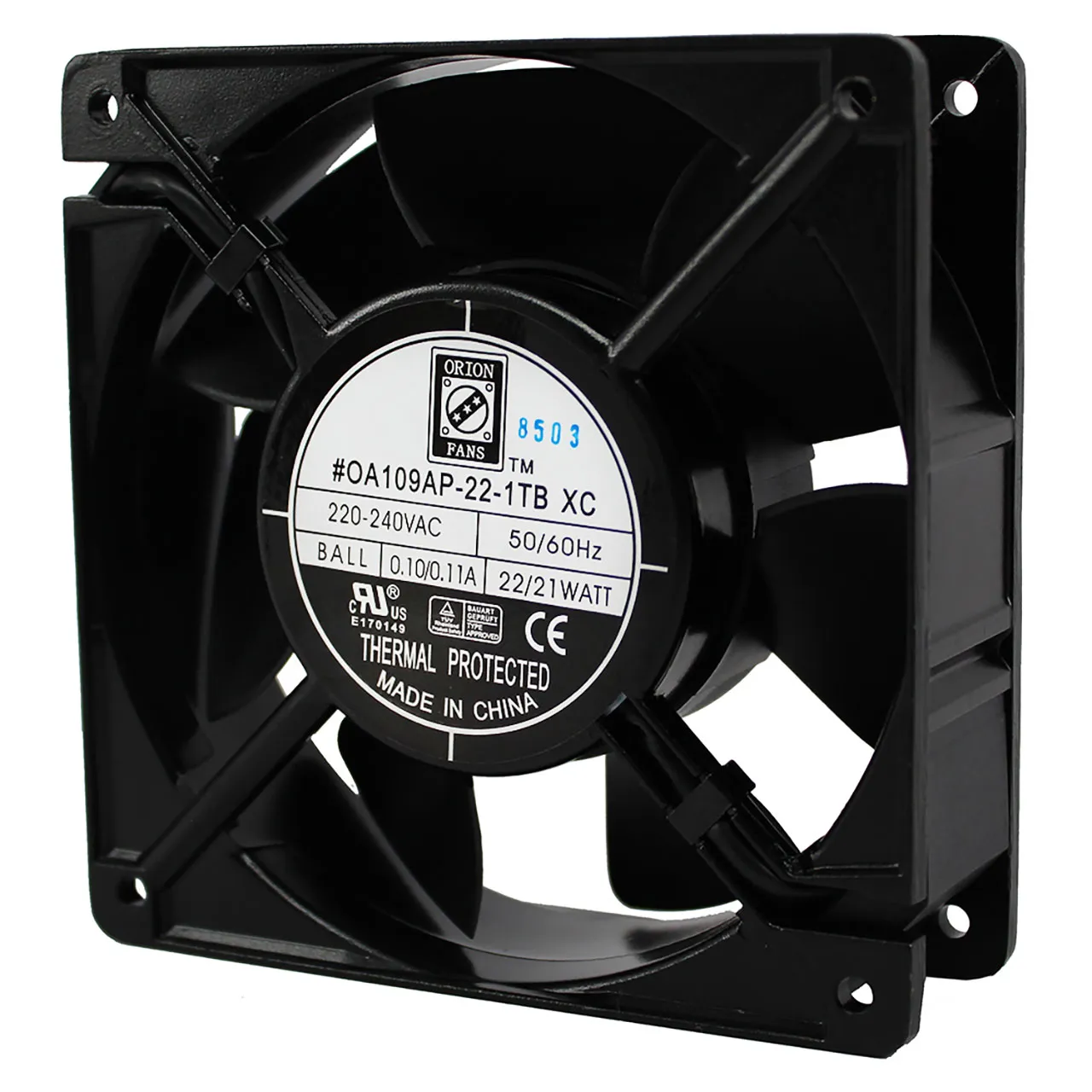

120 mm x 120 mm x 38 mm Tube Axial Fan 230 VAC Ball Bearing 131CFM 47dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 120 mm
  • Width: 120 mm
  • Depth: 38 mm
  • Air Flow (CFM): 131
  • Bearing: Ball
  • Current Rating: 95 mA
  • Power Rating: 22 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 47
  • Termination: Terminals
  • Product Type: 120mm x 120mm AC Fan
  • Speed: 3300 rpm
  • Maximum Pressure: 0.49 in.
  • Motor Drive Type: AC Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3300 rpm.

Product Identification

Product Type:AC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:38 mm
Width:120 mm
Height:120 mm

Features

Bearing:Ball
Motor Drive Type:AC Shaded Pole, Impedance Protected
Noise (dBA):47
Air Flow (CFM):131
Maximum Pressure:0.49 in.
Speed:3300 rpm
Voltage Rating:230 VAC
Termination:Terminals
Power Rating:22 W
Current Rating:95 mA
,
