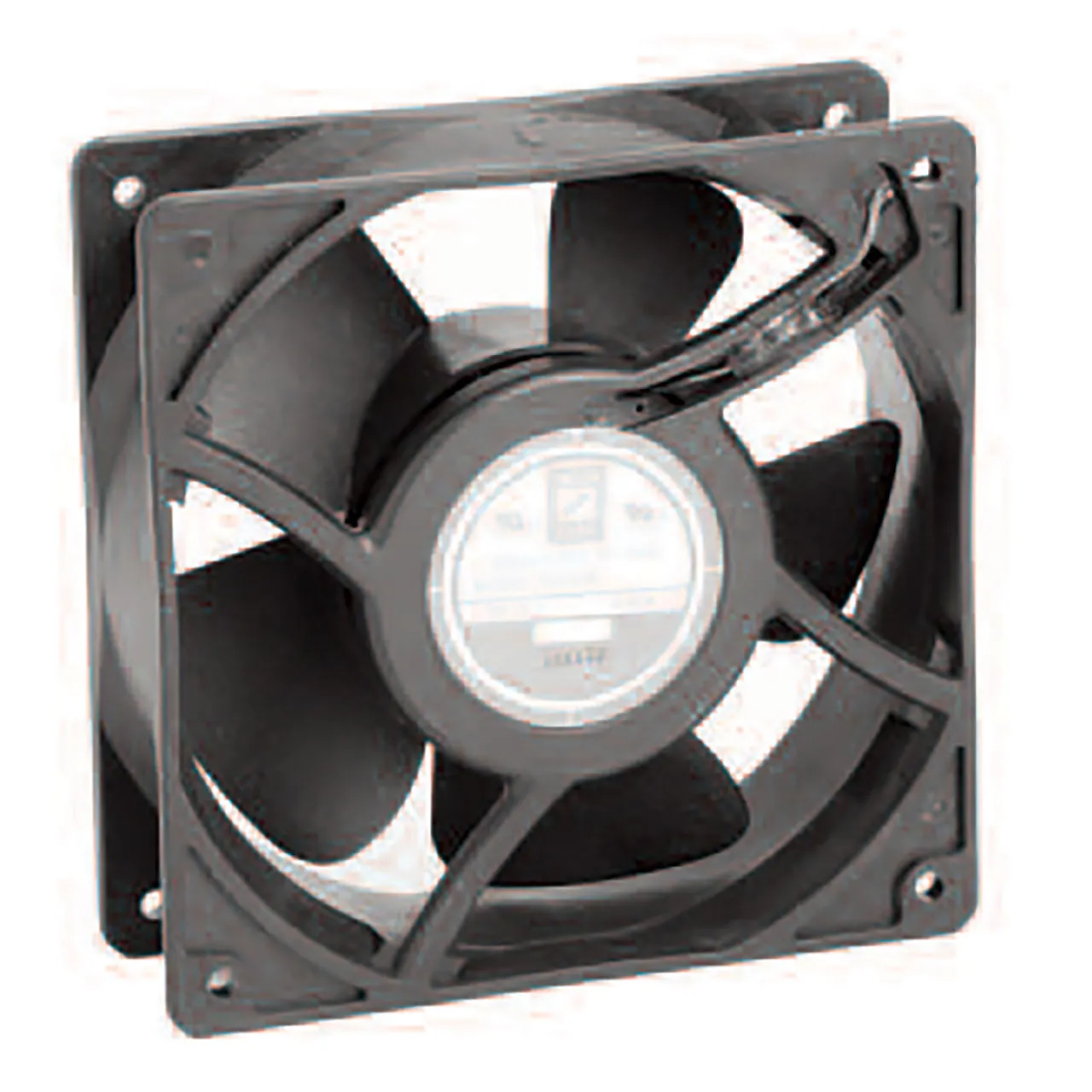

120 mm x 120 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 227CFM 69.1dBA 12" Wires (4)

Features

  • Voltage Rating: 12 VDC
  • Height: 120 mm
  • Width: 120 mm
  • Depth: 38 mm
  • Air Flow (CFM): 227
  • Bearing: Ball
  • Current Rating: 4400 mA
  • Power Rating: 52.8 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 69.1
  • Termination: 12" Wires (4)
  • Product Type: 120mm x 120mm DC Fan
  • Speed: 6000 rpm
  • Maximum Pressure: 1.3 in.
  • Additional Features: Open Collector Tach Output and PWM
  • Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 6000 rpm.

,
