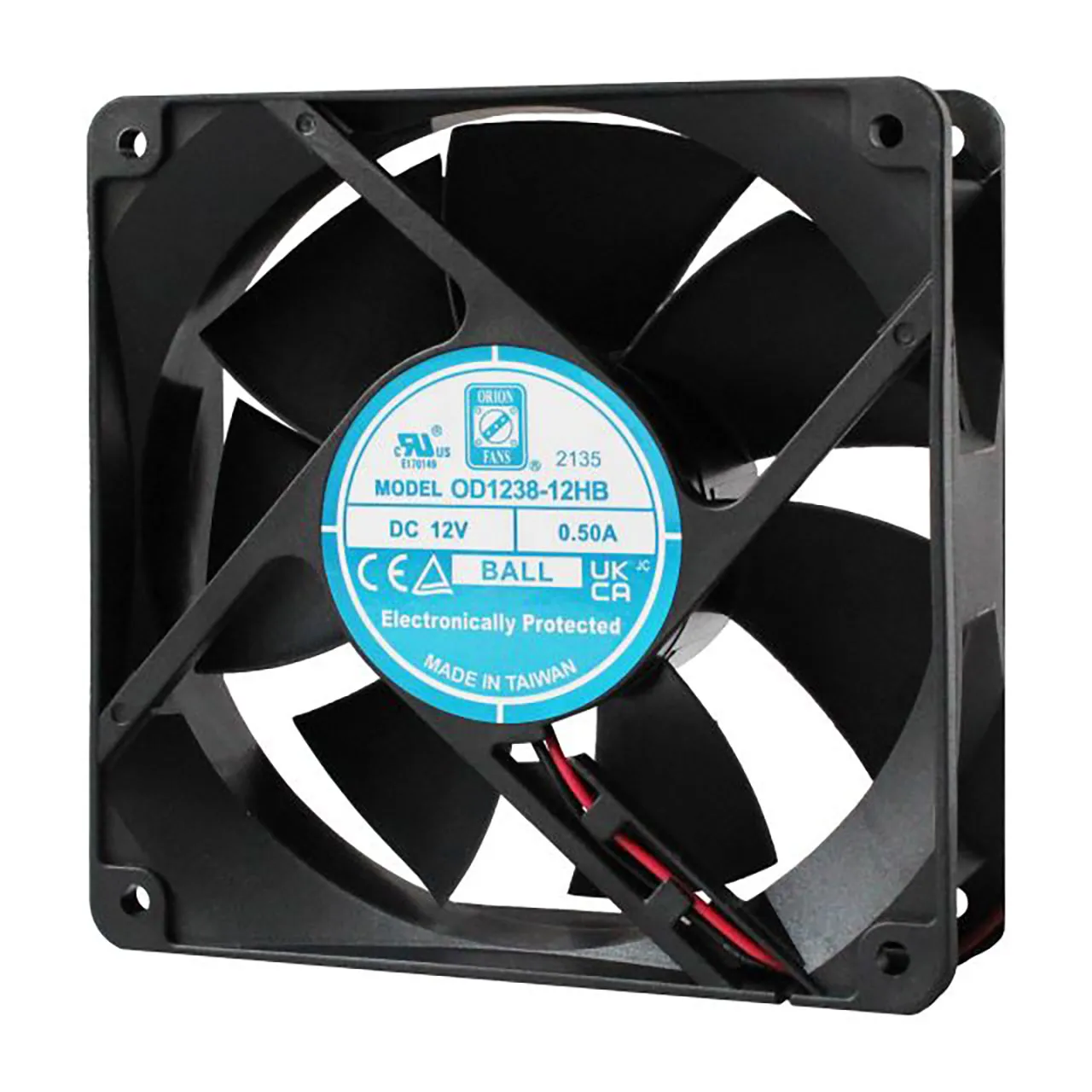

120 mm x 120 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 226CFM 65dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$44.250

In Stock: 0

Quantity	Unit Price	You Save	Discount
2+	$44.250	-	-
10+	$41.550	2.70	6.1%
50+	$38.950	5.30	11.98%

Features

Voltage Rating: 12 VDC
Height: 120 mm
Width: 120 mm
Depth: 38 mm
Air Flow (CFM): 226
Bearing: Ball
Current Rating: 3600 mA
Power Rating: 43.2 W
Agency Approvals: UL, CUL, TUV
Noise (dBA): 65
Termination: 12" Wires
Product Type: 120mm x 120mm DC Fan
Speed: 5000 rpm
Maximum Pressure: 1.35 in.
Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 5000 rpm.
