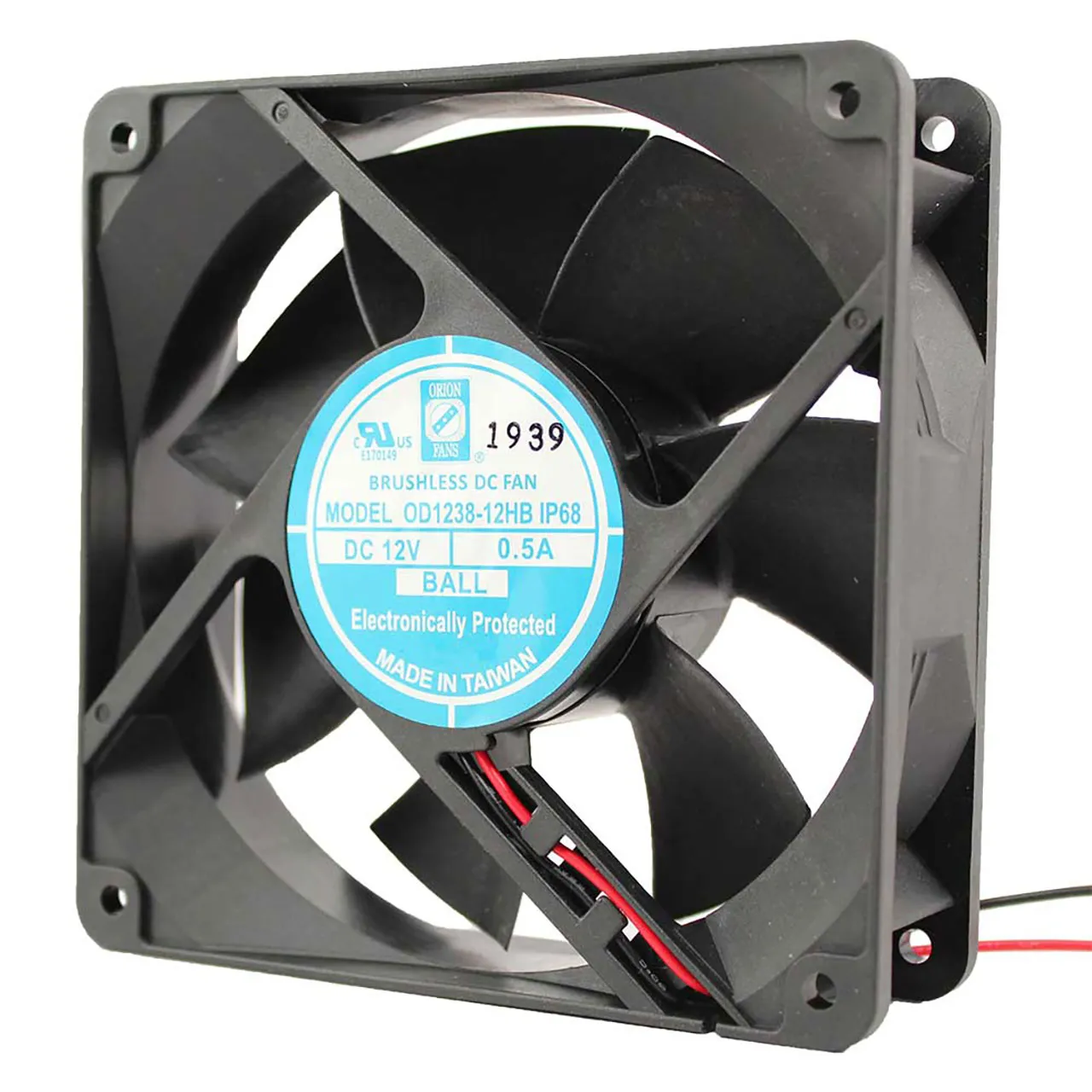

120 mm x 120 mm x 38 mm Tube Axial Fan 12 VDC Ball Bearing 124CFM 44dBA 12" Wires

Features

  • Voltage Rating: 12 VDC
  • Height: 120 mm
  • Width: 120 mm
  • Depth: 38 mm
  • Air Flow (CFM): 124
  • Bearing: Ball
  • Current Rating: 500 mA
  • Power Rating: 6 W
  • Agency Approvals: UL, CUL
  • Noise (dBA): 44
  • Termination: 12" Wires
  • Product Type: 120mm x 120mm DC Fan
  • Speed: 2895 rpm
  • IP Rating: IP68
  • Maximum Pressure: 0.47 in.
  • Motor Drive Type: Brushless DC, Auto Restart, IC Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2895 rpm.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, UL

Dimensions & Appearance

Depth:38 mm
Width:120 mm
Height:120 mm

Features

Bearing:Ball
Motor Drive Type:Brushless DC, Auto Restart, IC Protected
Noise (dBA):44
Maximum Pressure:0.47 in.
IP Rating:IP68
Voltage Rating:12 VDC
Speed:2895 rpm
Termination:12" Wires
Power Rating:6 W
Air Flow (CFM):124
Current Rating:500 mA
,
