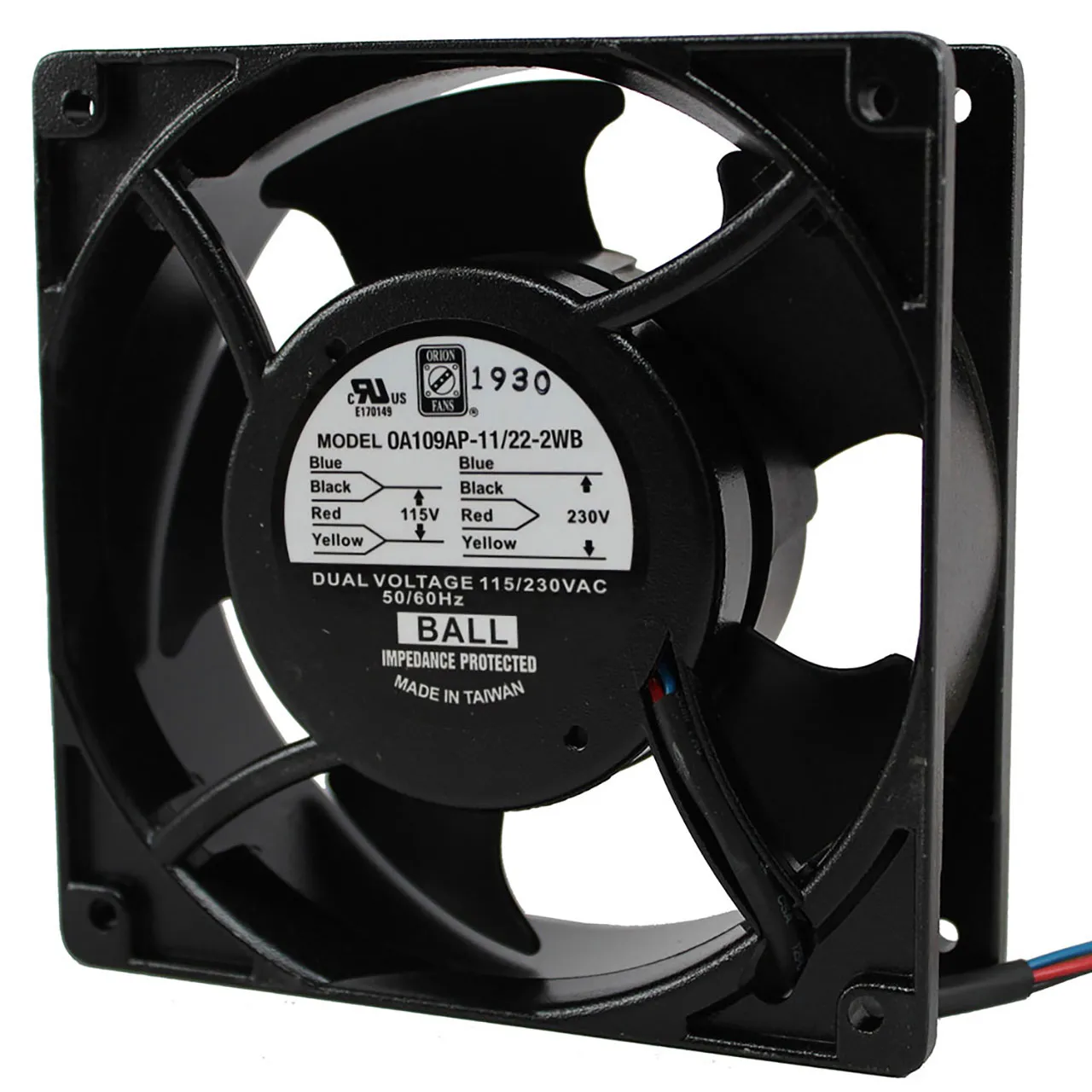

120 mm x 120 mm x 38 mm Tube Axial Fan 115/230 VAC Ball Bearing 71CFM 35dBA 12" Wires

Features

  • Voltage Rating: 115/230 VAC
  • Height: 120 mm
  • Width: 120 mm
  • Depth: 38 mm
  • Air Flow (CFM): 71
  • Bearing: Ball
  • Current Rating: 95 mA/47 mA
  • Power Rating: 11 W
  • Agency Approvals: UL, CUL, TUV, CE
  • Noise (dBA): 35
  • Termination: 12" Wires
  • Product Type: 120mm x 120mm Universal AC Fan
  • Speed: 2350 rpm
  • Maximum Pressure: 0.18 in.

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The

  • Bearing: Ball bearing system of the tube axial fan is designed to operate up to
  • Bearing: 2350 rpm.

    • Product Identification

    Product Type:Universal AC Fan

    Compliance

    RoHS Status:ROHS Compliant
    Compliance:Compliance Docs
    Agency Approvals: CE, CUL, TUV, UL

    Dimensions & Appearance

    Depth:38 mm
    Width:120 mm
    Height:120 mm

    Features

    Bearing:Ball
    Maximum Pressure:0.18 in.
    Noise (dBA):35
    Speed:2350 rpm
    Air Flow (CFM):71
    Termination:12" Wires
    Voltage Rating:115/230 VAC
    Power Rating:11 W
    Current Rating:95 mA/47 mA
    ,
