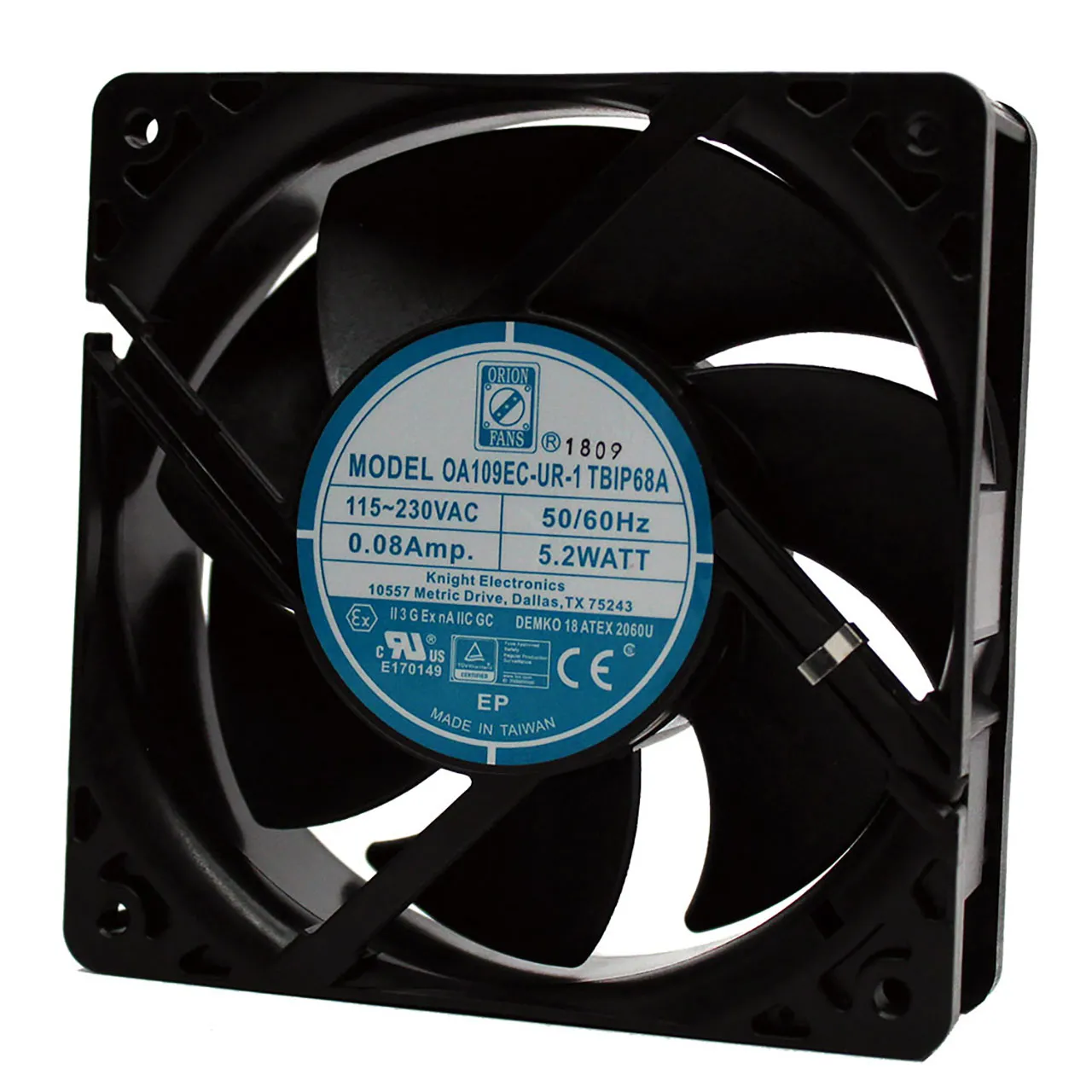

120 mm x 120 mm x 38 mm Tube Axial Fan 115/230 VAC Ball Bearing 106CFM 43dBA Terminals

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$89.450

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$89.450	-	-
5+	$82.250	7.20	8.05%
25+	$75.650	13.80	15.43%

Features

Voltage Rating: 115/230 VAC
Height: 120 mm
Width: 120 mm
Depth: 38 mm
Air Flow (CFM): 106
Bearing: Ball
Current Rating: 42 mA/22 mA
Power Rating: 4.9/5.2 W
Agency Approvals: UL, CUL, CE
Noise (dBA): 43
Termination: Terminals
Product Type: 120mm x 120mm Universal AC Fan
Speed: 3200 rpm
IP Rating: IP68
Maximum Pressure: 0.34 in.
Additional Features: IP68 & ATEX
Motor Drive Type: EC Motor, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3200 rpm.
