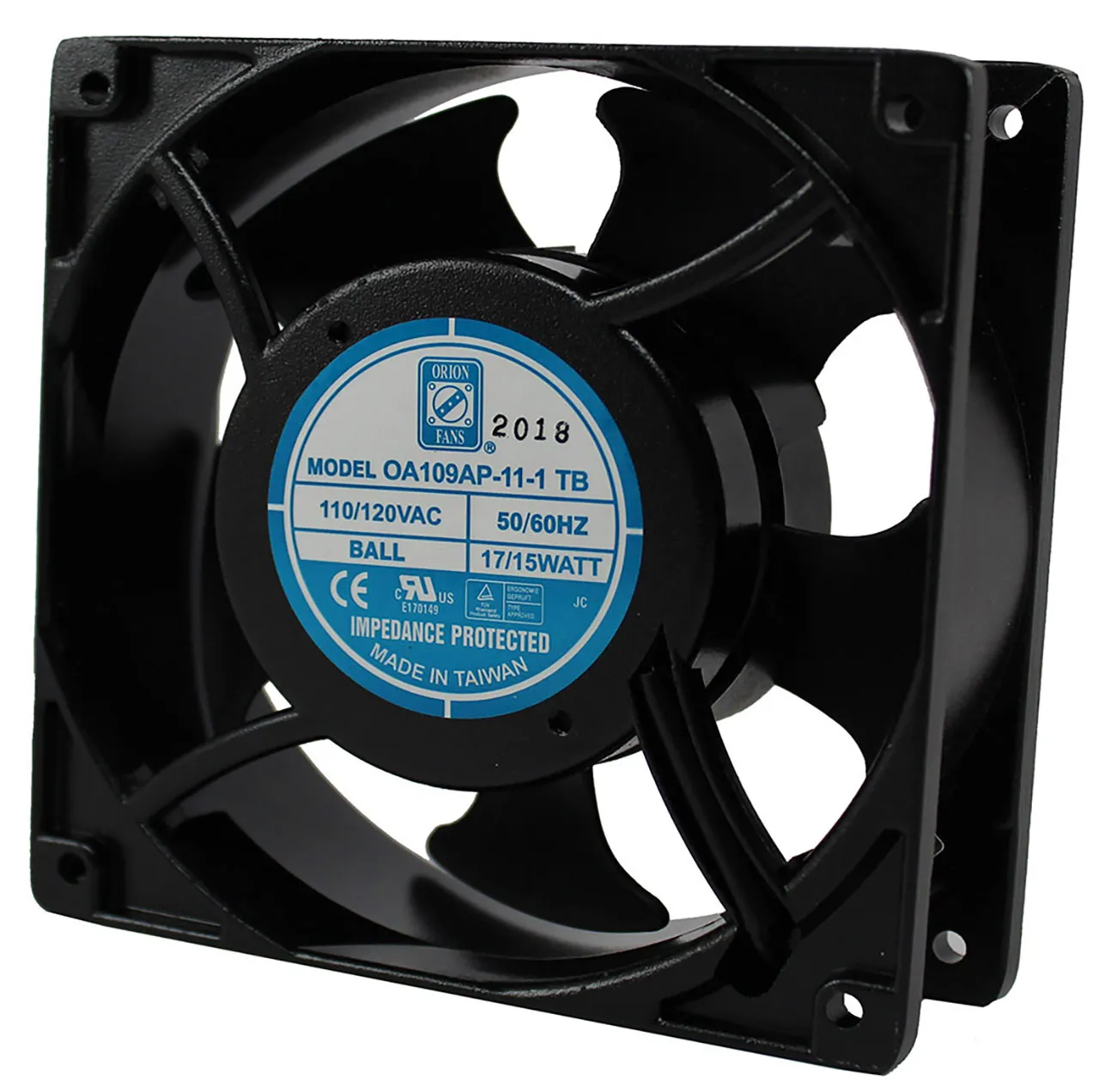

120 mm x 120 mm x 38 mm Tube Axial Fan 115 VAC Dual Ball Bearing 104CFM 42dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 120 mm
  • Width: 120 mm
  • Depth: 38 mm
  • Air Flow (CFM): 104
  • Bearing: Dual Ball
  • Current Rating: 180 mA
  • Power Rating: 15 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 42
  • Termination: Terminals
  • Product Type: 120mm x 120mm AC Fan
  • Speed: 3000 rpm
  • Maximum Pressure: 0.29 in.
  • Motor Drive Type: AC Shaded Pole, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 3000 rpm.

Product Identification

Product Type:AC Fan

Compliance

Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:38 mm
Width:120 mm
Height:120 mm

Features

Bearing:Dual Ball
Motor Drive Type: Impedance Protected, AC Shaded Pole
Noise (dBA):42
Maximum Pressure:0.29 in.
Air Flow (CFM):104
Speed:3000 rpm
Voltage Rating:115 VAC
Termination:Terminals
Power Rating:15 W
Current Rating:180 mA
,
