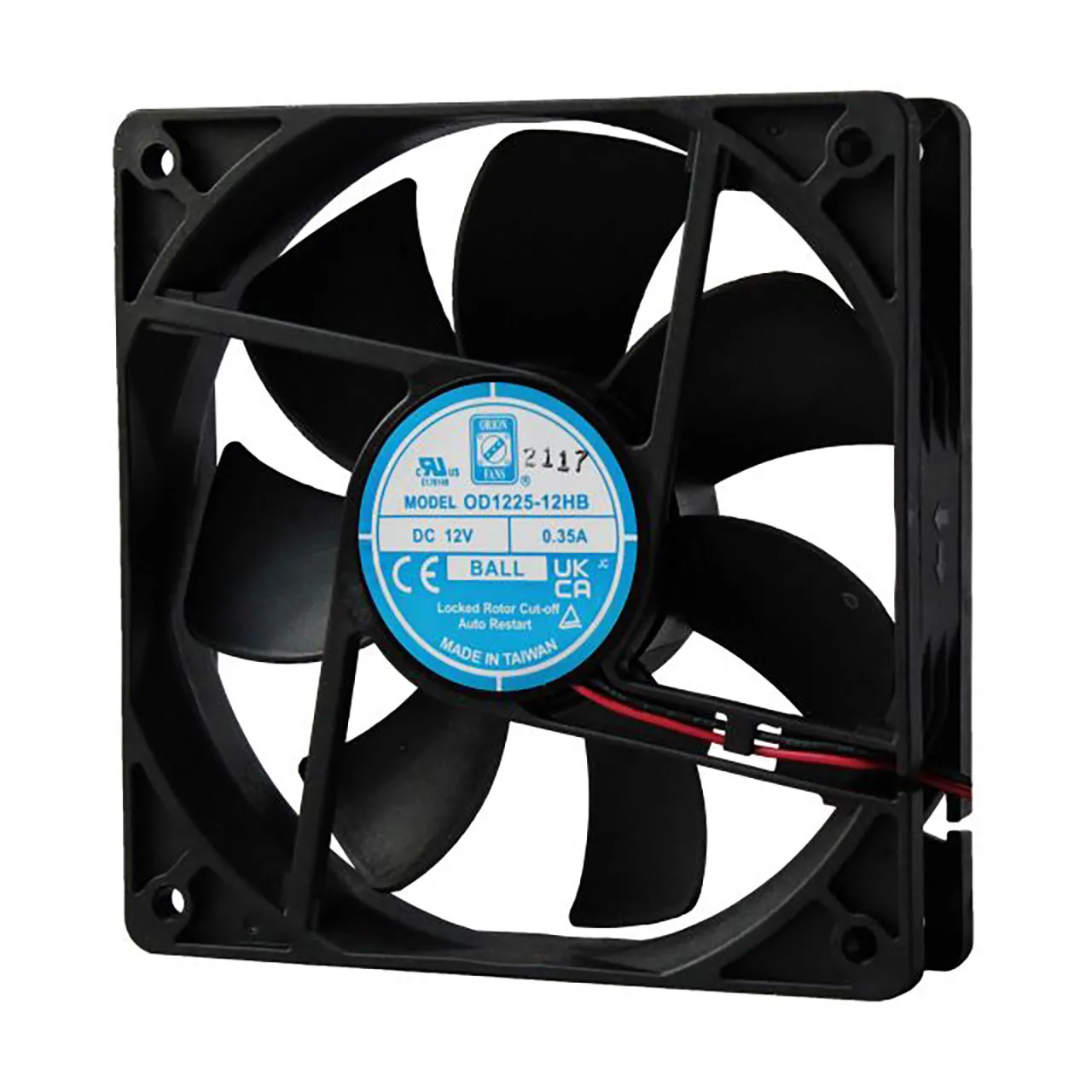

120 mm x 120 mm x 25 mm Tube Axial Fan 12 VDC Ball Bearing 158.7CFM 57.3dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$23.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
3+	$23.950	-	-
12+	$22.550	1.40	5.85%
48+	$21.150	2.80	11.69%

Features

Voltage Rating: 12 VDC
Height: 120 mm
Width: 120 mm
Depth: 25 mm
Air Flow (CFM): 158.7
Bearing: Ball
Current Rating: 1400 mA
Power Rating: 16.8 W
Agency Approvals: UL, CUL, TUV, CE, UKCA
Noise (dBA): 57.3
Termination: 12" Wires
Product Type: 120mm x 120mm DC Fan
Speed: 4000 rpm
Maximum Pressure: 0.49 in.
Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Polarity Protected, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 4000 rpm.
