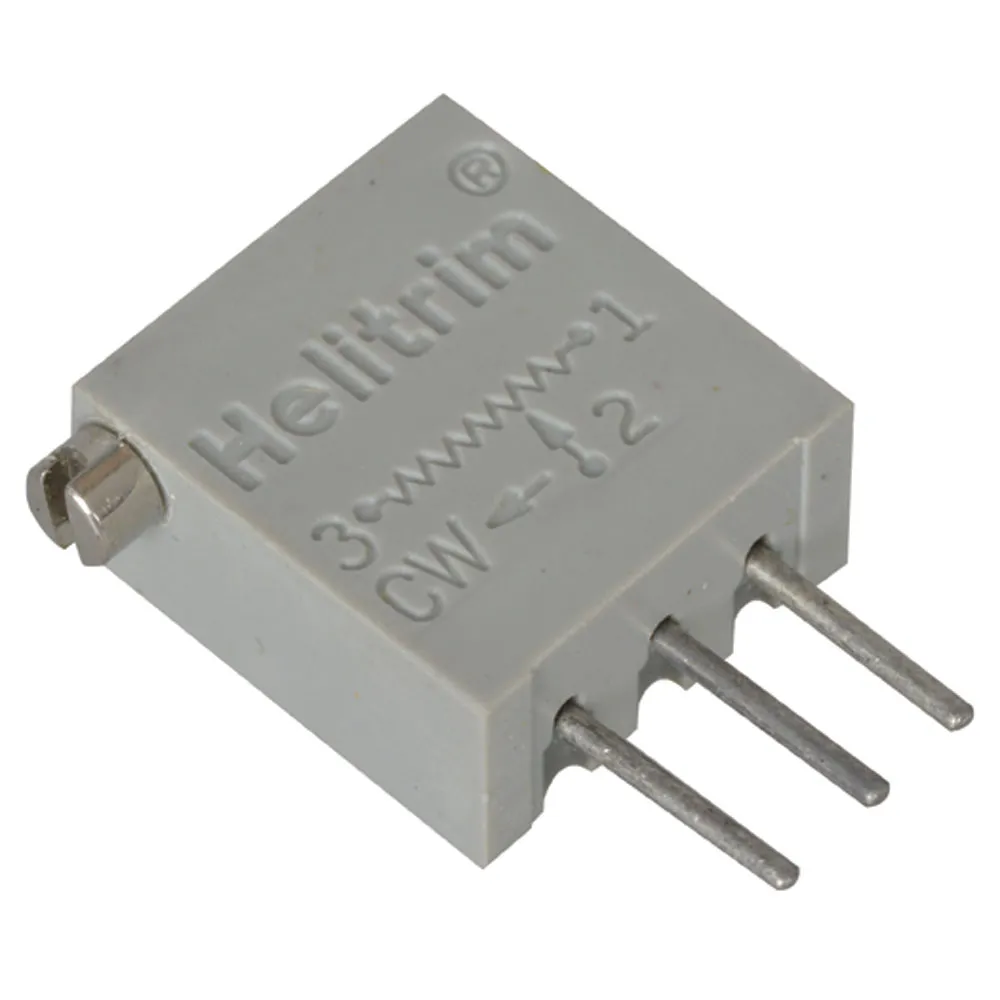

25K Ohms 500mW 3/8" Rectangular Cermet Trimmer Potentiometer 25-Turn Side Adjust PC Pin THM
Specifications
- Resistance: 25K Ohms
- Power (Watts): 0.5W, 1/2W
- Tolerance: ±10%
- Temperature Coefficient: ±100ppm/°C
- Number of Turns: 25
- Adjustment Type: Side Adjustment
- Resistive Material: Cermet
- Mounting Type: Through Hole
- Termination Style: PC Pins
- Sealed
- Size / Dimension: Rectangular - 0.375" x 0.15 Face x 0.375"L (9.53mm x 3.81mm x 9.53mm)
Product Identification
Product Type:Trimmer
Manufacturer Series:3292
Family:X
Dimensions & Appearance
Height:10.41 mm
Width:5.08 mm
Length:9.53 mm
Shaft Diameter:2.29 mm
Mounting:Through Hole
Operating conditions
Maximum Operating Temperature:150°C
Minimum Operating Temperature:-65°C
Features
Taper:Linear
Resistive Element Material:Cermet
Actuator Orientation:Side
Number of Turns:20
Tolerance:10%
Temperature Coefficient:100 ppm/°C
Resistance (Ohm):25000
Technology:Sealed
Power Rating:0.50 W
Termination Style:Pins
Resistance:25 KOhm
Actuator Type:Side Slot
