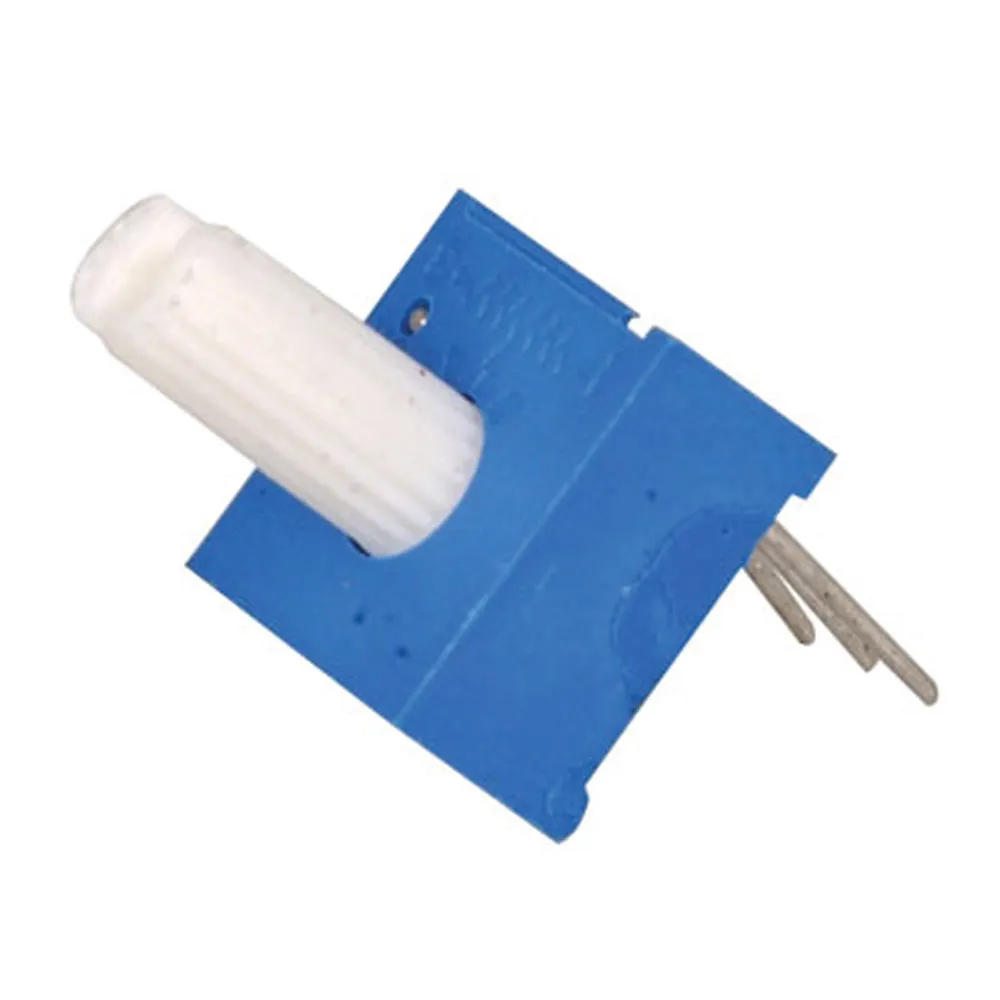

1/2W 500 Ohm 3/8" Square Linear Taper Potentiometer
Features
- 3 positions
- Trimmer with 0.32 in shaft length
- Single turn
- Non-rotational key, slotted shaft
- 0.1 in lead spacing
- Tolerance: 10%
Product Identification
Family:T
Manufacturer Series:3386
Product Type:Trimmer
Dimensions & Appearance
Shaft Diameter:3.15 mm
Mounting:Through Hole
Height:4.83 mm
Width:9.53 mm
Length:9.53 mm
Operating conditions
Maximum Operating Temperature:125°C
Minimum Operating Temperature:-55°C
Features
Number of Turns:1
Taper:Linear
Resistive Element Material:Cermet
Actuator Orientation:Top
Tolerance:10%
Temperature Coefficient:100 ppm/°C
Resistance (Ohm):500
Power Rating:0.50 W
Termination Style:Pins
Actuator Type:Shaft
Resistance:500 Ohm
