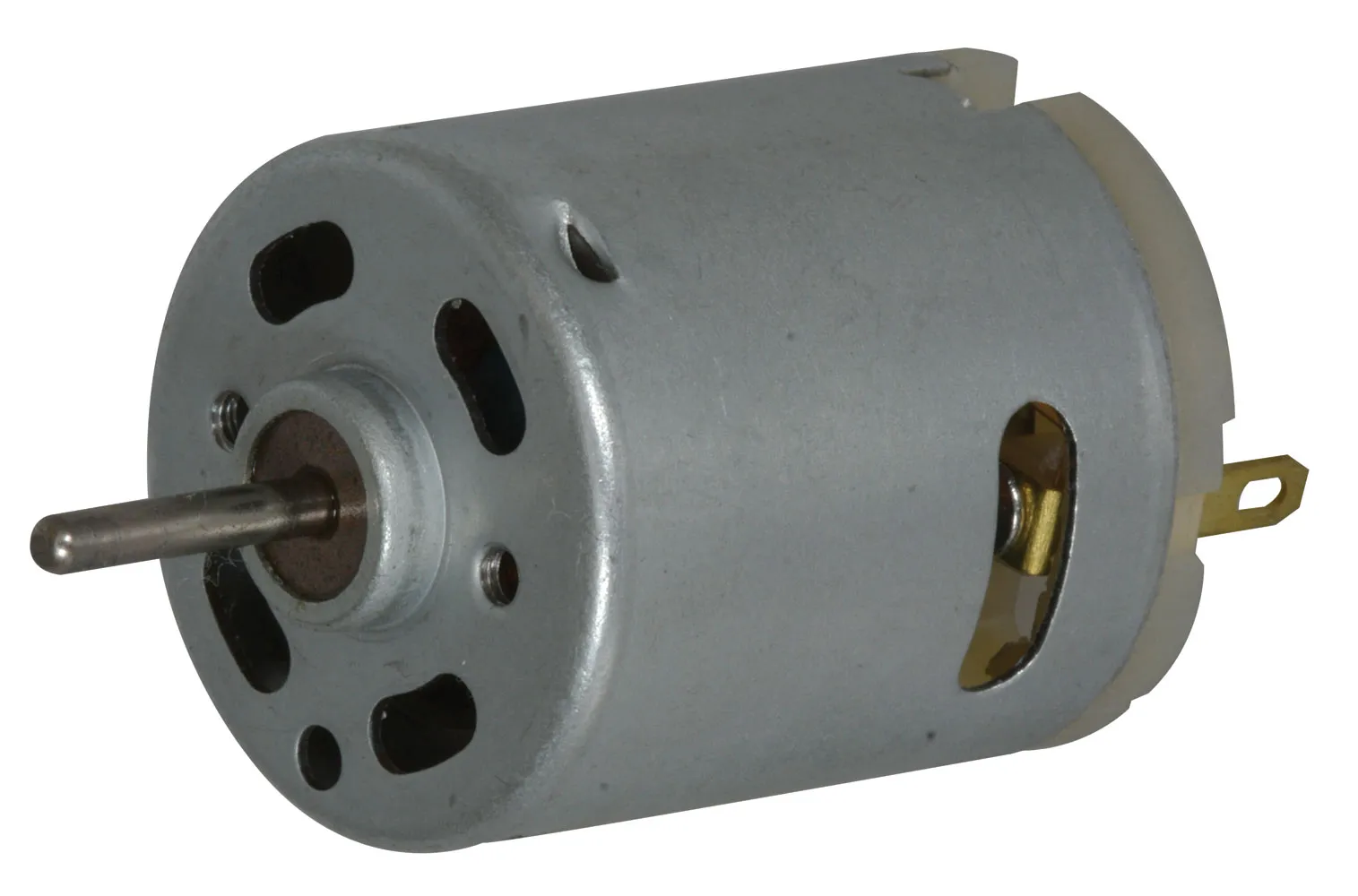

12 Volt DC Motor

Features:

  • Rated voltage: 12VDC
  • Rated torque: 52.08 g.cm
  • Stall torque: 285 g.cm
  • Rated current: ≤1.3A
  • Stall current: 4A
  • Rated speed: 12,586 RPM ± 10%
  • Output power: 6.73W
  • Maximum efficiency: 62.7%
  • No load current: 0.30A max.
  • No load speed: 15,500 RPM ± 10%
  • Terminal type: 0.12" solder tabs
  • Shaft diameter: 0.091"
  • Shaft length: 0.622"
  • Size: 1.082" diameter x 1.279" depth
  • Screw Mount Dimensions: M2.6

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Shaft Diameter:0.091 in.
Body Length:1.3 in.
Body Diameter:1.1 in.
Shaft Length:0.48 in.
Dimensions:1.1"Dia. x 1.3"L

Input

Input Voltage Range:6 VDC to 12 VDC

Features

Terminal Type:0.12"/Solderable
Current @ Max. Efficiency (A):1.3
Speed @ Max. Efficiency (RPM):12586
Torque @ Max. Efficiency (g-cm):52
Efficiency:62%
Voltage Rating:12 VDC
,
