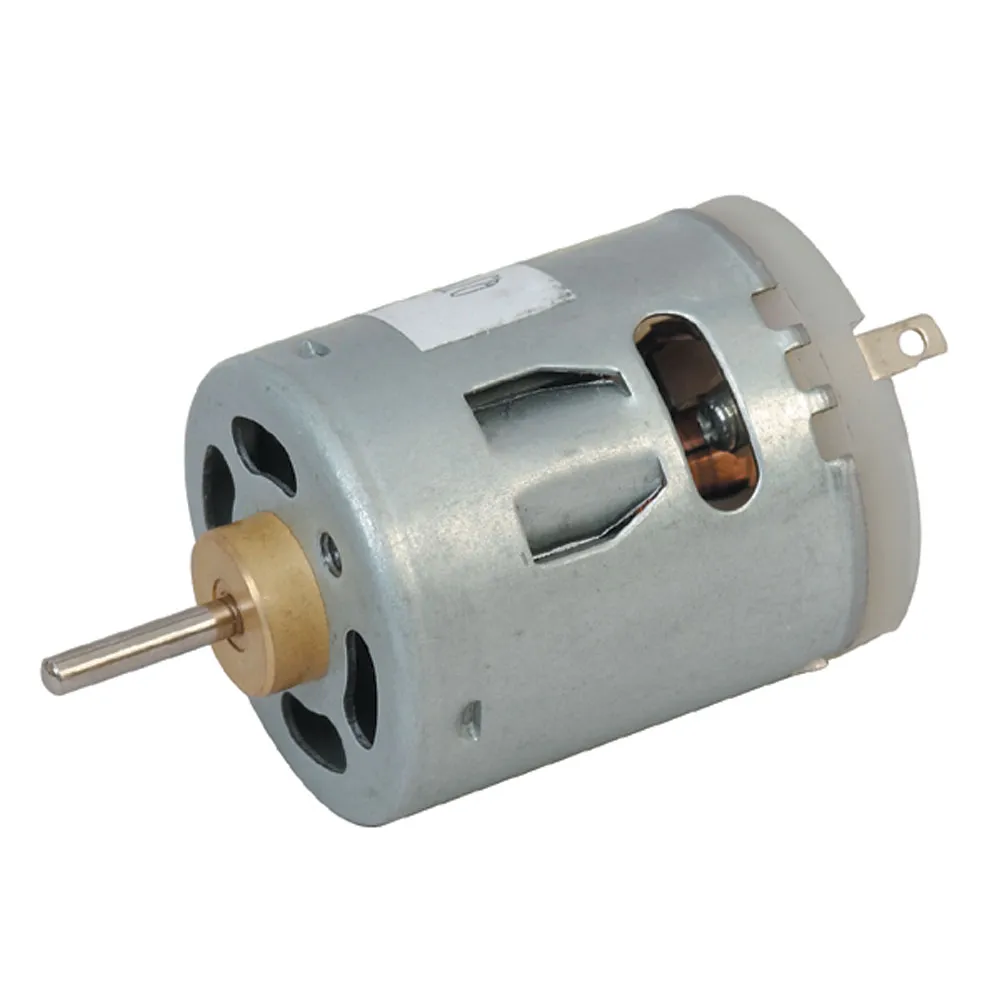

12 Volt DC Motor - 4930 RPM

  • Nominal Voltage: 12VDC
  • Voltage Range: 9V - 30V
  • Current: 0.035 Amps
  • RPM: 4930 max.
  • Torque: 44.5 g-cm
  • Efficiency: 52%
  • Terminal Type: 0.11"/solder
  • Shaft Diameter: 0.09"
  • Shaft Length: 0.45"
  • Size: 1.09"D x 1.30"L
  • Screw Mount Dimensions: M2.6 x 0.5

    • Dimensions & Appearance

    Dimensions:1.1"Dia. x 1.3
    Shaft Diameter:0.09 in.
    Shaft Length:0.45 in.
    Body Diameter:1.1 in.
    Body Length:1.3 in.

    Input

    Input Voltage Range:9 VDC to 30 VDC

    Features

    Current @ Max. Efficiency (A):0.35
    Speed @ Max. Efficiency (RPM):4930
    Terminal Type:0.11"/Solderable
    Torque @ Max. Efficiency (g-cm):44.5
    Efficiency:52%
    Voltage Rating:12 VDC
    ,
