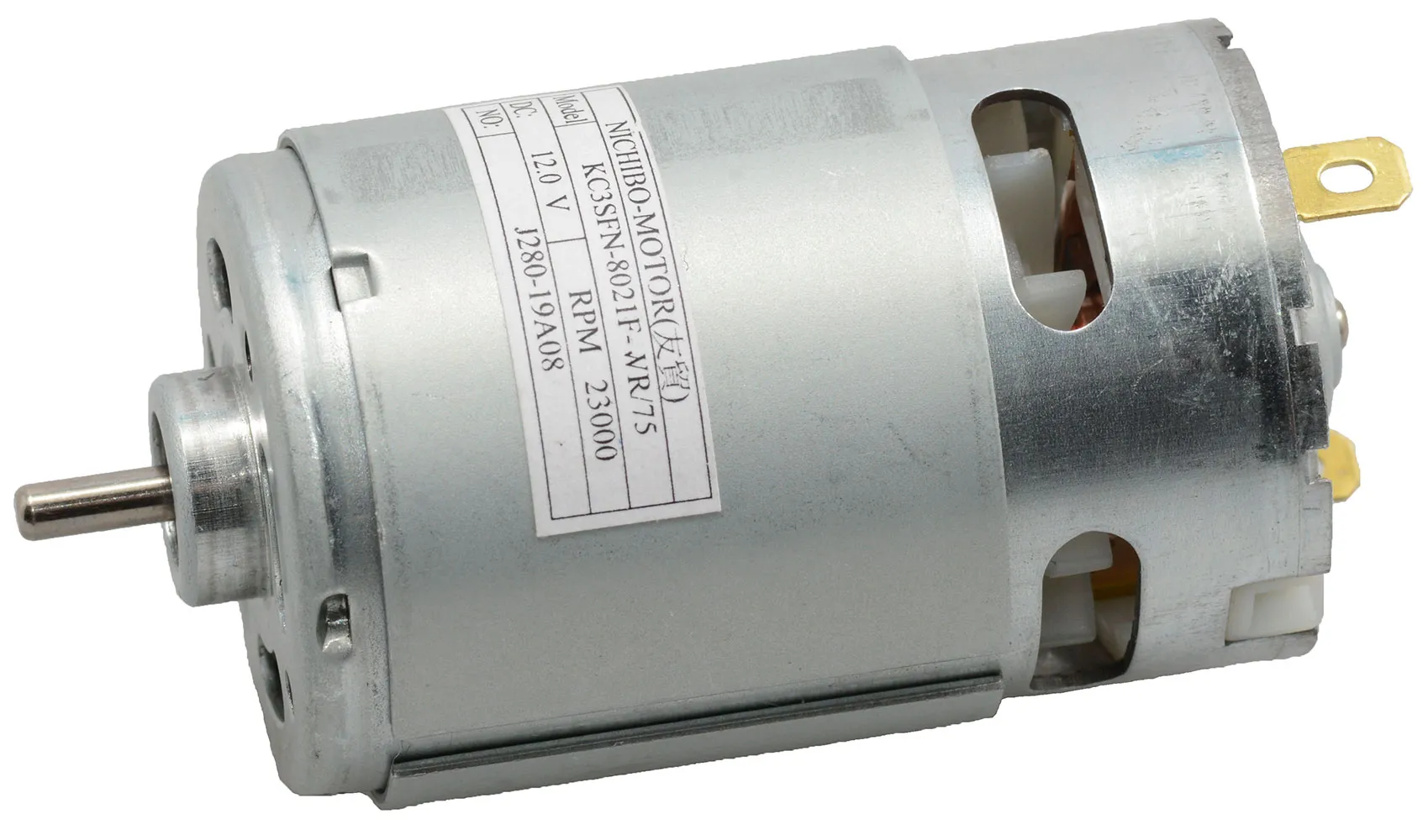

12 Volt DC Motor - 20367 RPM

Features

  • Nominal Voltage: 12 VDC
  • Voltage Range: 1 - 12 VDC
  • Speed: 20,367 RPM (@ max. efficiency)
  • Current: 13.97 Amps (@ max. efficiency)
  • Torque: 642 g-cm (@ max. efficiency)
  • Efficiency: 80.64%
  • Terminal Type: 0.187" Solder tab
  • Shaft Diameter: 3.17 mm (0.125")
  • Shaft Length: 8.5 mm (0.335")
  • Size (Diameter x Depth): 38 x 57 mm (1.5" x 2.244")
  • Rotation Direction: CCW (counter-clockwise)

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Shaft Diameter:0.125 in.
Shaft Length:0.334 in.
Body Length:2.2 in.
Body Diameter:1.5 in.
Dimensions:1.5"Dia. x 2.2"L

Input

Input Voltage Range:1 VDC to 12 VDC

Features

Terminal Type:0.187" quick connect
Current @ Max. Efficiency (A):13.97
Speed @ Max. Efficiency (RPM):20367
Torque @ Max. Efficiency (g-cm):642
Voltage Rating:12 VDC
Efficiency:80%
,
