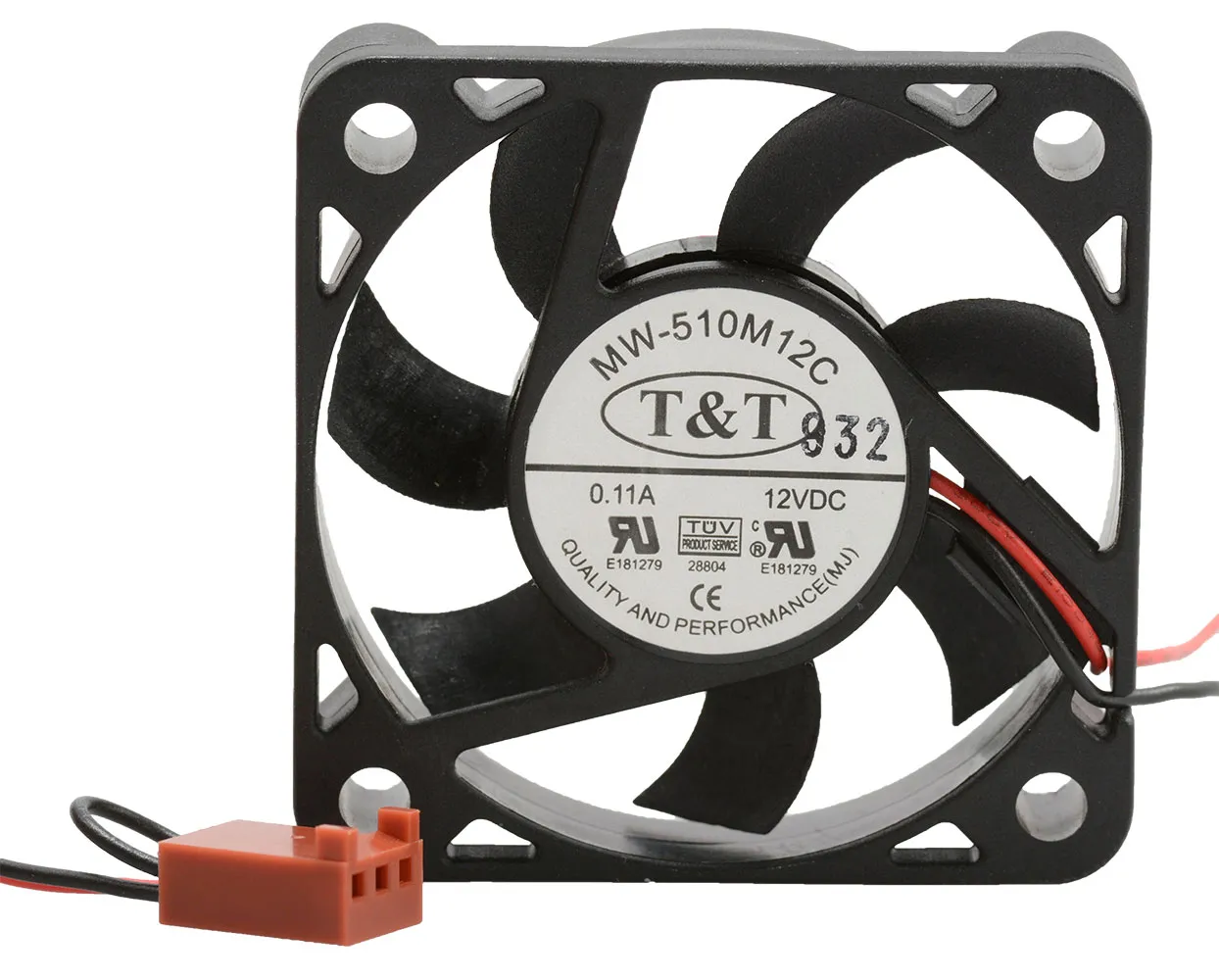

12 Volt DC 50x50x10mm Brushless Tubeaxial Fan 9 CFM

Specifications

  • 7 blade
  • Voltage: 12 volts DC
  • Size (W x H x D): 50 mm X 50 mm X 10 mm
  • Air flow: 9 CFM
  • Bearing type: Ball
  • Current: 110 mA
  • Power: 1.32 watts
  • Agency approvals: UL, TUV, CE
  • Noise: 27 dBA
  • Connections: 10" lead wires with 3P connector
  • Ideal for chipset cooling
  • Distance between mounting holes: 40 mm

Compliance

RoHS Status:Undefined
Agency Approvals: CE, TUV, UL

Dimensions & Appearance

Depth:10 mm
Height:50 mm
Width:50 mm

Features

Bearing:Ball
Voltage Rating:12 VDC
Power Rating:1.32 W
Air Flow (CFM):9
Noise (dBA):27
Termination:10" Wires w/ conn.
Current Rating:110 mA
,
