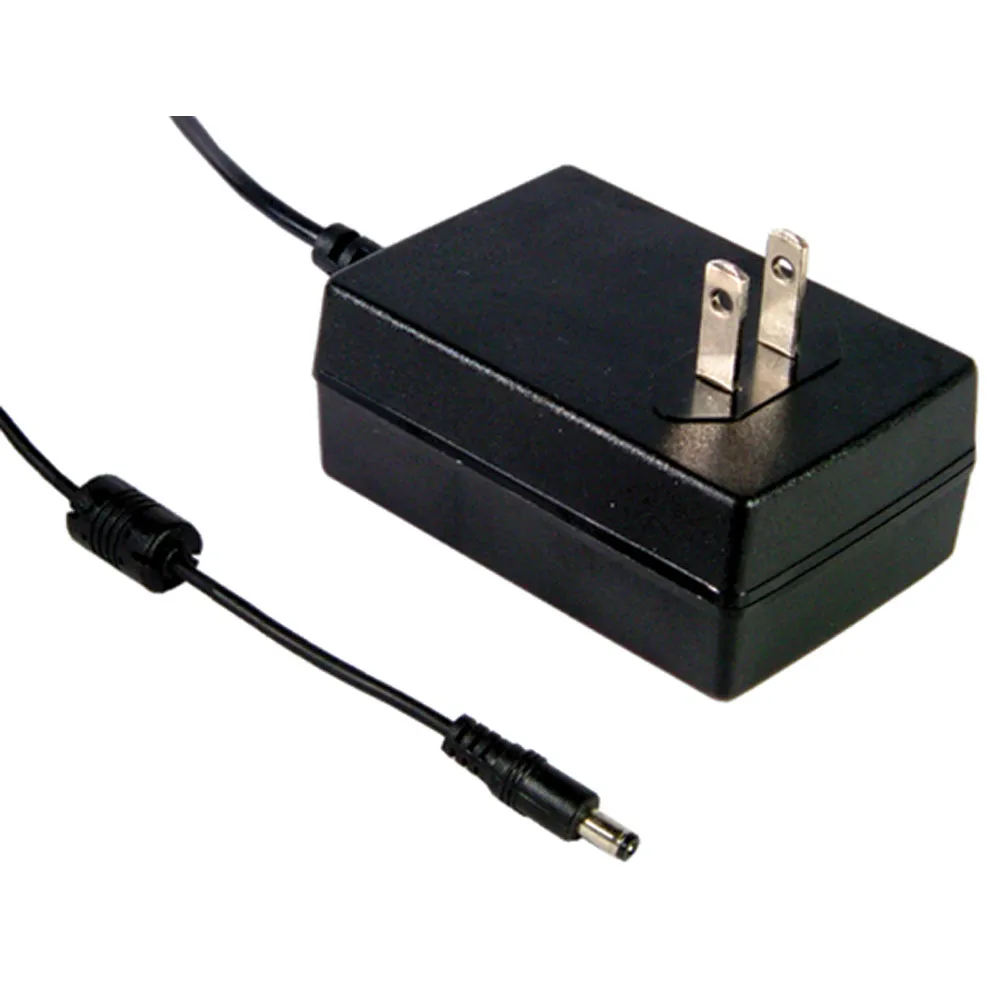

12 Volt 1.5 Amp 18 Watt Medical Wall Adapter

12 Volts @ 1.5 Amps

Features

  • Universal AC input / full range
  • 2 pole USA plug (Class II power, without earth pin)
  • Medical safety approved (2xMOPP between primary and secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current <50µA
  • No load power consumption <0.1W
  • Energy efficiency level: Level VI
  • Comply with EISA 2007/DoE and NRCan
  • High operating temperature up to +60°C
  • Protections: Short circuit, overload, over voltage
  • Fully enclosed plastic case
  • LED indicator for power ON
  • 100% full load burn-in test
  • 3 year warranty

Specifications

  • Output voltage: 12 VDC
  • Output current: 1.5A (1500 mA)
  • Output connector: 2.1mm x 5.5mm female barrel plug, center positive
  • Input voltage: 80 to 264 VAC @ 47-63 Hz
  • Size: 3.11"L x 2.13"W x 1.30"H
  • Case color: Black
  • Output cord length: 5.9'
  • Weight: 0.445 lbs.
  • Agency approvals: UL, CUL, TUV, CB, FCC

Product Identification

Product Type:Switching SMPS
Manufacturer Series:GSM18U

Compliance

Agency Approvals:UL, CUL, TUV, CB, FCC, EAC

Dimensions & Appearance

Color:Black
Style:Wall Mount
Height:1.31 in.
Width:2.13 in.
Length:3.11 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:NEMA 1-15P
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.5 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Cord Length:6 ft.
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:1.50 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:86%
Power Rating:18 W
,
