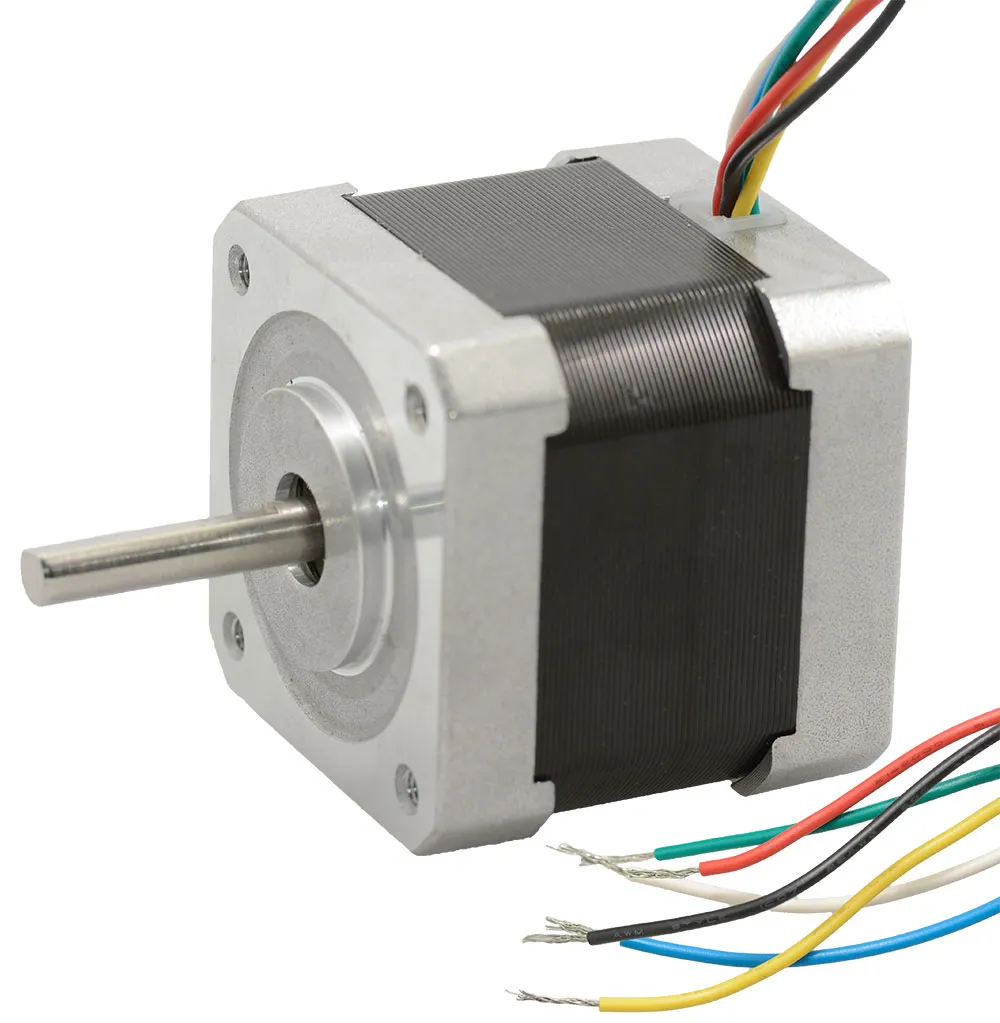

12 VDC Two-Phase Bipolar Hybrid Stepper Motor 1.8° Step 200 Steps

Specifications:

  • Voltage: 12 VDC
  • Rated Current: 0.4 A/phase
  • Step Angle: 1.8°
  • Resistance Per Phase: 30Ω
  • Inductance Per Phase: 22 mH, ±20%
  • Number of Phase: 2 (Bipolar)
  • Holding Torque: 2 kg-cm
  • Size: 42.3 mm 42.3 mm x 39.5 mm
  • Mounting Hole: 31 mm x 31 mm
  • Screw: (4) M3 x 0.5
  • Shaft Length: 20 mm
  • Shaft Diameter: 5 mm (4.3 mm on the D)

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Mounting Hole:0.1 in.
Shaft Diameter:0.19 in.
Shaft Length:0.79 in.
Weight:0.53 lbs.

Features

Step Angle:1.8
NEMA Frame Size:17
Coil Type:Bipolar
Inductance per Phase:2.3 mH
Resistance per Phase:1.55 Ohms
Hole Spacing:1.22 in.
Detent Torque:2000 g-cm
Current per Phase:1700 mA
Holding Torque:4200 g-cm
Motor Size (Diameter x Length) (inch):1.66 x 1.57
Voltage Rating:12 VDC
,
