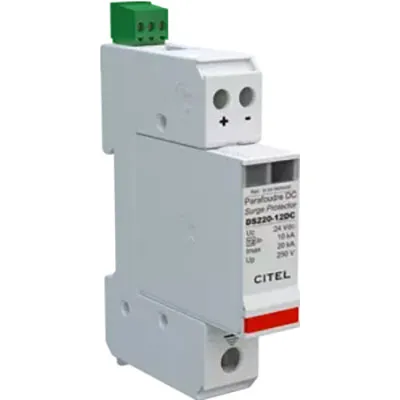

12 VDC DIN Rail Network Surge Protection Device 24V MCOV 20kA Surge

Specifications

  • Max Load Current (IL): 20 A
  • Protection mode(s): Common mode, Differential Mode
  • Power SPD Type: UL1449 TYPE 4CA
  • Volts (V): 12 VDC
  • Phase (PH): n/a
  • Amps (A): n/a
  • Ambient Min (C): -35
  • Ambient Max (C): +85
  • Modes: DC+-DC, DC+-G, DC--G
  • MLV DC (V): 590/510/510
  • MCOV (V): 24/24/24
  • IN (kA): 10
  • SCCR (kA): n/a
  • IMAX (kA): 20
  • Outdoor Application: No
  • Technology: MOV
  • Network Configuration: 2W+G
  • Connection Method: Screw Terminal (8-12 AWG)
  • Mounting: DIN Rail
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Fail-Safe Behavior: Disconnection via fuse-link
  • Real-Time Diagnostics: Visual indicator and remote contacts
  • Spare Part: DSM220-12DC

Compliance

Agency Approvals:UL

Dimensions & Appearance

Depth:67 mm
Width:18 mm
Height:90 mm
Mounting Type:DIN Rail

Input

Input Voltage:12 V

Features

Failsafe Protection:N/A
Short Circuit Protection:N/A
Maximum Clamping Voltage:24 / 24 / 24
Surge Current Rating:20 kA
Application:12V DC Power Network
Technology:MOV
Protection Style:Common Mode, Differential Mode
IP Rating:N/A
Voltage Rating:12 VDC
Current Rating:20 A
,
