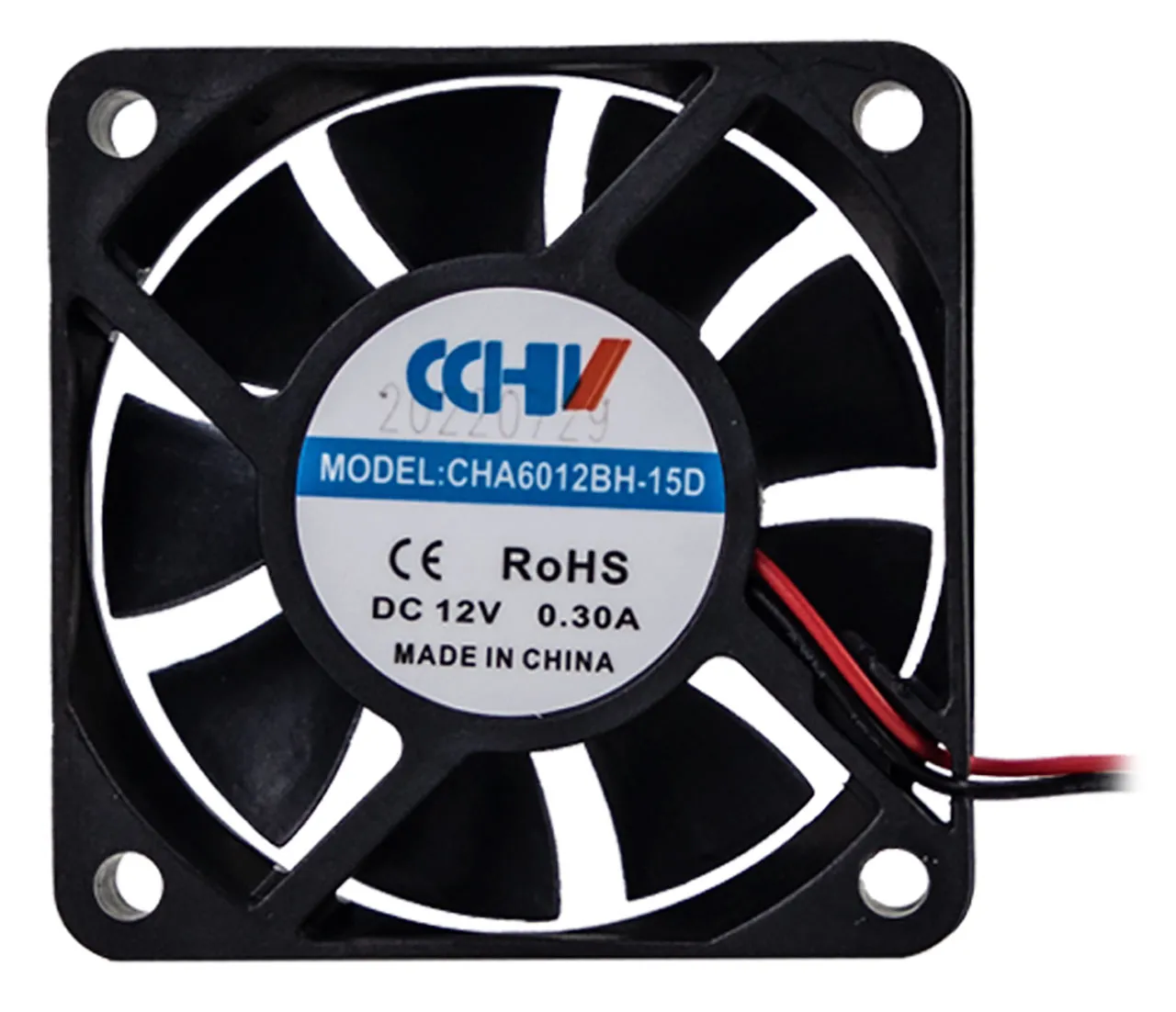

12 VDC Brushless Tubeaxial Fan 60x60x15mm 12" Wires 22.39 CFM

Features

  • Voltage Rating: 12 VDC
  • Length: 60 mm
  • Width: 60 mm
  • Height: 15 mm
  • Air Flow (CFM): 22.39
  • Bearing: Ball
  • Current Rating: 170 mA
  • Power Rating: 2.04 W
  • Agency Approvals: UL, TUV
  • Noise (dBA): 40.5
  • Connection (Leads): 12" Wires
  • Product Type: Fan

Overview

The ball bearing system of the axial fan is designed to operate at high speeds. It has a plastic frame and impeller and a lead wire power connection.

Product Identification

Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Agency Approvals: TUV, UL

Dimensions & Appearance

Depth:15 mm
Height:60 mm
Width:60 mm

Features

Bearing:Ball
Noise (dBA):40.5
Air Flow (CFM):22.39
Voltage Rating:12 VDC
Power Rating:2.04 W
Termination:12" Wires
Current Rating:170 mA
,
