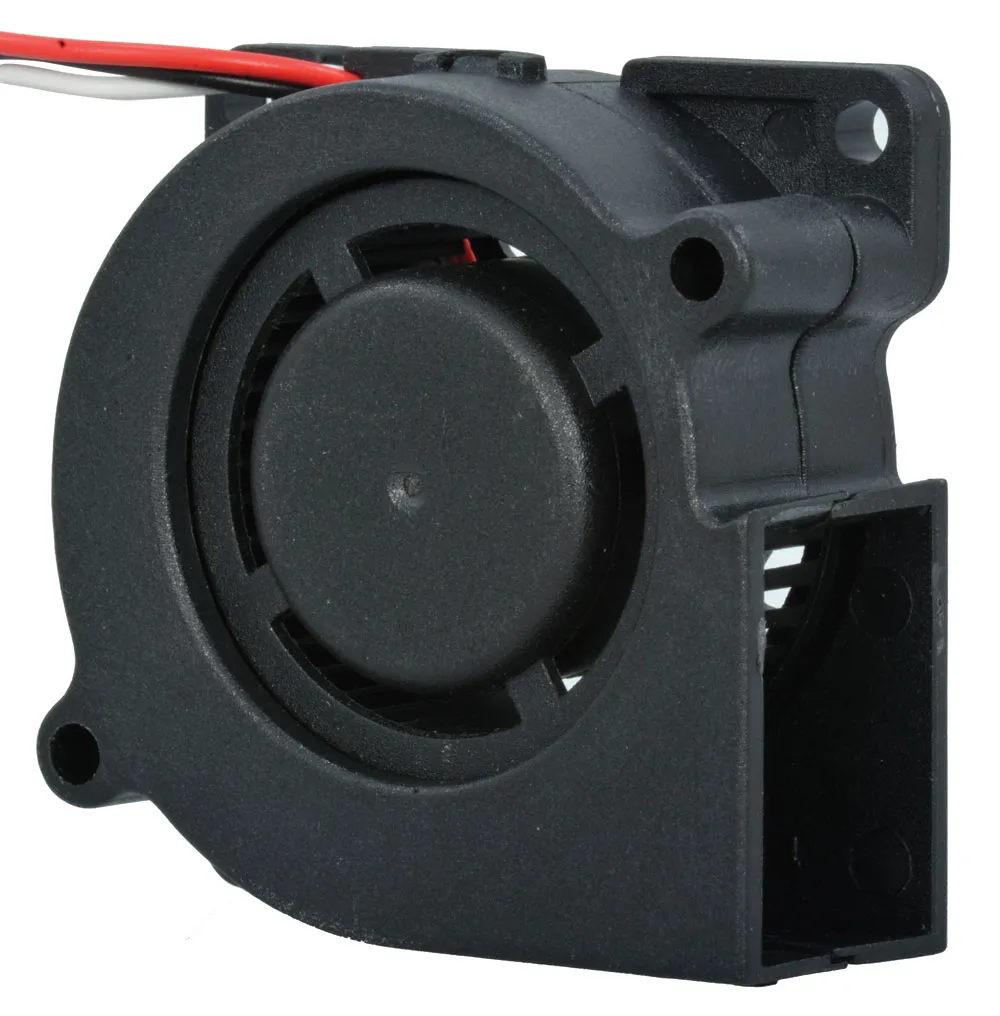

12 VDC 90 mA Blower Fan 4.6 CFM 51 mm x 20 mm Ball

Medium Speed, FG-Tachometer

Specifications:

  • Manufacturer: ADDA
  • Manufacture#: AB5020MB-C03
  • Voltage: 12VDC
  • Current: 90 mA
  • Power: 1 Watt
  • Bearing: Ball
  • Speed (RPM): 5,000
  • Air Flow: 4.6 CFM
  • Dimension: 50 mm x 50 mm x 20 mm
  • Connection: (3) - 12" Lead Wires, Positive, Negative, Tachometer
  • Agency Approvals: UL/CUL/TUV/CE

Product Identification

Product Type:DC Blower Fan
Manufacturer Series:ValuePro

Compliance

Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UL

Dimensions & Appearance

Depth:20 mm
Height:50 mm
Width:50 mm

Features

Bearing:Ball
Maximum Pressure:0.36
Voltage Rating:12 VDC
Power Rating:1.08 W
Speed:5000 rpm
Termination:12" Wires (3)
Noise (dBA):32.5
Air Flow (CFM):4.6
Current Rating:90 mA
,
