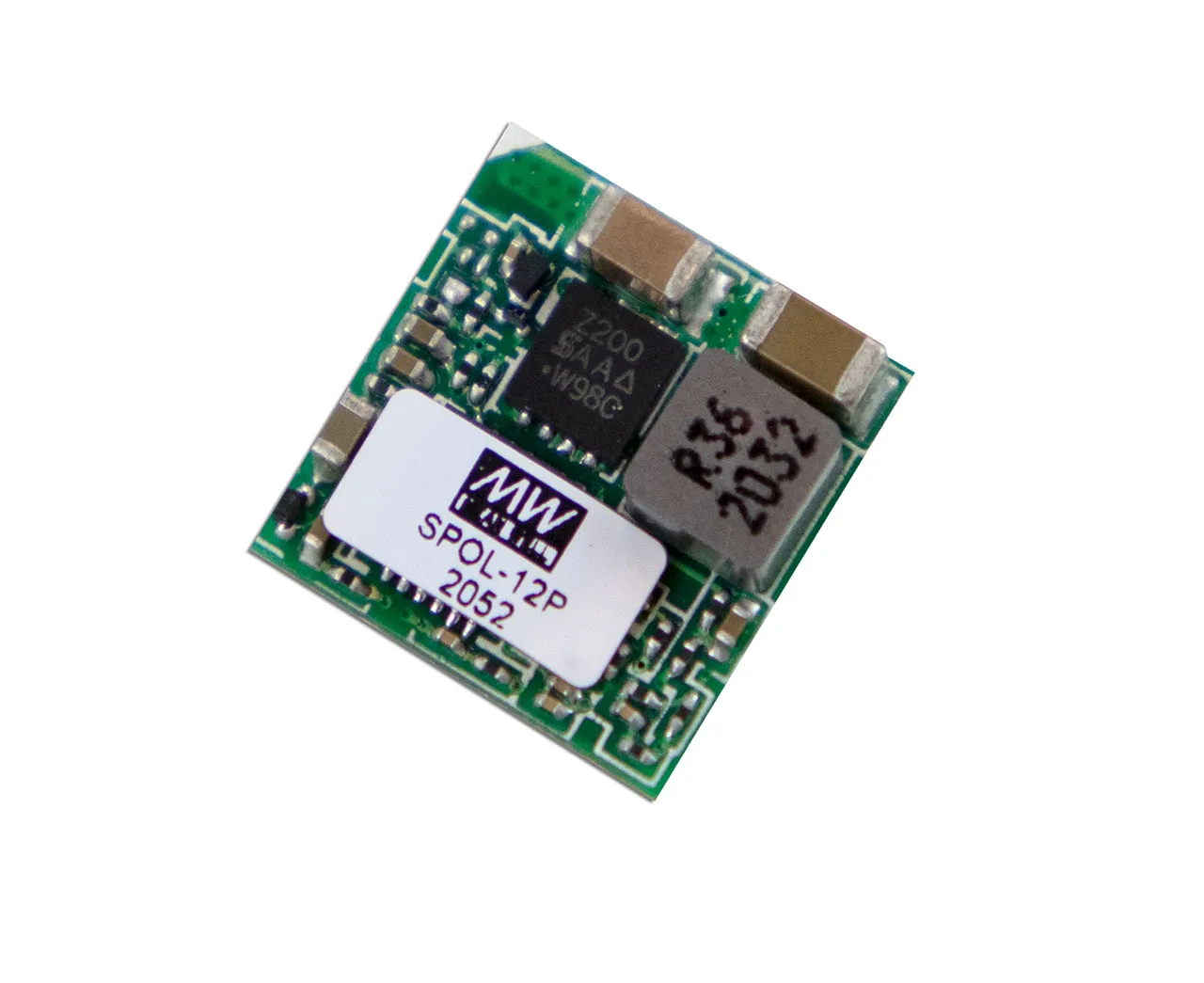

12 Amp SMD Package Non-Isolated Programmable DC-DC POL Regulator Positive Logic

The SPOL-12 series is a 12 Ampere non-isolated programmable point-of-load DC-to-DC converter with SMD package ideal for embedded applications. Its main features include ultra-compact size (12.19*12.19*3.1mm), wide input range 3-14.4Vdc and tunable output voltage from 0.6V to 5.5Vdc via external resistor, wide working temperature -40 to +82°Celsius, remote ON/OFF function and short circuit protection. This makes it very suitable for intermediate bus architectures found in various applications such as industrial, distributed power, telecom and datacom applications.

Features

• Land Grid Array (LGA) surface mount
• Ultra-compact size (12.19 x 12.19 x 3.1mm)
• 3-14.4Vdc wide input range
• Programmable output voltage from 0.6-5.5Vdc
• High efficiency up to 91%@ 12Vin
• Remote ON/OFF control
• Ultra-wide operating temperature range -40 to +90°Celsius
• Protection: Short circuit (Continuous)
• No minimum load required
• 3-year warranty

Applications

• Telecom system
• Server and storage equipment
• Industrial control facility
• Distributed power architectures
• Intermediate bus voltage applications
• Renewable energy
• Battery management systems (BMS)
• Field programmable gate array (FPGA)
