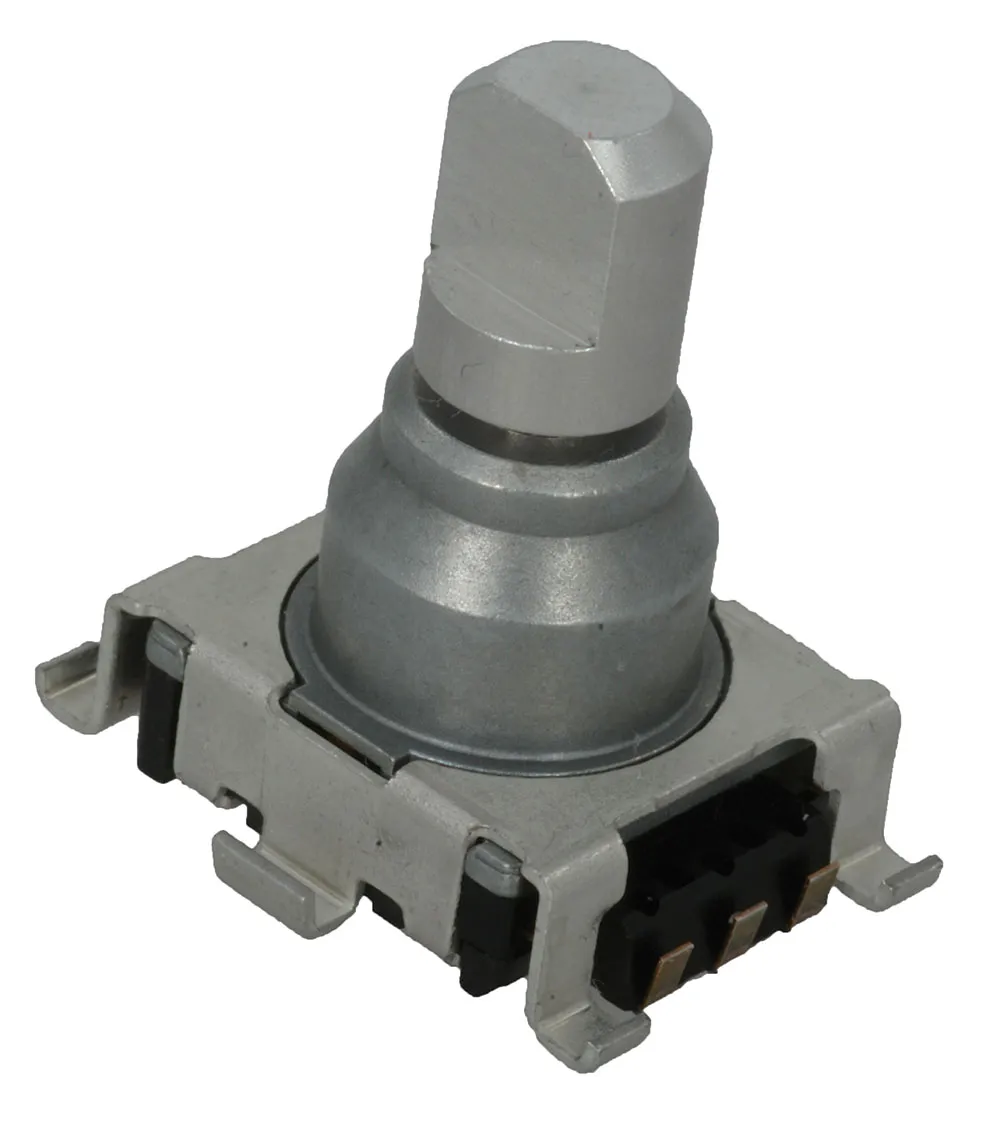

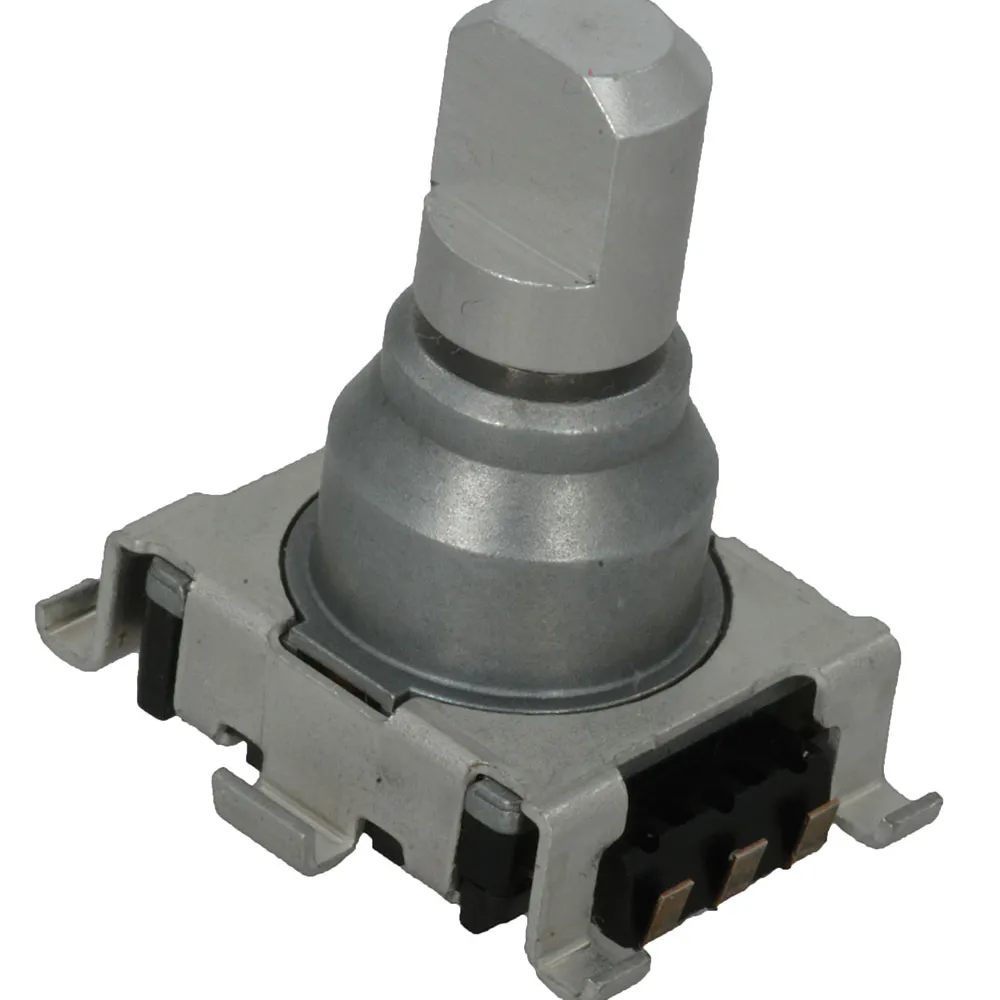

11mm Size Flat Metal Shaft Encoder 9 Detents with Push On Switch (SMD)

Specifications

  • Structure: Reflow (SMD)
  • Actuator configuration: Flat (D-shaft)
  • Shaft length: 20 mm
  • Shaft diameter: 5.975 mm (0.235")
  • Number of detent: 18
  • Number of pulse: 9
  • With Push-ON switch (SPST, ON-OFF, 5V)
  • Travel of push-on switch: 0.5 mm
  • Operating life: 100,000 cycles
  • Rating: 10 mA 5V DC

Product Identification

Additional Feature:With Push-On Switch
Product Type:Rotary Mechanical Encoder

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Shaft Style:D-Shaft
Body Orientation:Vertical
Shaft Diameter:5.98 mm
Mounting:PCB

Input

Input Voltage:5 VDC

Output

Output Type:Incremental

Features

Pulses per Revolution:9
Built In Switch:Yes
Detents:Yes
Termination Style:SMD
,
