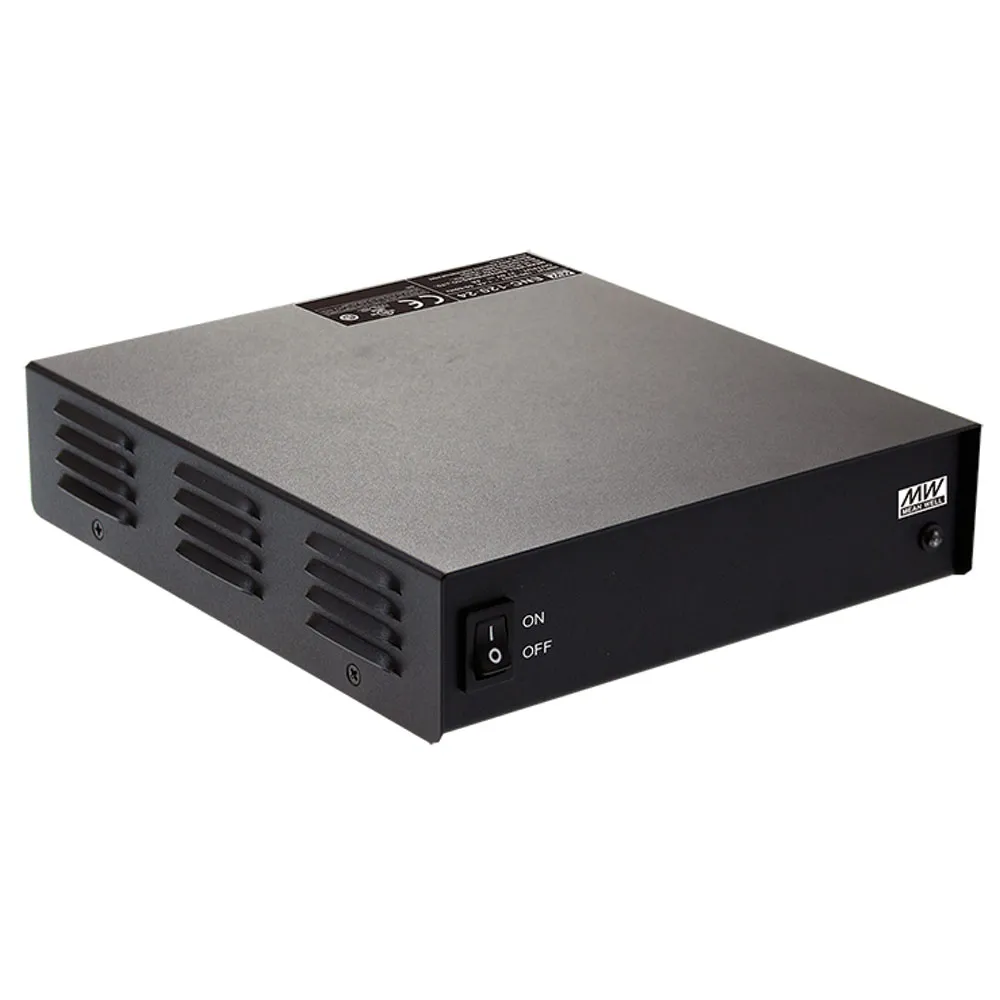

115.2W 57.6V 2A Desktop Single Output Battery Charger

Boost charge voltage: 57.6V
Float charge voltage: 55.2V

Features

  • Charger for lead-acid batteries (flooded, Gel and AGM) and Li-Ion batteries (lithium iron and lithium manganese)
  • Recommended Battery Capacity: 10 to 20 AH
  • Built-in 3 stage programmable charging curve
  • Universal AC input / full range
  • Built-in active PFC function
  • Fanless design, cooling by free air convection
  • Built-in temperature compensation function
  • Protections: Short circuit, over voltage, over temperature, battery under voltage, battery over voltage, battery reverse polarity protection
  • 3 year warranty

Applications

  • Radio system backup solution
  • Electric scooter charger
  • Surveillance system

Product Identification

Additional Feature:For Lead-Acid (flooded /Gel / AGM)
Product Type:Battery Charger
Manufacturer Series:ENC-120

Compliance

Agency Approvals: CB, CE, C-TICK, CUL, EAC, EN, FCC, UKCA, UL

Dimensions & Appearance

Color:Black
Length:1.8 in.
Height:7.6 in.
Width:7 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.25 A

Output

Output Connector Type:Screw Terminal Block
Output Voltage:55.2 VDC
Output Range:36 VDC to 60 VDC
Output Current:2 A

Features

PFC Function:Yes
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
Efficiency:90.5%
Power Rating:115.2 W
,
