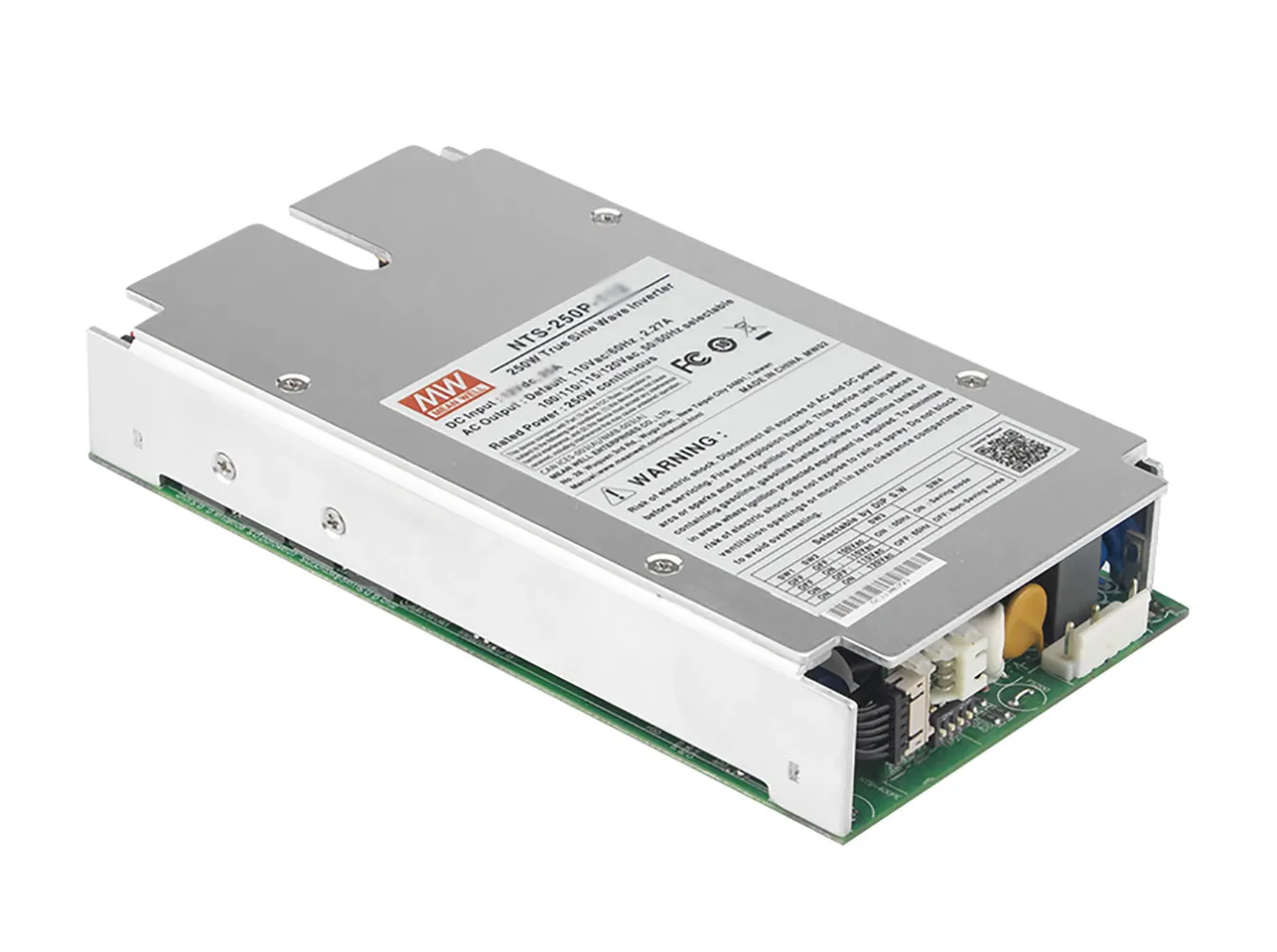

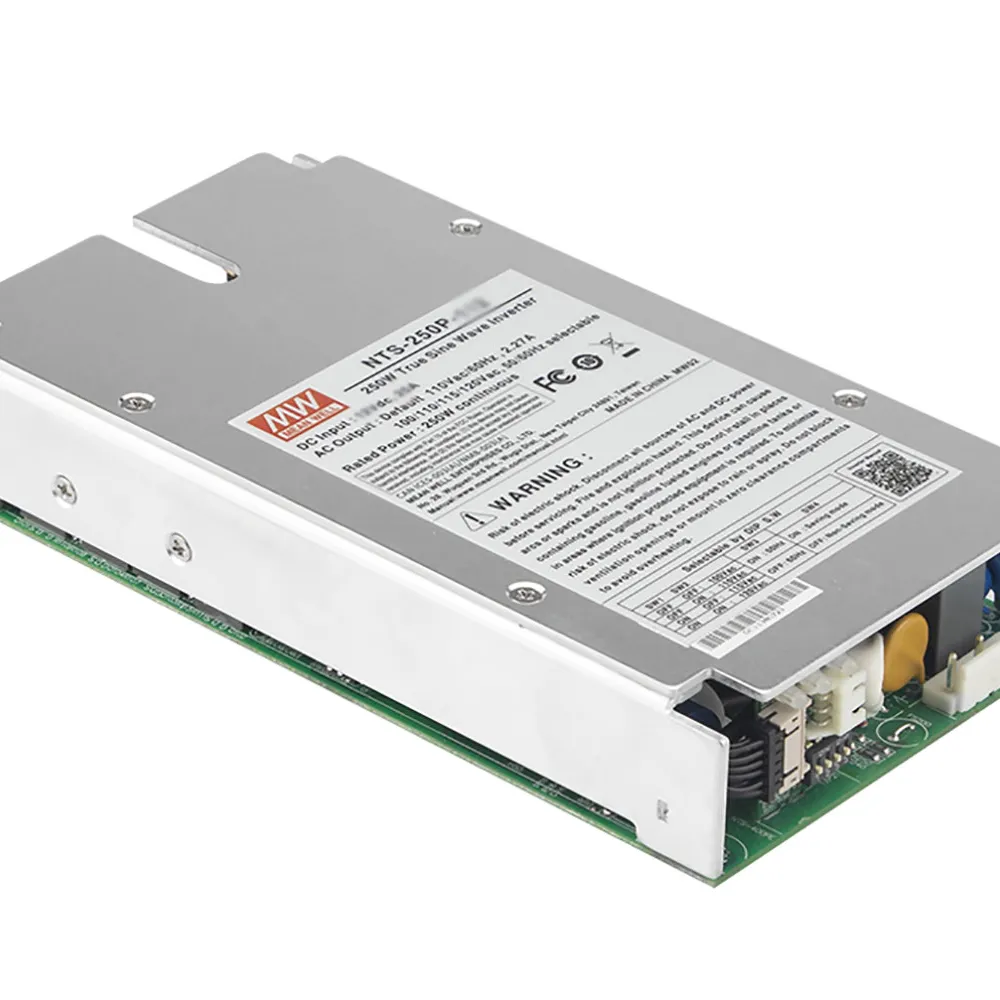

110VAC Output 250W True Sine Wave DC-AC Power Inverter 48VDC 7A Input

Output: 100 / 110 / 115 / 120 VAC (Selectable by DIP switch)
Input: 48 VDC, 7 A

Find out more about MEAN WELL Industrial Grade, Reliable and Durable Charger and Inverters.

Features

  • Compact size and weight
  • True sine wave output (THD <3%)
  • High surge power up to 500W
  • Fanless design, cooling by free air convection
  • AC output voltage and frequency selectable by DIP switch
  • No load dissipation <1.5W max. at standby saving mode
  • -20°C to +70°C wide operating temperature
  • Power ON-OFF remote control
  • Protections:
    • Input: Reverse polarity, DC low alarm, DC low shutdown, Over voltage
    • Output: Short circuit, Overload, Over temperature
  • Battery over discharge protection (low voltage disconnect)
  • Suitable for lead-acid or li-ion batteries
  • Support Tx/Rx for monitoring power inverter status
  • Conformal coating
  • 3-year warranty

Specifications

AC Output:
  • Rated Power: 250 W; 287.5 W (over rated power, 3 min.); 375 W (peak power, 10 sec.); 500 W (surge power, 30 cycles)
  • AC Voltage: 100 / 110 / 115 / 120 VAC, selectable by DIP switch (110VAC is default)
  • Frequency: 50 / 60 Hz, selectable by DIP switch (60 Hz is default)
DC Input
  • DC Voltage: 48 VDC
  • Voltage Range (typ.): 40 VDC to 66 VDC
  • DC Current: 7 A
  • Efficiency: 92%
  • Battery Types: Lead Acid or Li-Ion
  • Size: 7.32"L x 3.95"W x 1.26"H (186 x 100.5 x 32mm)
  • Agency Approvals: CB, CE, FCC, EN, EAC, UKCA

Applications

  • Mobile device
  • Home and office appliance
  • Portable equipment
  • Vehicle
  • RV
  • Yacht
  • Off-grid solar power system
  • Wireless network
  • Telecom or datacom system

Product Identification

Product Type:True Sine DC-AC Inverter
Manufacturer Series:NTS-250

Compliance

Agency Approvals:CB, CE, FCC, EN, EAC, UKCA

Dimensions & Appearance

Color:Silver
Height:1.26 in.
Width:3.96 in.
Length:7.32 in.
Mounting:Chassis

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:48 VDC
Input Voltage Range:40 VDC to 66 VDC
Maximum Input Current:7 A

Output

Number of Outputs:1
Output Connector Type:See Datasheet
Output Voltage:100 VAC, 110 VAC, 115 VAC, 120 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:92%
Power Rating:250 W
,
