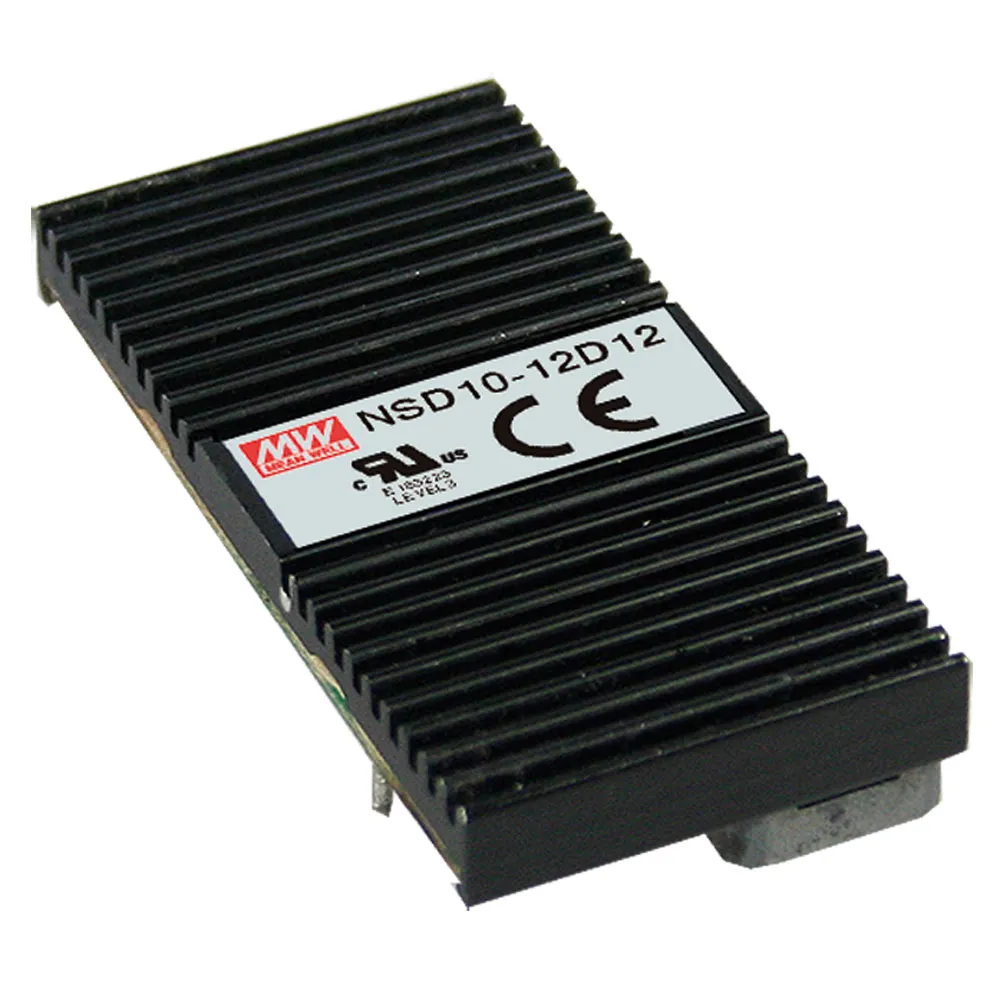

10W Regulated Dual Output DC-DC Converter


Output: ±12 Volts @ 0.42 Amps

Features:
  • Input voltage range: 9.8-36VDC
  • Built-in EMI filter
  • Built-in remote on-off control
  • Cooling by free air convection
  • 100% full load burn-in test
  • 1000VDC I/O isolation
  • Efficiency: 77%
  • Compact size: 2.0"L x 1.0"W x 0.394"H
  • Weight: 0.7oz. (20 grams)
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Regulated Dual Output SMPS
    Manufacturer Series:NSD10

    Dimensions & Appearance

    Height:0.394 in.
    Width:1 in.
    Length:2 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Voltage:12 VDC
    Input Voltage Range:12 VDC

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):-12 VDC
    Output Voltage:12 VDC
    Output Current:0.42 A

    Features

    Pins:6
    Power Rating:10 W
    ,
