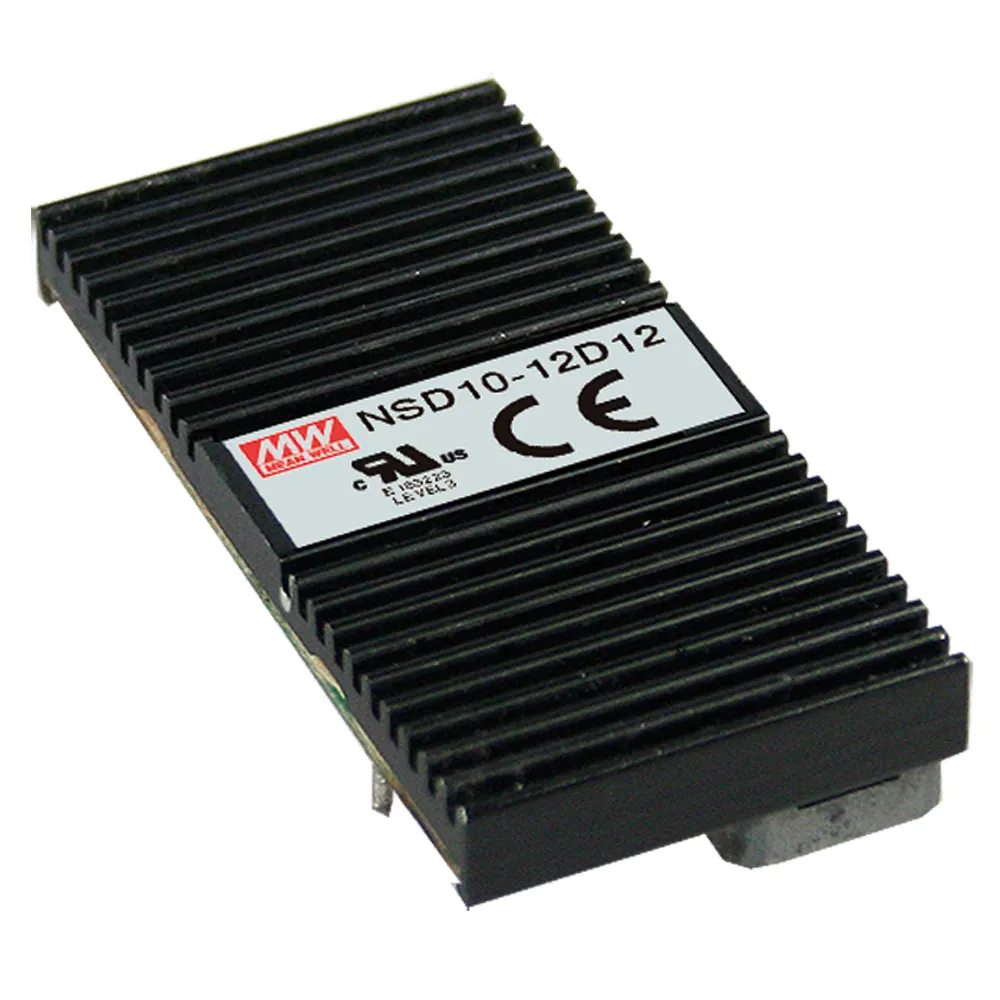

10W Regulated Dual Output DC-DC Converter


Output: ±12 Volts @ 0.42 Amps

Features:
  • Input voltage range: 22-72VDC
  • Built-in EMI filter
  • Built-in remote on/off control
  • Protection: Short-circuit, overload, over-voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • 1000VDC I/O isolation
  • Efficiency: 77%
  • Compact size: 2.0"L x 1.0"W x 0.394"H
  • Weight: 0.7 oz. (20 grams)
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Regulated Single Output Power Supply SMPS
    Manufacturer Series:NSD10

    Compliance

    Agency Approvals: CE, CUL, EAC, EN, UL, UL, CUL, CE, EN, EAC

    Dimensions & Appearance

    Color:Black
    Height:0.394 in.
    Length:1 in.
    Width:2 in.
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Voltage Range:22 VDC to 72 VDC
    Input Voltage:48 VDC
    Maximum Input Current:0.4 A

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):-12 VDC
    Output Voltage:12 VDC
    Output Connector Type:PC Pins
    Output Current:0.42 A

    Features

    Pins:6
    Efficiency:77%
    Power Rating:10 W
    ,
