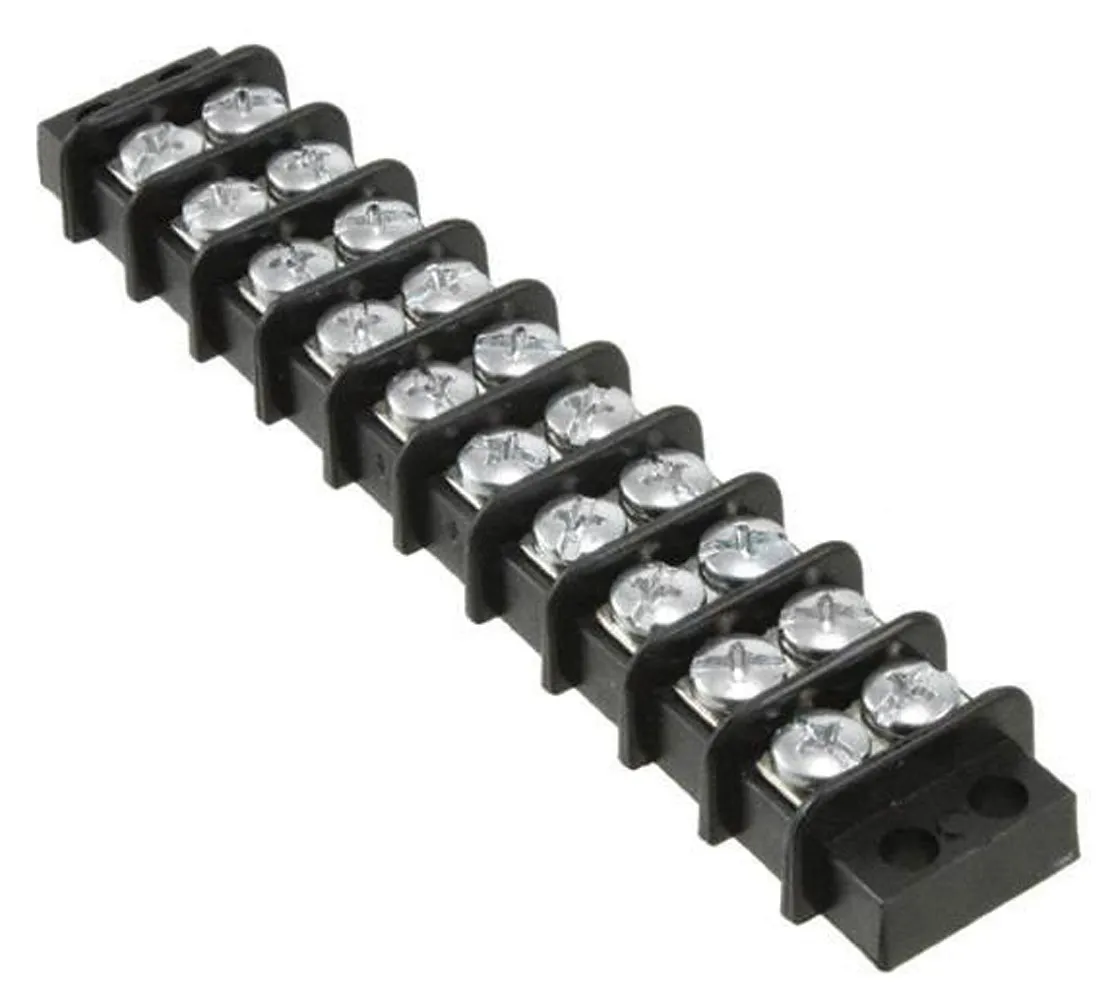

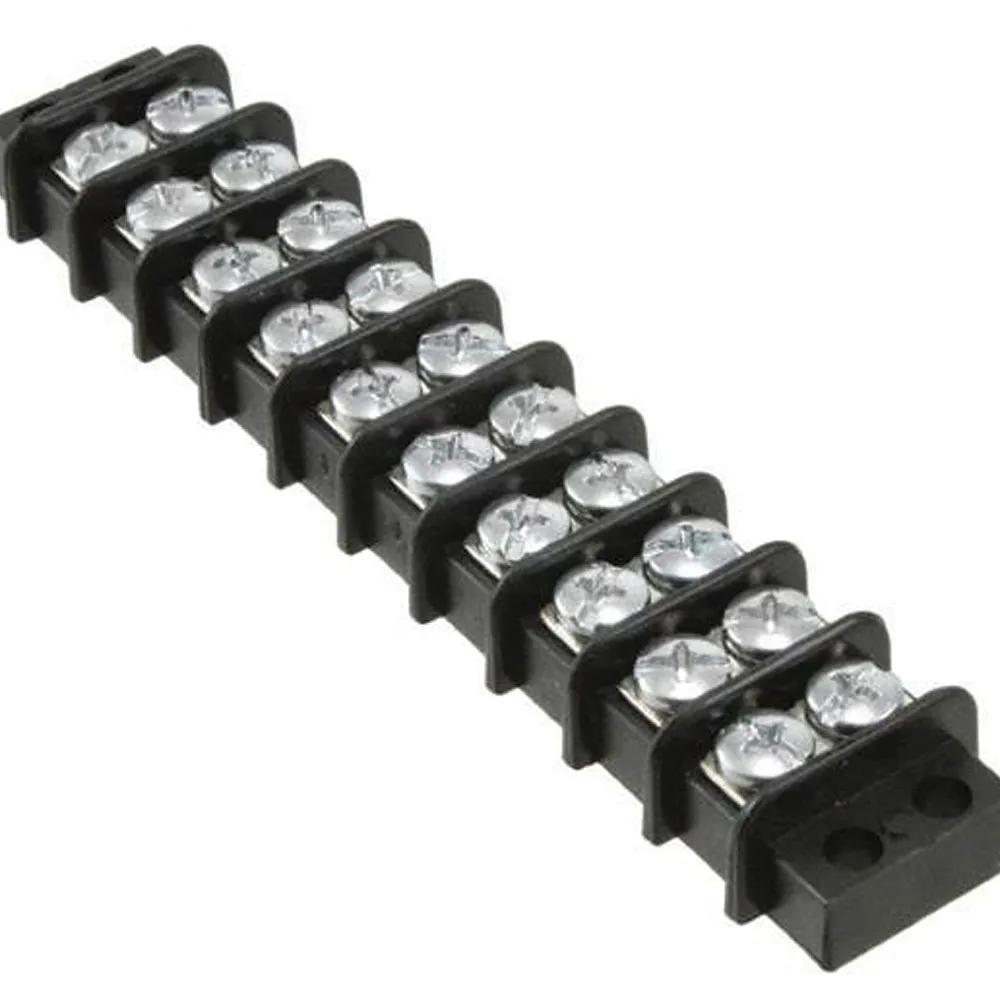

10-Position Double Row Barrier Strip Terminal Block 9.53mm Pitch 15A

20 Contacts, 10 Positions

These series 77 screw terminals are ultrasonically welded into the thermoplastic insulator. The terminal cannot be twisted or rotated even under excessive force.

Specifications

  • Positions: 10
  • Pitch: 0.375" (9.53mm)
  • Low profile
  • Current rating: 15A
  • Double row
  • Terminals: Brass, nickel-plated
  • Insulator: Thermoplastic, UL94V0
  • Screws: #6-32 BH, Phillips/Slotted, Steel/Zinc chromate-plated
  • Block length: 111.9 mm
  • Block width: 18.3 mm
  • Block height: 11.2 mm
  • Sealed

Product Identification

Manufacturer Series:Beau 38770
Product Type:Dual Row Barrier Strip

Dimensions & Appearance

Body Orientation:Straight
Mounting:Chassis, Panel
Depth:18.3 mm
Length:111.9 mm

Operating conditions

Maximum Operating Temperature:110°C
Minimum Operating Temperature:-40°C

Features

Number of Rows:2
Bottom Termination:Closed Bottom w/ Flange
Housing Color:Black
Contact Material:Brass
Top Termination:Screw, 6-32
Number of Positions:10
Contact Plating:Nickel
Pitch:0.375 in., 9.53 mm
Housing Material:Thermoplastic
Wire Gauge (AWG):14-22
Voltage Rating:300 VAC
Current Rating:15 A
,
