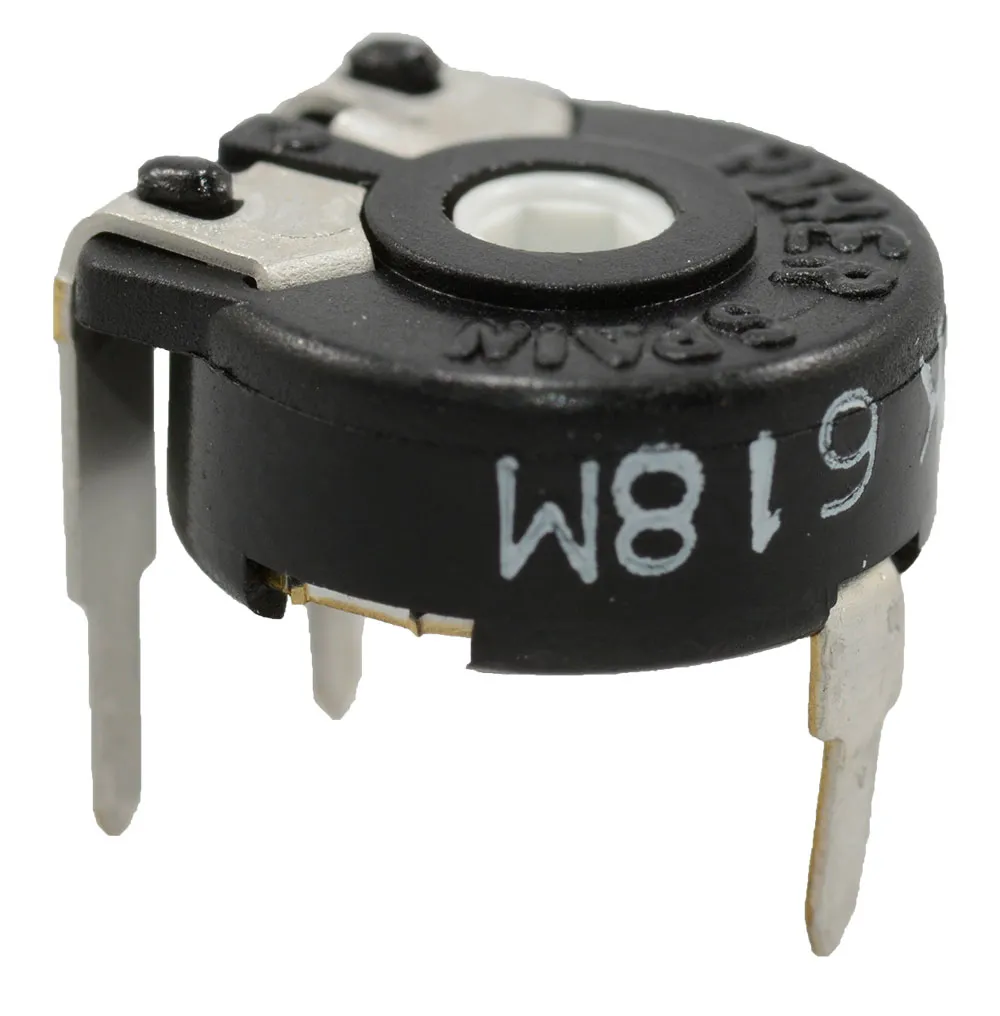

10mm Carbon Trimmer Potentiometer 25K Ohm 0.15W PC Pins 1 Turn Top Adjust

Specifications

  • Resistance: 25K ohm (25 KOhm / 25,000 ohms)
  • Power (Watts): 0.15W (150mW)
  • Tolerance: ±20%
  • Temperature Coefficient: ±300ppm/°C
  • Number of Turns: 1
  • Adjustment Type: Top Adjustment
  • Resistive Material: Carbon
  • Mounting Type: Through Hole, horizontal
  • Termination Style: PC Pins
  • Size: Round - 0.406" Dia x 0.189" H (10.30mm x 4.8mm)

Applications

  • Automotive
  • Appliance control - sensor

Product Identification

Manufacturer Series:PT10
Product Type:Trimmer Horizontal

Dimensions & Appearance

Mounting:Through Hole

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:75°C

Features

Number of Turns:1
Resistive Element Material:Carbon
Taper:Linear
Actuator Orientation:Side
Resistance (Ohm):25000
Power Rating:0.15 W
Tolerance:20%
Termination Style:Pins
Resistance:25 KOhm
Actuator Type:Side Slot
,
