10KW 230 VDC 46.3A 3-Phase 3-Wire High-Efficiency Digital Power Supply

Features

• 3-phase 3-wire without neutral / 340 to 530 VAC wide input range
• High efficiency up to 96.5%
• Water cooling option (HS-684 cooling plate sold separately)
• Built-in CANBus protocol
• Output voltage and constant current level programmable
• Active current sharing up to 4 units (40 KW)
• Built-in remote ON-OFF control, auxiliary power, alarm signal
• Protections: Short circuit, overload, over voltage, over temperature, fan fail
• 5-year warranty

Overview

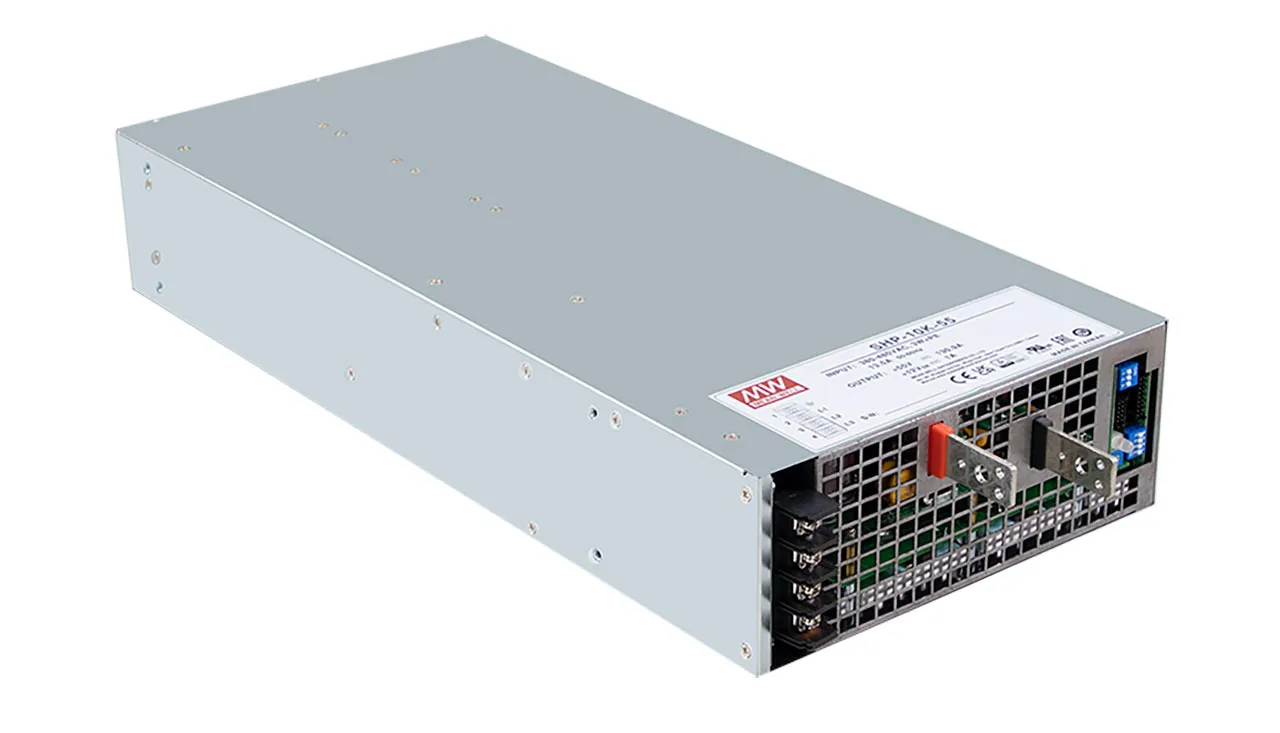

The SHP-10K-HV is a 10KW 3 phase 3-wire input AC/DC power supply. This series operates for the wide range three phase AC input (3 phase 3 wire / 340 to 530 VAC) neutral is not needed and offers the higher voltage outputs most in demand by various industries. This model supports water cooling and can work at ambient temperatures up to 70°C. Moreover, SHP-10K-HV provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and communication protocols that will not only satisfy market demand, but also enhance automation purposes.

Learn More about MEAN WELL High Voltage DC Output Power Supply Solutions

Specifications

• DC Voltage: 230 VDC
• Current (factory default): 43.5 A
• Current Range: 0 to 46.3 A
• Rated Power: 10,000 W
• Full Power Voltage Range: 216 to 260 VDC
• Input Voltage Range: 3-phase 3-wire / 340 VAC to 530 VAC @ 47-63 Hz

Applications

• Energy & power system for automation
• UV or laser diode application
• Electrolysis system
• Laser processing machine
• Burn-in facility
• RF application
• EV charging station
