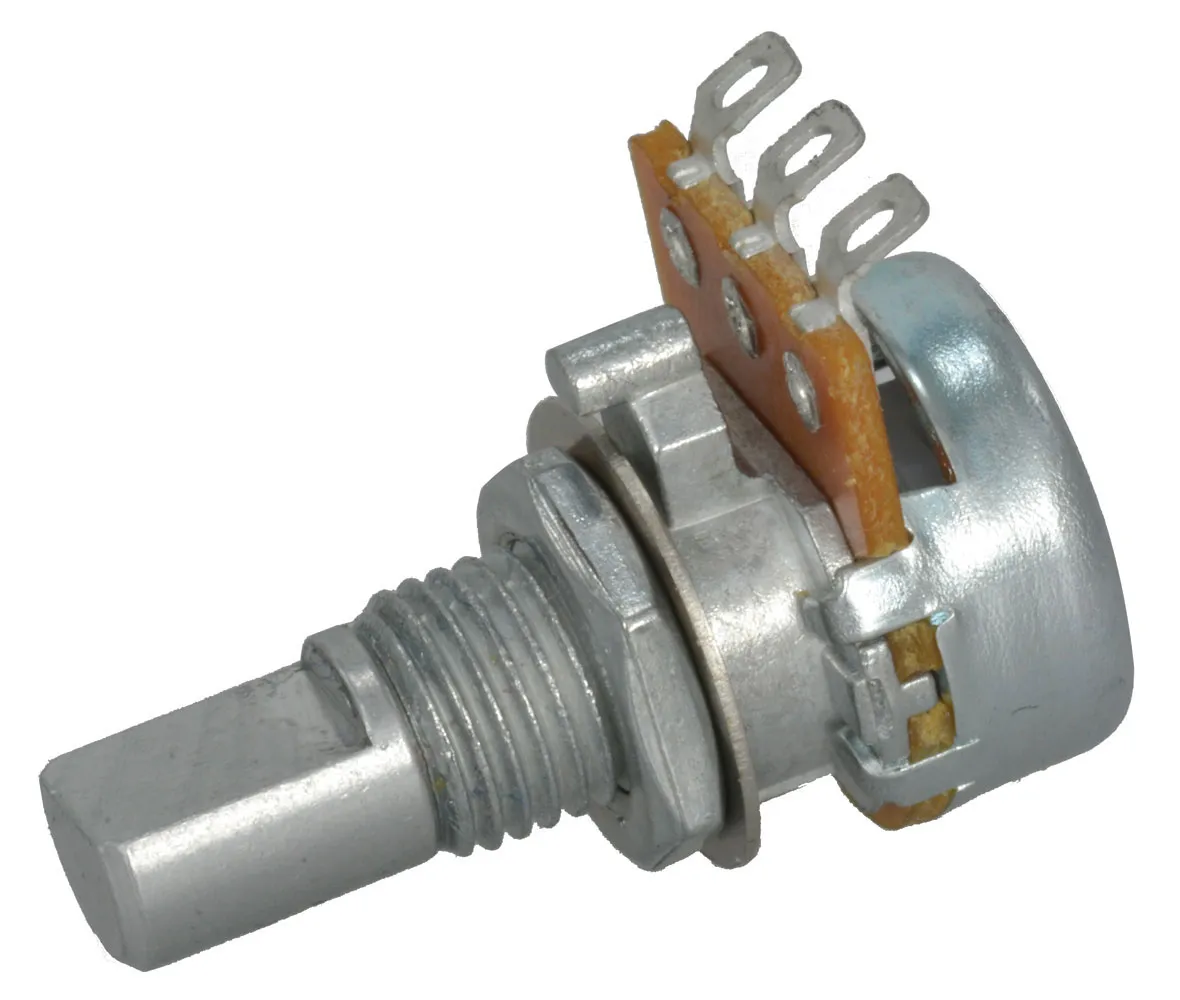

40mW 12mm 10K Ohm Audio Taper Potentiometer

Features

  • Shaft diameter: 0.236 in
  • Shaft length: 0.590 in
  • Rated Voltage: 100V
  • Rotational angle: 300°(±5°)
  • Termination Style: Solder Lugs
  • Rotation life: 15,000 cycles
  • Tolerance: 5%

Product Identification

Manufacturer Series:RV120F

Dimensions & Appearance

Shaft Diameter:0.235 in., 6 mm
Shaft Length:0.590 in.
Shaft Style:D
Mounting:Panel Mount
Body Diameter:12 mm

Features

Ganging Number:1
Number of Turns:1
Taper:Audio
Power Rating:0.04 W
Tolerance:5%
Resistance (Ohm):10000
Resistance:10 KOhm
Termination Style:Solder, Panel Mount
Voltage Rating:100 V
,
