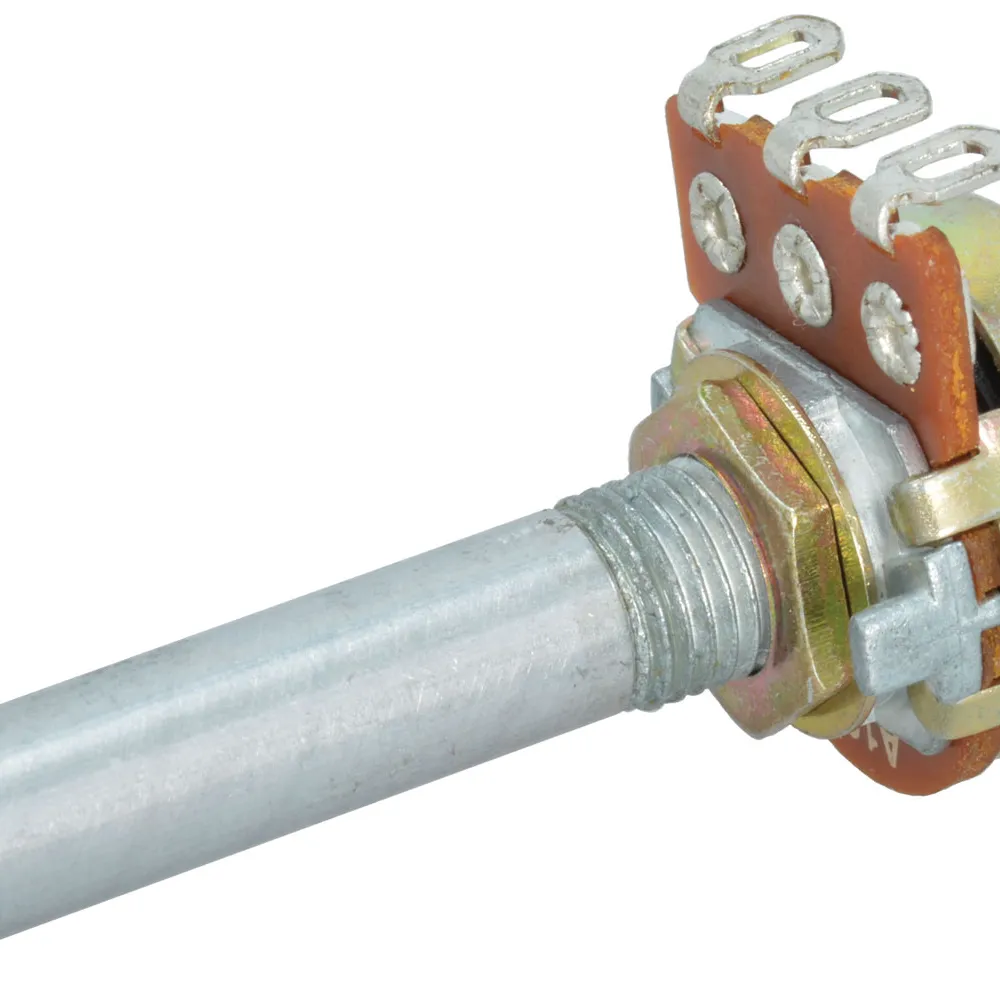

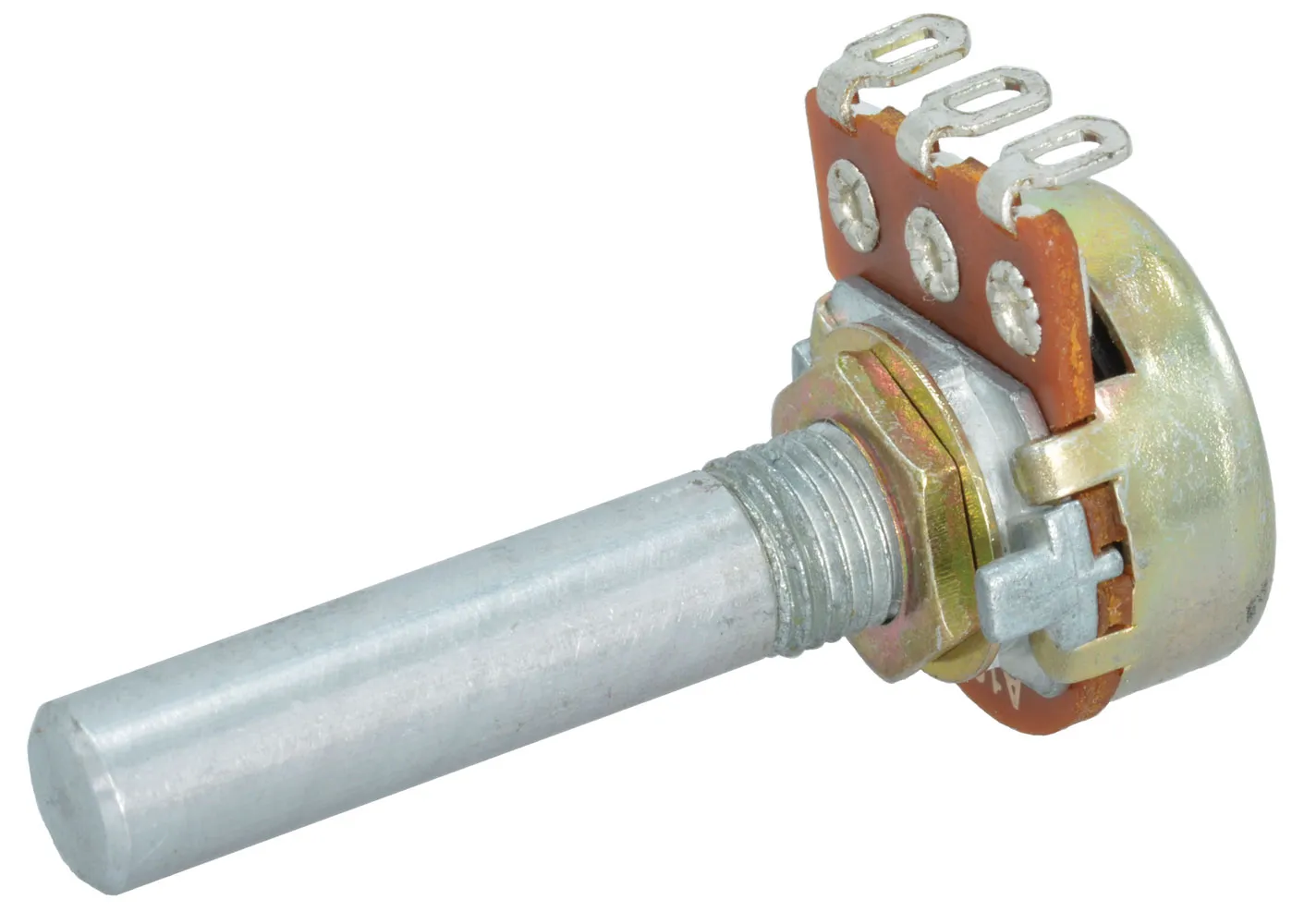

60mW 16mm 10k Ohm Audio Taper Potentiometer
Features
- Shaft diameter: 0.236 in
- Shaft length: 1.180 in
- Rated Voltage: 150VAC
- Termination Style: Solder Lugs
- Mounting: Panel Mount
- Insulation resistance: 100MΩ @ 500VDC
- Rotation Angle: 300° (±5%)
- Tolerance: 20%
Product Identification
Manufacturer Series:RV16AF
Dimensions & Appearance
Shaft Style:Round
Shaft Diameter:0.236 in., 6 mm
Mounting:Panel Mount
Body Diameter:16 mm
Shaft Length:1.180 in.
Features
Ganging Number:1
Number of Turns:1
Resistive Element Material:Carbon
Taper:Audio
Power Rating:0.06 W
Resistance (Ohm):10000
Tolerance:20%
Resistance:10 KOhm
Termination Style:Solder, Panel Mount
Voltage Rating:150 V
