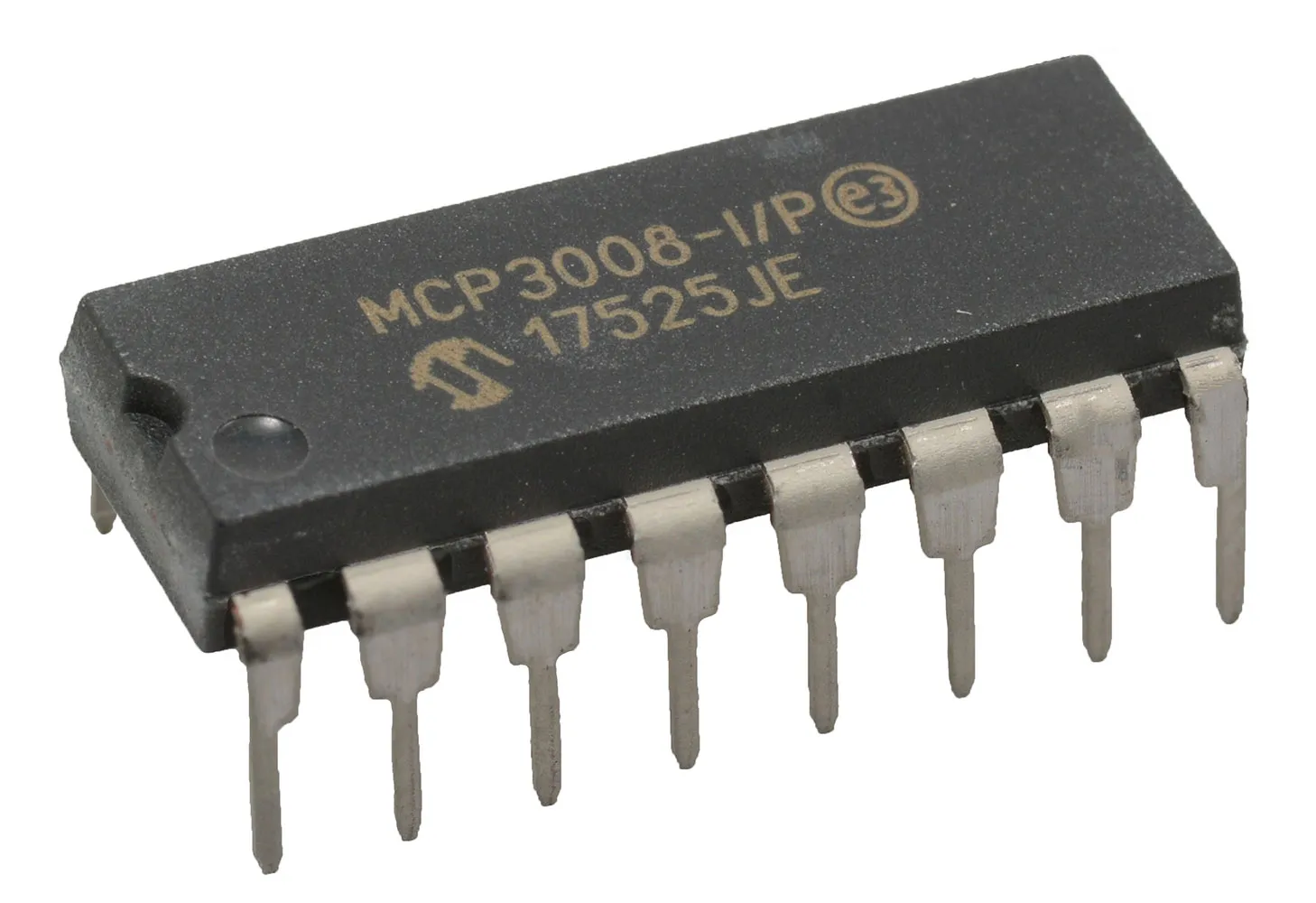

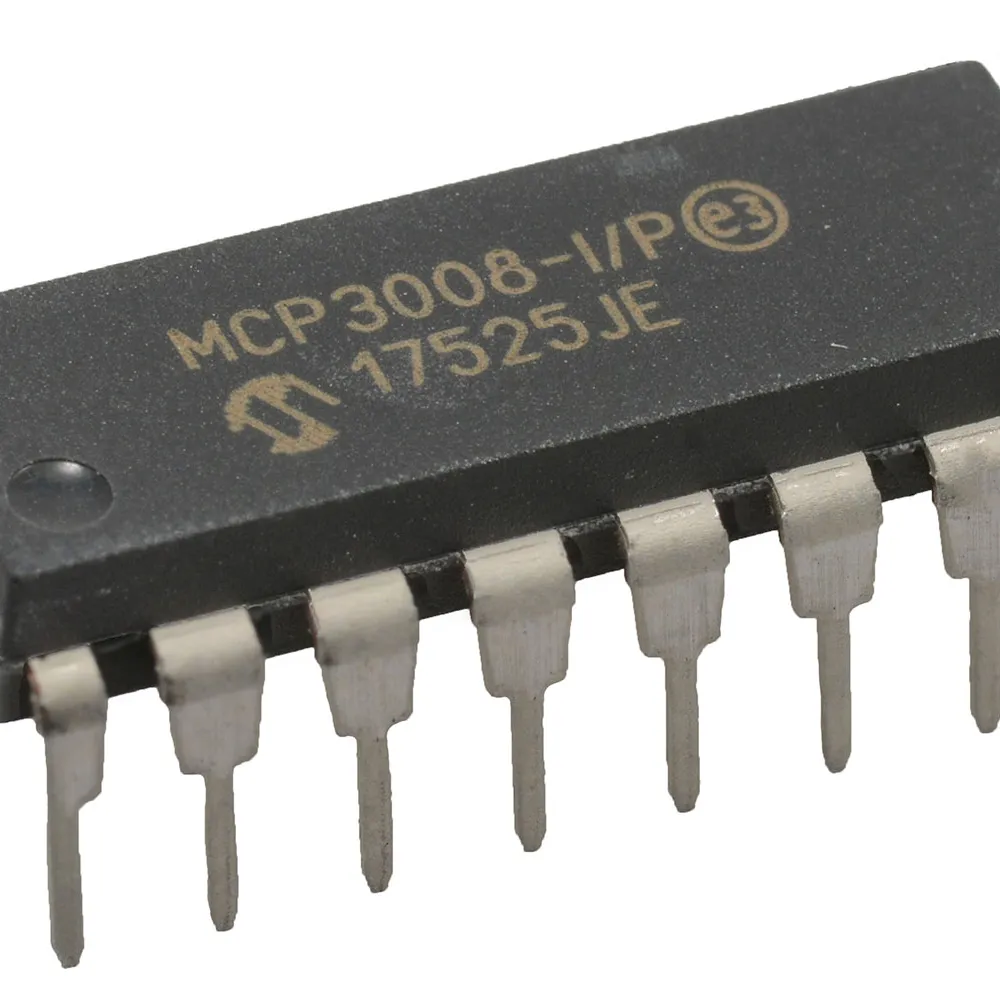

10-Bit Analog to Digital Converter 4, 8 Input 1 SAR DIP-16

Specifications

• Number of Bits: 10
• Sampling Rate (Per Second): 200 k
• Number of Inputs: 4, 8
• Input Type: Pseudo-Differential, Single Ended
• Data Interface: SPI
• Configuration: MUX-S/H-ADC
• Ratio - S/H:ADC: 1:1
• Number of A/D Converters: 1
• Architecture: SAR
• Reference Type: External
• Voltage - Supply, Analog and Digital: 2.7 V to 5.5 V
• Operating Temperature: -40°C to 85°C
• Package: 16-DIP (0.300", 7.62mm)
• Mounting Type: Through Hole
• Base Number: MCP3008
