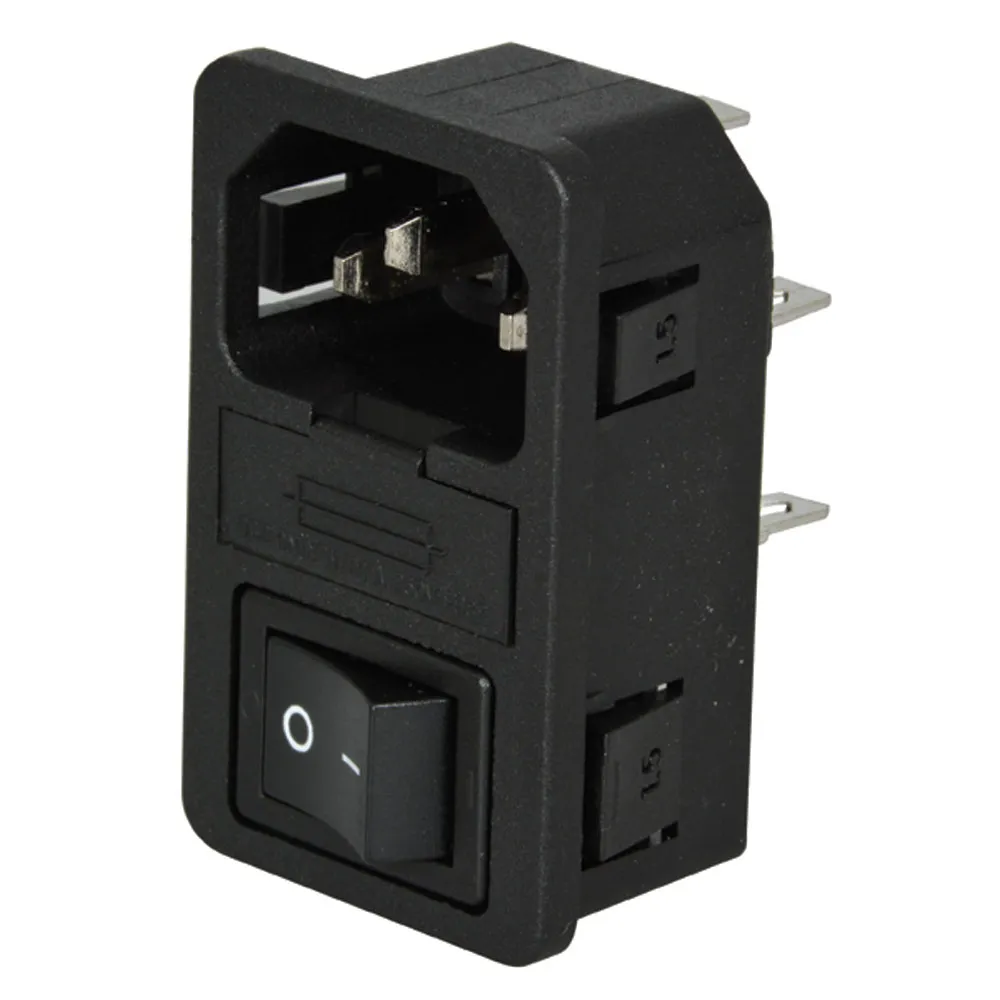

10A Male AC Receptacle 1.50mm Panel with SPR

Adam Tech IEC & Mini IEC Series AC Inlets and Outlets are primary power receptacles designed, manufactured, tested and approved to UL, CSA, VDE and other applicable international specifications including IEC-60320 and CEE-22. Adam Tech offers a wide variety of body styles, shapes and orientations to accommodate most class I & II applications with two or three blade contacts in both IEC and Mini-IEC configurations. Mounting choices include screw holes and snap-in versions and four termination styles.

Features:

• SPR - Switch Polarization Reversal
• Insulator: Polycarbonate or nylon 66, glass filled, rated UL94V-0
• Contacts: Phosphor Bronze or Brass
• Plating: Nickel over copper underplate
• Rating: 10A @ 250VAC
• Snap-in
• Panel mount size: 0.059" (1.50mm)
• 5x20mm fuse (Recommend 10A 5x20mm fuse p/n: 2161668)
• Includes spare fuse holder
• Dimensions: 1.200"W x 1.968"H x 0.767"D
