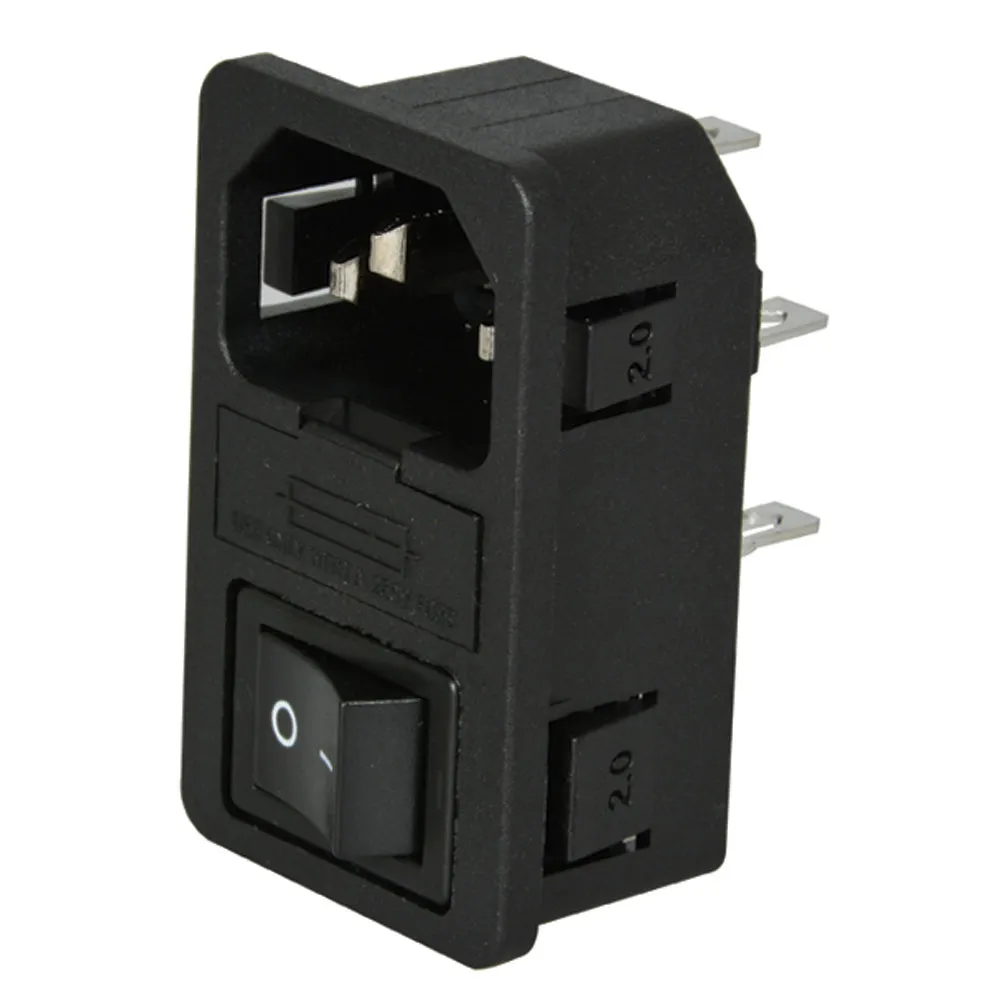

10A Male AC Receptacle 2mm Panel

Adam Tech IEC & Mini IEC Series AC Inlets and Outlets are primary power receptacles designed, manufactured, tested and approved to UL, CSA, VDE and other applicable international specifications including IEC-60320 and CEE-22. Adam Tech offers a wide variety of body styles, shapes and orientations to accommodate most class I & II applications with two or three blade contacts in both IEC and Mini-IEC configurations. Mounting choices include screw holes and snap-in versions and four termination styles.

Features:

  • Built-in ON/OFF switch
  • Insulator: Polycarbonate or nylon 66, glass filled, rated UL94V-0
  • Contacts: Phosphor Bronze or Brass
  • Plating: Nickel over copper underplate
  • Rating: 15A @ 250VAC (IEC-UL/CSA); 10A @ 250VAC (VDE)
  • Snap-in
  • Panel thickness mount size: 0.079" (2.00mm)
  • 0.187" quick connect terminals
  • 5x20mm fuse is not included, use Jameco Part #2161668, 10A fuse or similar
  • Dimensions: 1.200"W x 1.968"H x 0.767"D
  • Includes spare fuse holder

Product Identification

Product Type:Male Blades

Dimensions & Appearance

Mounting Hole:Rectangular - 27.30mm x 46.90mm
Body Orientation:Straight
Mounting Type:Panel Mount, Snap-In

Features

Filtered:No
Fused:Yes
Termination:0.187" Quick Connect
Contact Gender:Male
Connector Type:C14
Max Panel Thickness:2 mm, 0.079 in.
Switch Function:Switched
Voltage Rating:250 VAC
Current Rating:10 A
,
